  • I like where this is going.
    Life is short. Be a do'er and not a shoulda done'er.
    1969 Galaxie 500 https://bangshift.com/forum/forum/ba...ild-it-s-alive
    1998 Mustang GT https://bangshift.com/forum/forum/ba...60-and-a-turbo
    1983 Mustang GT 545/552/302/Turbo302/552 http://www.bangshift.com/forum/forum...485-bbr-s-83gt
    1973 F-250 BBF Turbo Truck http://www.bangshift.com/forum/forum...uck-conversion
    1986 Ford Ranger EFI 545/C6 https://bangshift.com/forum/forum/ba...tooth-and-nail

    Comment


    • I'm too purist to do that, but.... with the exception of the tubular intake and Lightning cover, a lot of folks wouldn't be able to spot it at first glance without being told. Off the top of my head there is a lot of maybe and probably.

      It's a speed density computer that could be tuned with a chip - the VE tables might be off a bit, but who knows, maybe it just runs a little rich. They both used 19 pound injectors. The cam isn't big enough to worry me, my '88 302 F150 ran fine with an HO cam, long tubes, and a stock tune. Explorer rollers are 10 degrees less intake duration than the HO, so at least the cam is probably not an issue.

      You would probably have to get a Mustang / F150 type distributor for the Explorer, and if it's very late model, you would have to do something about EGR and AIR/TAB/TAD junk. Late model heads aren't plumbed for AIR and the intakes don't have external EGR. The computer will probably not like the expected changes when it opens valves that don't do anything. I can't remember if my 2000 Explorer engine even had an air pump.

      Exhaust may or may not need length changes.

      E4od / C6 flywheel in 50oz style unless you're keeping the E4od and I'll say this, those suckers are heavy. A C4 in the Mustang would be worth a tenth because it's 100 pounds lighter. Apparently there are changes in the strategy for an E4od and the 4r70w, so that may be a tuning problem if you put anything but an E4od in there.

      Radiator hoses may need length changes and you'll want the FEAD junk from a 302 truck probably.

      '95 or '96 model 49 state 460 and computer from an E4od truck with 4.10's would probably be an easier swap.








      Flying south, with a flock of bird dogs.

      Comment


      • That sounds like way more work than I want to do!

        Yesterday morning I slipped out to the shop for a half hour or so. The cold pipe that goes from the outlet of the intercooler to the TB is a u-bend cut in half and rotated about 150° the bend it not crimped but it's not round either which make the fitment not as good. I used the tube expander to round it out then because I didn't cut it straight set it on a grinder with a flap wheel to even it out. I can now rotate any angle and it fits nicely. Just need to mark it and weld it.

        Cheap materials and the incorrect tool for the job make it take longer.
        http://www.bangshift.com/forum/forum...-consolidation
        1.54, 7.31 @ 94.14, 11.43 @ 118.95

        PB 60' 1.49
        ​​​​​​

        Comment


        • Originally posted by Russell View Post
          ...Cheap materials and the incorrect tool for the job make it take longer.
          Most anyone can do a nice job with the best tools - it takes extra effort and SKILL to do it with less!

          Comment


          • Beagle's
            I would like to know where you live, plan a trip Just So You Can TUNE Up the Marrakesh Express.
            It's Running, but Not Just Right Yet, and I am only getting 10 mpg, the Shaggin Wagon does better at 11-12 with a 460 4bbl

            Comment


            • It's time to list the distraction for sale. I played the lottery a couple times and didn't win so it's time to go! I have enjoyed having the Lightning. I drove it to work, grocery store, to haul the trash a few times. I have taken my wife on date night, dad for a ride (he had a 70 F100 when I was a kid). Today I took the kids to get slushies. Other than football tailgate I think it's done everything I would like to do with it.
              ​​​​​​

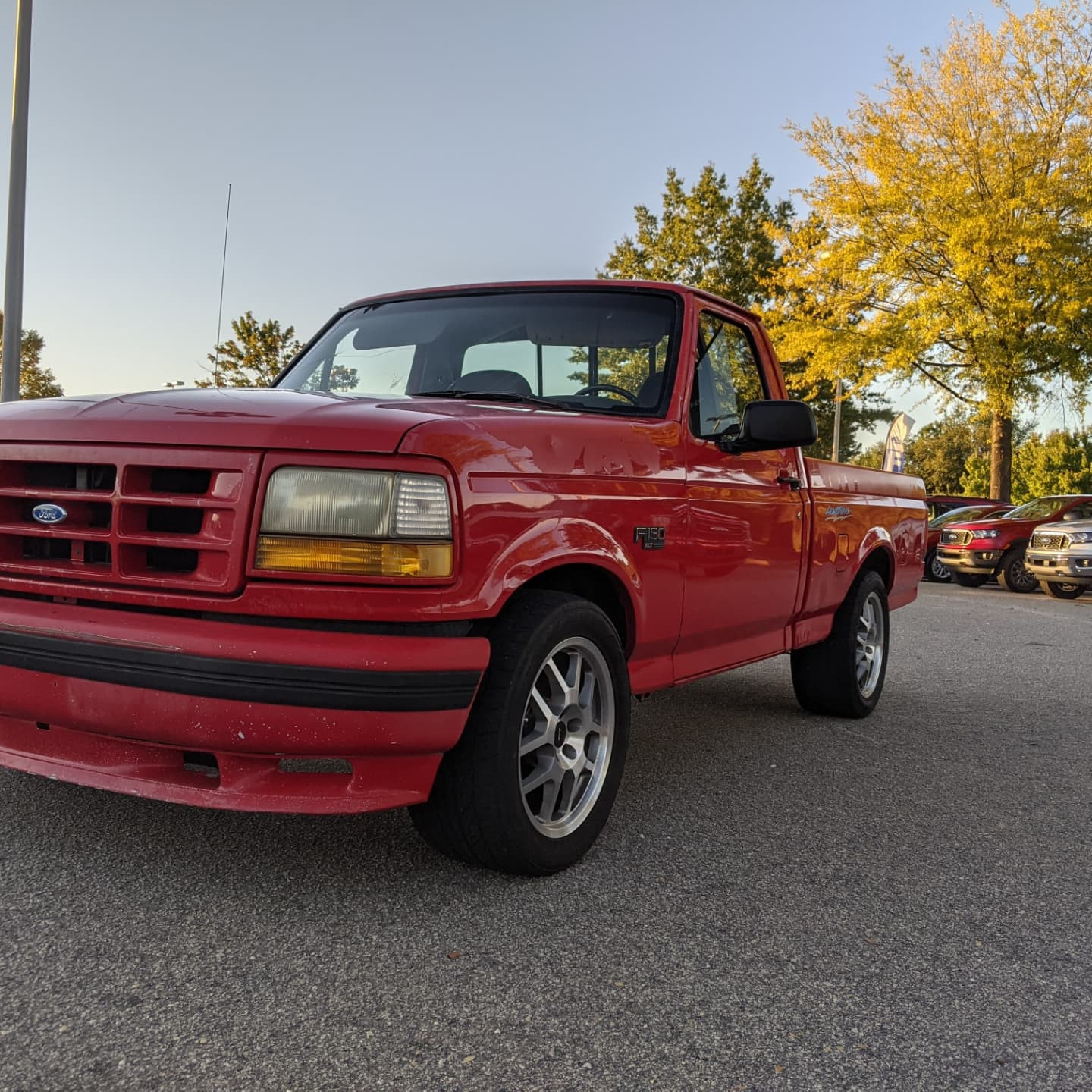

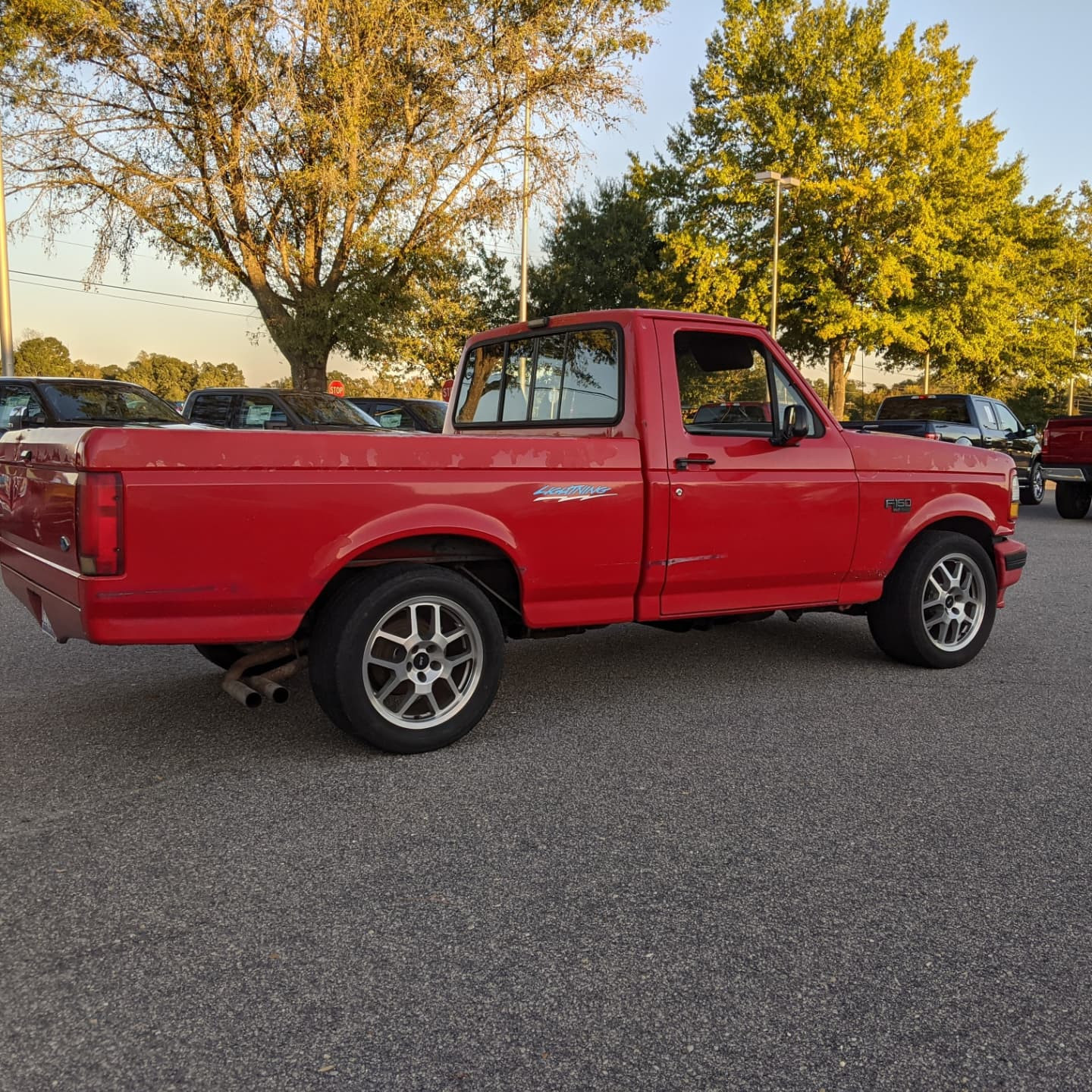

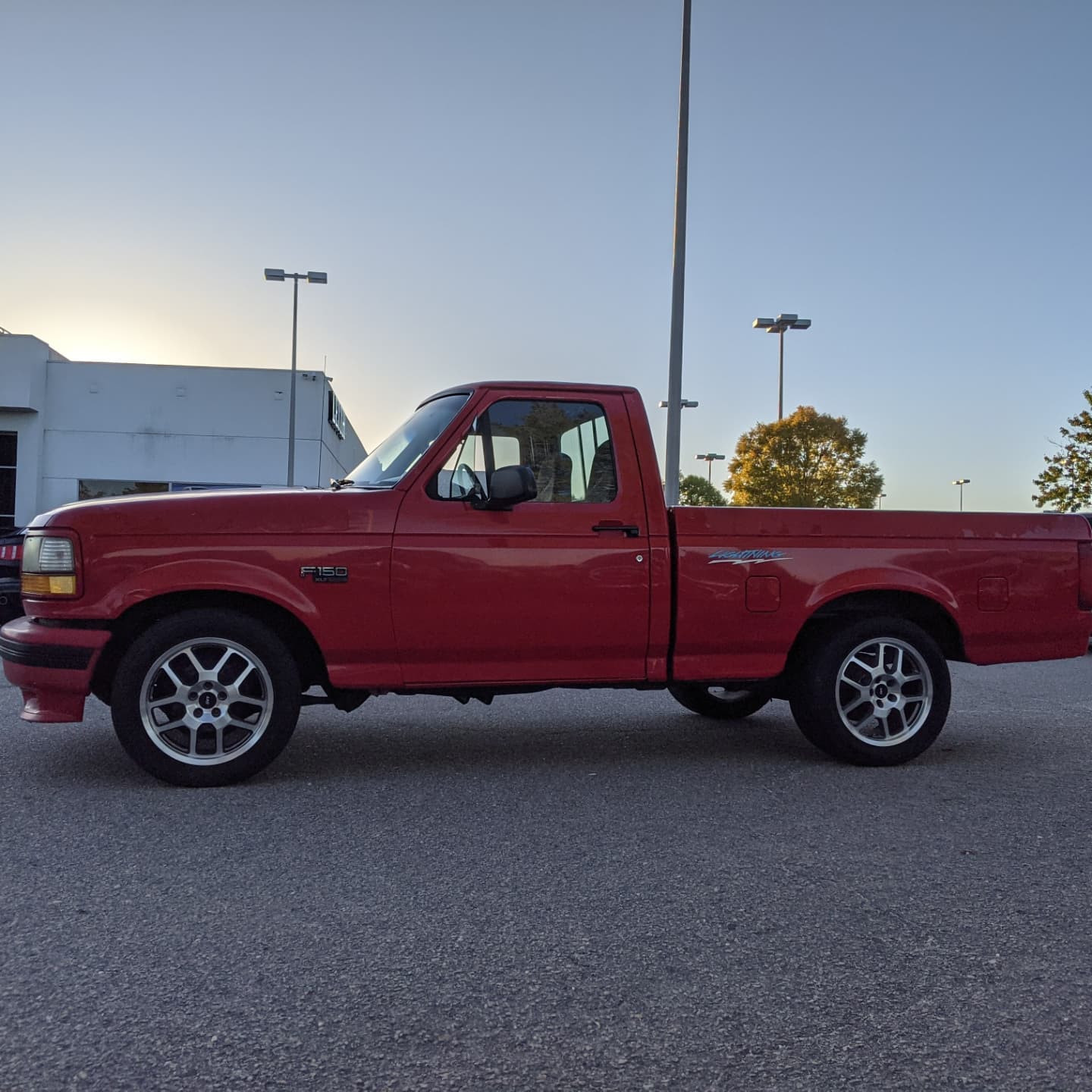

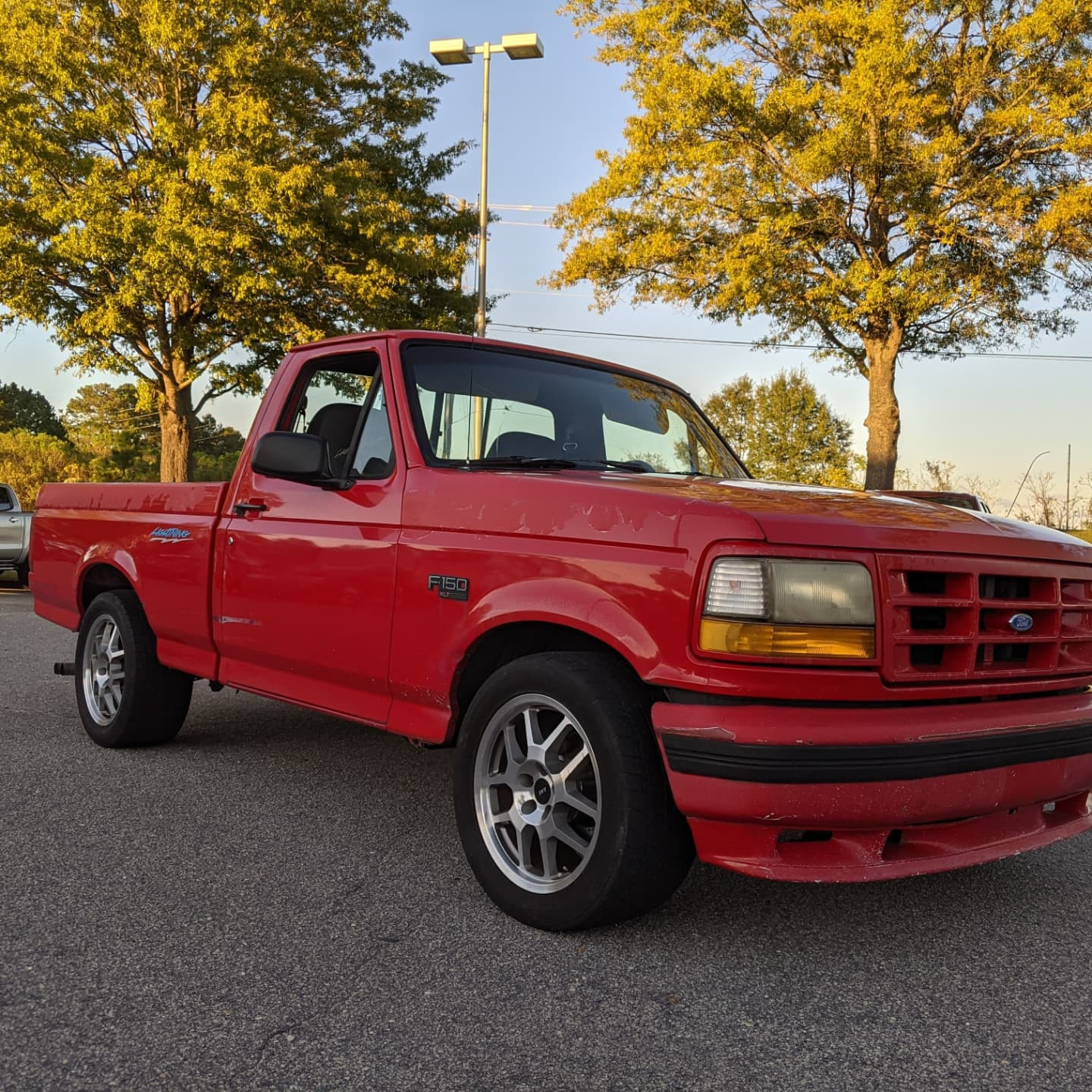

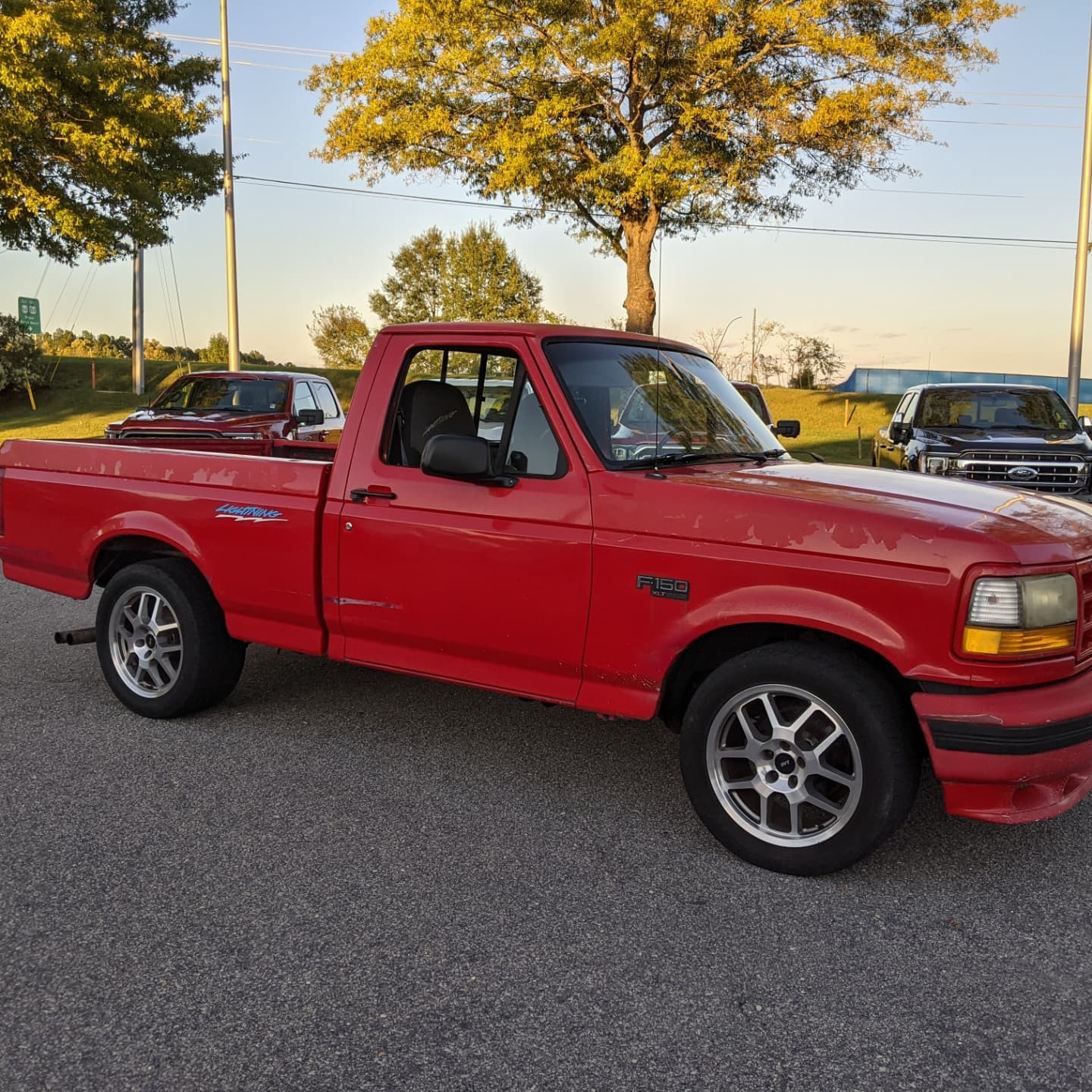

              Click image for larger version  Name:	IMG_20211017_192603_145.jpg Views:	29 Size:	603.1 KB ID:	13079321993 Lightning 240k miles. Running and driving project truck. Could be restored or its good enough to be "a car guy daily driver". Mostly stock with genuine 2007 Mustang GT500 wheels.

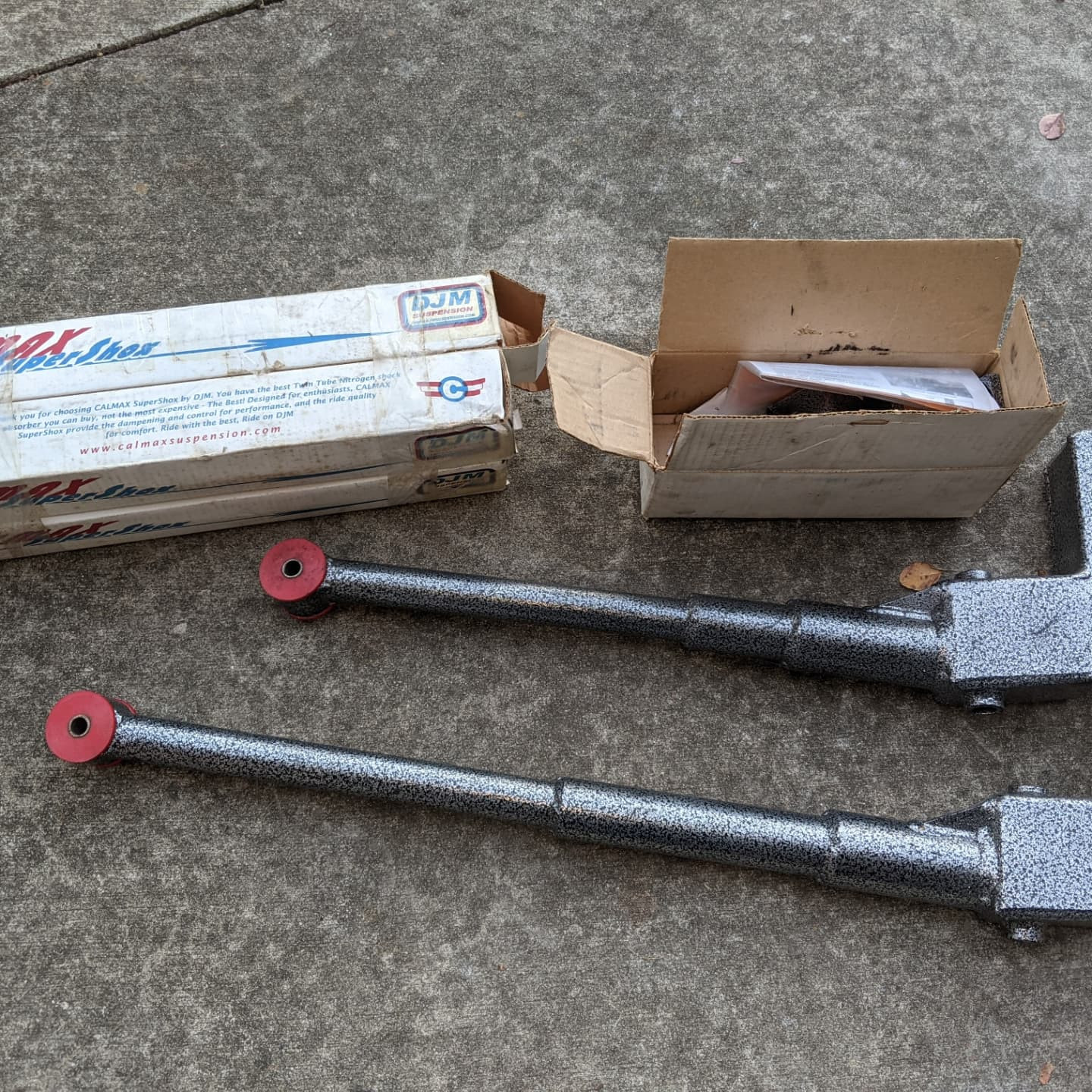

              Can include DMJ Dream beams (lowering I-beams) and flip kit with shocks

              Sold.

              I Thought some new ford's would be a nice back drop for a few pictures.
              Last edited by Russell; October 25, 2021, 03:28 PM.
              http://www.bangshift.com/forum/forum...-consolidation
              1.54, 7.31 @ 94.14, 11.43 @ 118.95

              PB 60' 1.49
              ​​​​​​

              Comment


              • Click image for larger version

Name:	IMG_20211017_192603_687.jpg
Views:	182
Size:	325.5 KB
ID:	1307935
                Attached Files
                http://www.bangshift.com/forum/forum...-consolidation
                1.54, 7.31 @ 94.14, 11.43 @ 118.95

                PB 60' 1.49
                ​​​​​​

                Comment


                • Good luck!

                  Dan

                  Comment


                  • The L (also know as the distraction) has left.

                    Parting is bitter, but the cash is sweet!
                    http://www.bangshift.com/forum/forum...-consolidation
                    1.54, 7.31 @ 94.14, 11.43 @ 118.95

                    PB 60' 1.49
                    ​​​​​​

                    Comment


                    • Click image for larger version

Name:	PXL_20220302_122222819_copy_688x918.jpg
Views:	160
Size:	210.1 KB

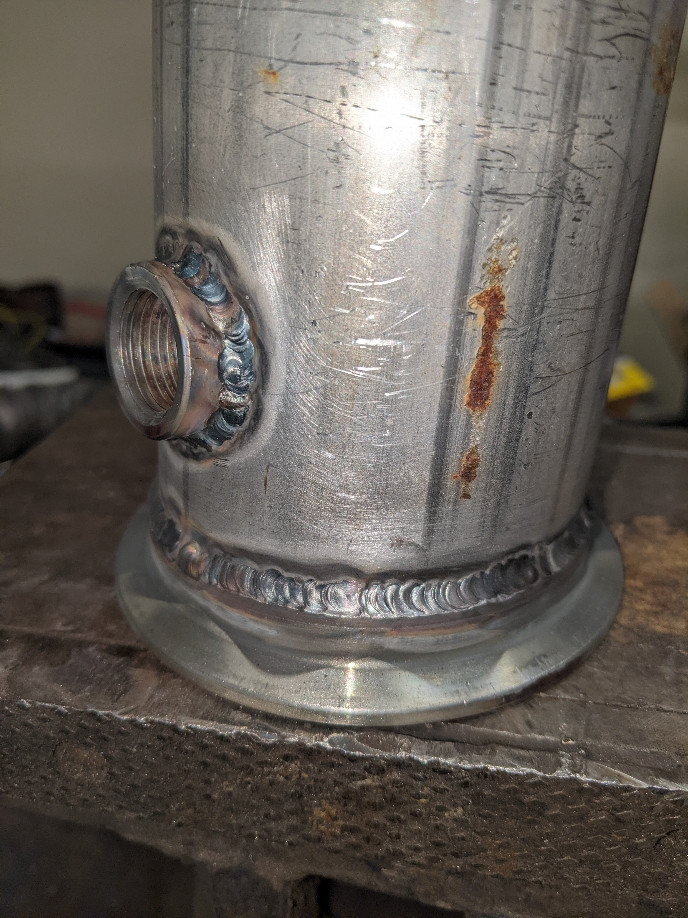

ID:	1315399 I really stink at updates. Mustang is still in jack stand jail. I keep telling myself it's close. Need to finish the temporary downpipe and waste gate dump tube. Then do some wiring and rerouting install boost controller. Then everything else I am forgetting.
                      I am trying to pick up the pase. My neighbor just got an On3 kit for his mustang. He doesn't know it but it's a race to see who can make boost first . No telling who will win. Mine is mostly installed but still needs some fab work. His is a "bolt on", he is retired, and his kids are out of the house.
                      http://www.bangshift.com/forum/forum...-consolidation
                      1.54, 7.31 @ 94.14, 11.43 @ 118.95

                      PB 60' 1.49
                      ​​​​​​

                      Comment


                      • You're getting better at that welding thing! You can tackle my stuff any old time you want.

                        Dan
                        Last edited by DanStokes; March 4, 2022, 09:54 AM.

                        Comment


                        • Thanks Dan! Not sure I am ready for structure yet, but bring it up here we can tackle it. The more time I spend TIG welding the more I like if nothing else I seem to have fewer burns.
                          http://www.bangshift.com/forum/forum...-consolidation
                          1.54, 7.31 @ 94.14, 11.43 @ 118.95

                          PB 60' 1.49
                          ​​​​​​

                          Comment

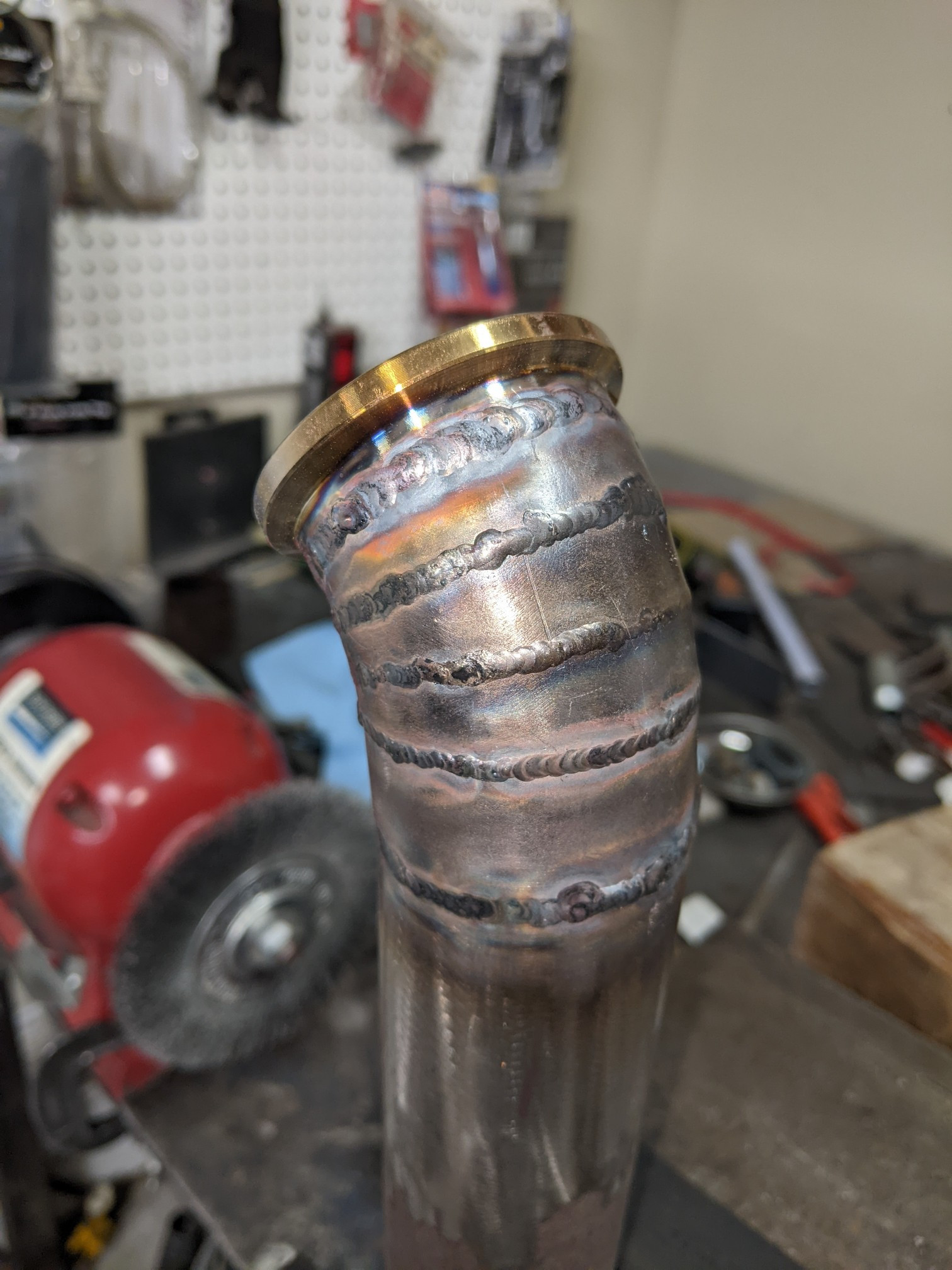

                          • Houston helped me in the shop yesterday. We worked on the "temporary" down pipe extension, and the WG dump. Other than a hanger I think the fabrication is done for now.
                            Attached Files
                            http://www.bangshift.com/forum/forum...-consolidation
                            1.54, 7.31 @ 94.14, 11.43 @ 118.95

                            PB 60' 1.49
                            ​​​​​​

                            Comment


                            • Originally posted by Russell View Post
                              Thanks Dan! Not sure I am ready for structure yet, but bring it up here we can tackle it. The more time I spend TIG welding the more I like if nothing else I seem to have fewer burns.
                              I find the better I get at tig welding , the more time and money I save on grinding…

                              Comment


                              • Looking good! that's ALOT of tig welding practice on a single pipe! well done indeed!
                                There's always something new to learn.
