1991 Lumina Z34

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Skeptical
    replied
    Originally posted by ejs262 View Post
    My POS Fiero will probably get a 3.9 after I smoke the 3.5 that's in it. I don't think the mount works on a 4T80, but I cannot confirm that.
    Quotes like that ensure that your 3.5 will never break now.

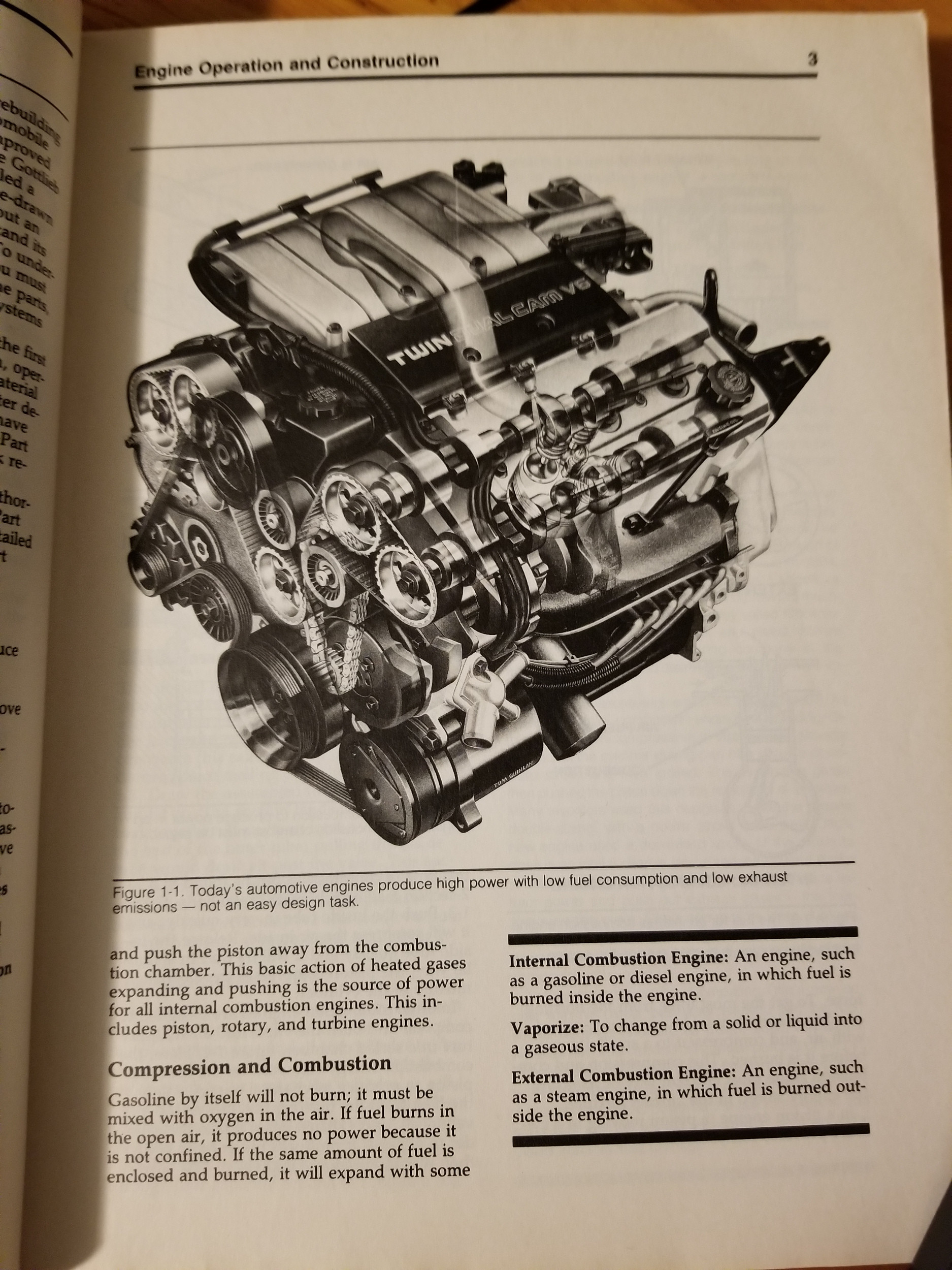

    Also, I stumbled across this gem from one of my engine building textbooks from college in the 90s. My best friends son was asking about books to read to learn about how to fix cars so i went digging through some of my old books.

    Click image for larger version  Name:	20200602_231244_scale.jpg Views:	0 Size:	962.7 KB ID:	1271368
    Last edited by Skeptical; June 2, 2020, 08:20 PM.

    Leave a comment:


  • Skeptical
    replied
    Originally posted by ejs262 View Post
    how are you going to post these super cool pictures without a link to said microscope?
    Ask and you shall receive brotha. Usually these china things are all the same or damn close so I buy the cheapest one I can find. I fire up VLC on Ubuntu to take the pics or video with it.

    https://www.amazon.com/gp/product/B0...?ie=UTF8&psc=1
    Last edited by Skeptical; June 2, 2020, 08:10 PM.

    Leave a comment:


  • ejs262
    replied
    Originally posted by Skeptical View Post

    That's a nice bracket. Pretty much how I would have attempted that too. I wonder if something similar would work on the 4t80. I like that style of mountig better than Furches oil pan mount. Both cool though.

    The TDC is an interesting one for sure. I'm going to stash it away for.... Well I don't really have a reason since I will not put it in anything I own. Maybe I'll make it a museum piece one day.

    I do like the GM 60 degree motors. The Lumina was originally going to get the 3.9 and a turbo until I noticed the LS4's starting to litter the junk yards for the same price.

    My POS Fiero will probably get a 3.9 after I smoke the 3.5 that's in it. I don't think the mount works on a 4T80, but I cannot confirm that.

    Leave a comment:


  • ejs262
    replied
    how are you going to post these super cool pictures without a link to said microscope?

    Leave a comment:


  • Skeptical
    replied
    Originally posted by Russell View Post
    The chamber looks really porous. How does it look with out the microscope?
    Pretty crazy right? I was a little weirded out by it. The casting itself isn't porous, Its more of the texture from the sand casting process I think. The carbon might be playing games with making it look that way too. The piston one creeps me out the most. Looks like something laid eggs in it.

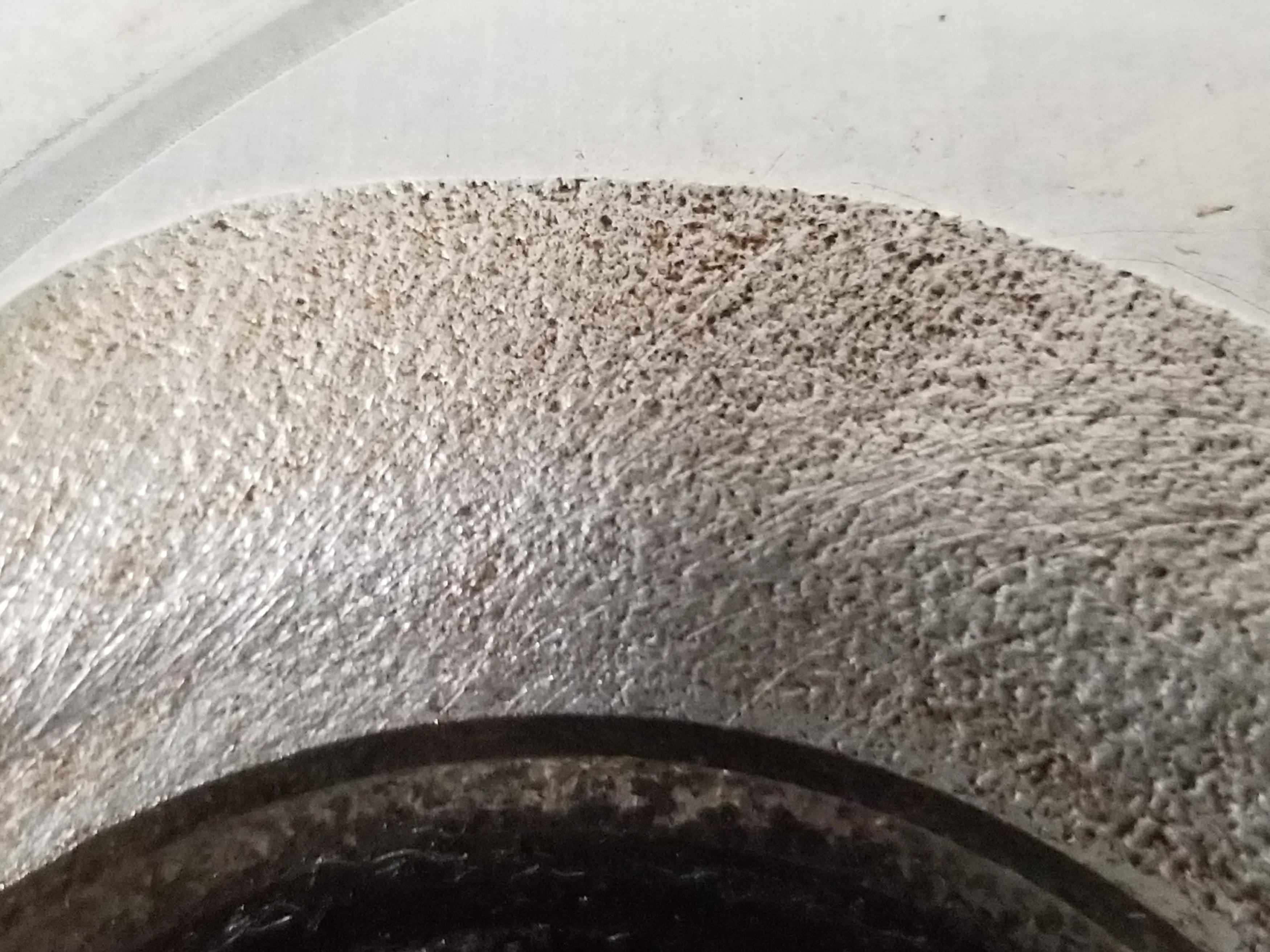

    Here's some pics with a regular phone camera and some added shots of a different head. I usually smooth an rough areas in the chambers and round off any sharp edges.

    Click image for larger version  Name:	20200602_115124.jpg Views:	0 Size:	878.8 KB ID:	1271353

    Click image for larger version  Name:	20200602_115225.jpg Views:	0 Size:	683.0 KB ID:	1271354

    Click image for larger version  Name:	20200602_115213.jpg Views:	0 Size:	750.7 KB ID:	1271355

    Click image for larger version  Name:	20200602_115205.jpg Views:	0 Size:	753.6 KB ID:	1271356


    And here is a Quad 4/ Twin cam head with a close up shot of the combustion chamber with the microscope.

    Click image for larger version  Name:	20200602_174904.jpg Views:	0 Size:	1,018.3 KB ID:	1271357

    Similar texture in this head as well.

    Click image for larger version  Name:	vlcsnap-2020-06-02-17h49m56s835.png Views:	0 Size:	485.5 KB ID:	1271358
    Last edited by Skeptical; June 2, 2020, 04:19 PM.

    Leave a comment:


  • Russell
    replied
    The chamber looks really porous. How does it look with out the microscope?

    Leave a comment:


  • Skeptical
    replied
    Ground the valves and took some pics with a cheap microscope. Some are really interesting.

    Before
    Click image for larger version

Name:	20200531_152339.jpg
Views:	256
Size:	596.6 KB
ID:	1271262

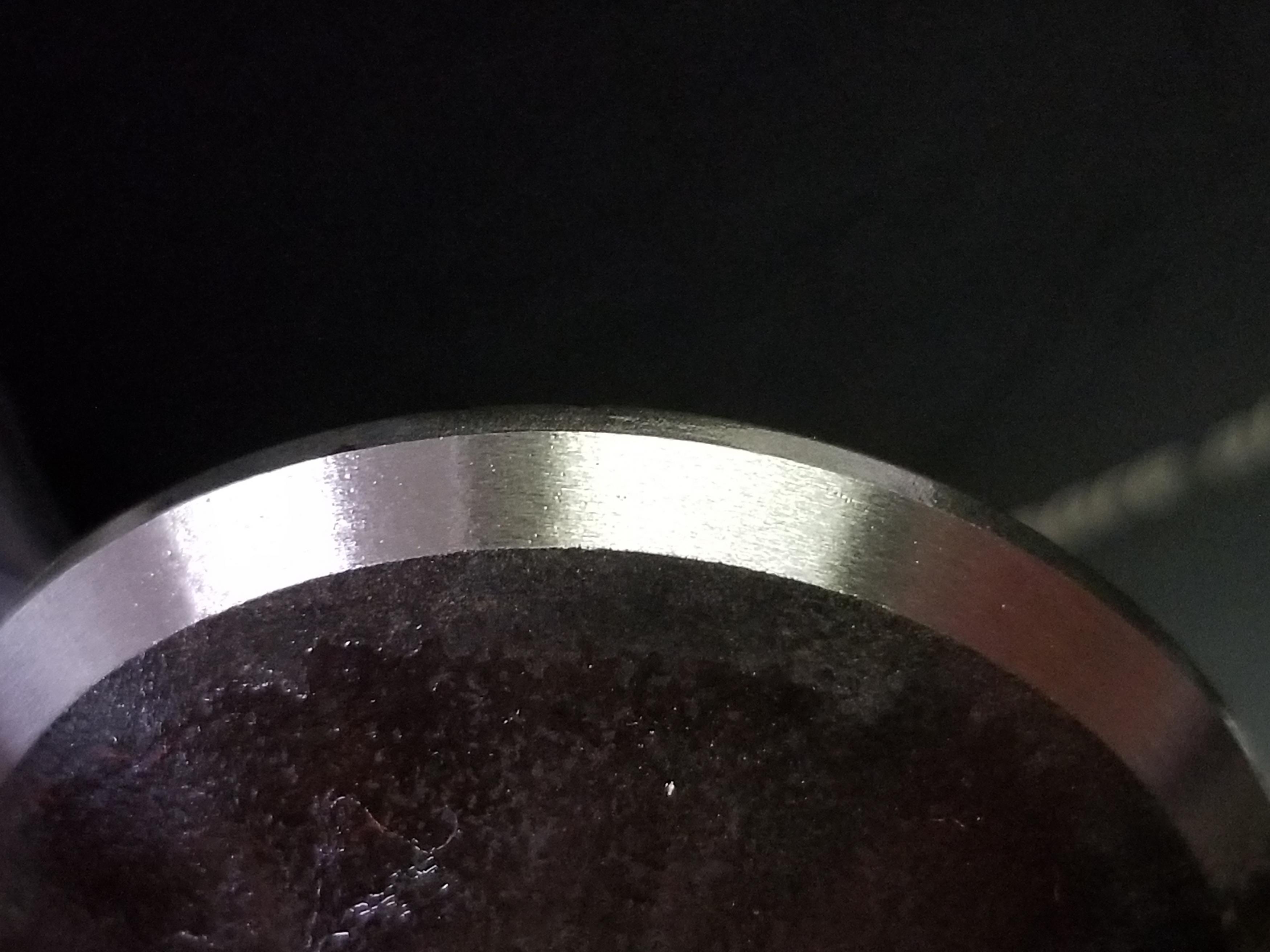

    After
    Click image for larger version

Name:	20200531_152355.jpg
Views:	245
Size:	575.2 KB
ID:	1271263

    Before closeup
    Click image for larger version

Name:	vlcsnap-2020-05-28-18h29m37s502.png
Views:	245
Size:	489.1 KB
ID:	1271264

    After closeup
    Click image for larger version

Name:	vlcsnap-2020-05-31-21h38m07s011.png
Views:	246
Size:	475.2 KB
ID:	1271265

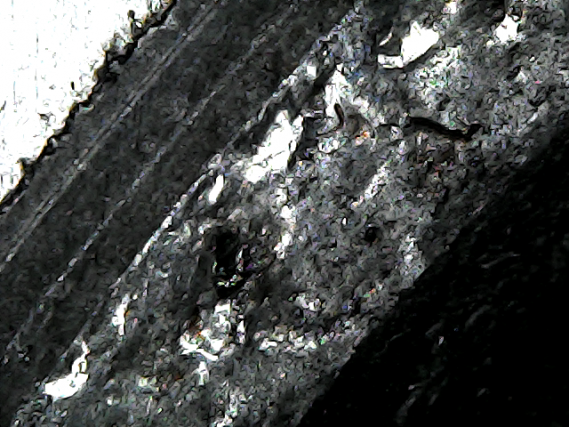

    Intake Valve wear up close. Doesn't look that bad without the microscope.
    Click image for larger version

Name:	vlcsnap-2020-05-28-18h34m38s125.png
Views:	246
Size:	490.2 KB
ID:	1271266

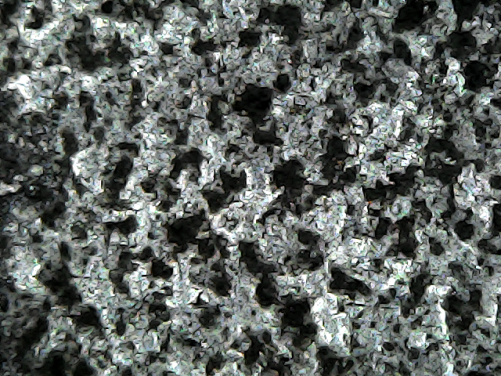

    This is what the combustion chamber looks like.
    Click image for larger version

Name:	vlcsnap-2020-05-28-18h40m14s941.png
Views:	237
Size:	504.9 KB
ID:	1271267

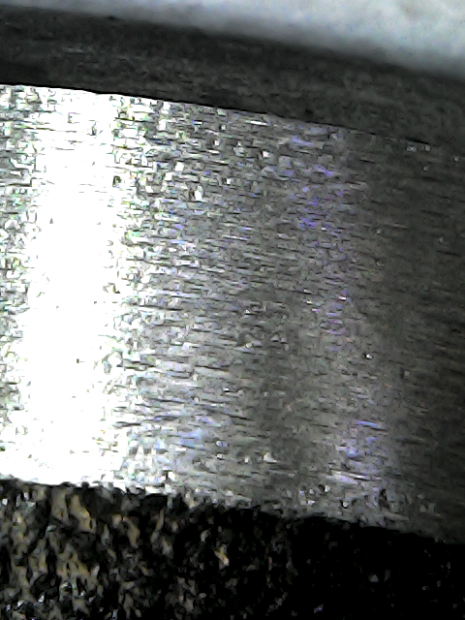

    Exhaust valve seat
    Click image for larger version

Name:	vlcsnap-2020-05-28-18h38m32s149.png
Views:	247
Size:	479.5 KB
ID:	1271268

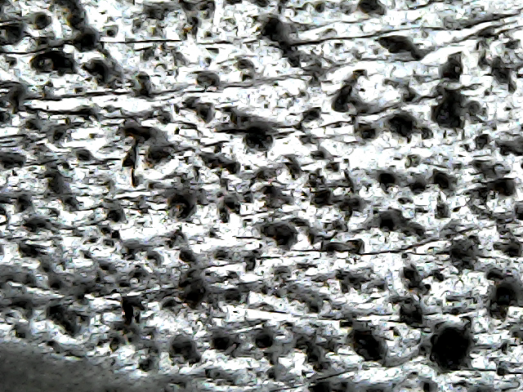

    Piston with chunk of spark plug ceramic in it
    Click image for larger version

Name:	vlcsnap-2020-05-28-18h39m23s612.png
Views:	250
Size:	507.9 KB
ID:	1271269

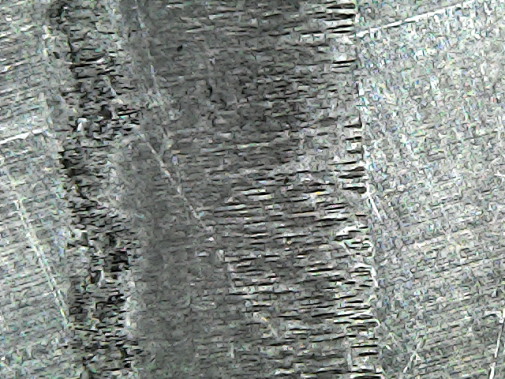

    Gasket surface on head from head gasket surrounding the cylinder. According to the GM service bulletin, this doesn't need to be resurfaced. I can feel it with my finger tip but not my fingernail. I'll put an indicator on it and see how much of an indentation it is.
    Click image for larger version

Name:	vlcsnap-2020-05-28-18h36m47s973.png
Views:	241
Size:	485.3 KB
ID:	1271270

    Ground valve tip
    Click image for larger version

Name:	vlcsnap-2020-05-31-21h38m47s321.png
Views:	246
Size:	418.3 KB
ID:	1271271

    Leave a comment:


  • Skeptical
    replied
    Here's a quick clip of the 3.4 Running before shutting it down for no oil pressure.

    Leave a comment:


  • Skeptical
    replied
    Originally posted by ejs262 View Post

    Fieroguru performance makes a simple, clean starter adapter to allow the use of the F40 with the LS4,



    The TDC you removed is a neat engine, but boy are they heavy...
    That's a nice bracket. Pretty much how I would have attempted that too. I wonder if something similar would work on the 4t80. I like that style of mountig better than Furches oil pan mount. Both cool though.

    The TDC is an interesting one for sure. I'm going to stash it away for.... Well I don't really have a reason since I will not put it in anything I own. Maybe I'll make it a museum piece one day.

    I do like the GM 60 degree motors. The Lumina was originally going to get the 3.9 and a turbo until I noticed the LS4's starting to litter the junk yards for the same price.



    Leave a comment:


  • ejs262
    replied
    Originally posted by Skeptical View Post
    So let me throw another swap idea that would be pretty cool. How about the F40 6spd in the Lumina? The fiero guys are bolting that one up to their ls4 swap cars. That trans in "brand new old stock" form right now is cheap. That would be a fun driver!
    Fieroguru performance makes a simple, clean starter adapter to allow the use of the F40 with the LS4,



    The TDC you removed is a neat engine, but boy are they heavy...

    Leave a comment:


  • SuperBuickGuy
    replied
    Originally posted by Skeptical View Post

    Having lived in Florida my whole life, I don't really think about the humidity until someone brings it up. I've never had a problem with it. There is a plus side though. The ladies outfits shrink the more hot and humid it gets. You'd be amazed at how many out of state guys all of the sudden no longer have a problem with it.
    here in the north, we use alcohol for that purpose.

    Leave a comment:


  • Skeptical
    replied
    Originally posted by SuperBuickGuy View Post
    I can't believe anyone would have a sense of humor living in that humidity.... good on you for it ;)
    Having lived in Florida my whole life, I don't really think about the humidity until someone brings it up. I've never had a problem with it. There is a plus side though. The ladies outfits shrink the more hot and humid it gets. You'd be amazed at how many out of state guys all of the sudden no longer have a problem with it.

    Leave a comment:


  • SuperBuickGuy
    replied
    I can't believe anyone would have a sense of humor living in that humidity.... good on you for it ;)

    Leave a comment:


  • cstmwgn
    replied
    Originally posted by Skeptical View Post

    It's the medium sized area between the two cities on the coast that get a lot of rain and have palm trees. It's actually the excessively wet coast right now.
    Got to love the "Summer Time" pattern and sea breezes

    Leave a comment:


  • Skeptical
    replied
    Originally posted by cstmwgn View Post
    So I have to ask - exactly where is the "moist coast" of Florida?
    I don't recall finding a dry one in my travels.
    It's the medium sized area between the two cities on the coast that get a lot of rain and have palm trees. It's actually the excessively wet coast right now.

    Leave a comment:
