  • Timber Cruiser 5 yr. Service

    Every 5-6 years, I tear into my 1987 Suzuki Samurai, Off Roading Trails Exploring Rig to work on Upgrades, Major Repairs, and Rust Areas.
    This time around, it is going to be mostly RUST Repair. The worst is the left rear corner panel area. I can't believe it got away this BAD.

    Click image for larger version

Name:	KIMG1995.jpg
Views:	319
Size:	720.4 KB
ID:	1290463

    Here's after I drilled out the spot welds to remove the fender lip bracket.

    Click image for larger version

Name:	KIMG2009.jpg
Views:	315
Size:	1.68 MB
ID:	1290464

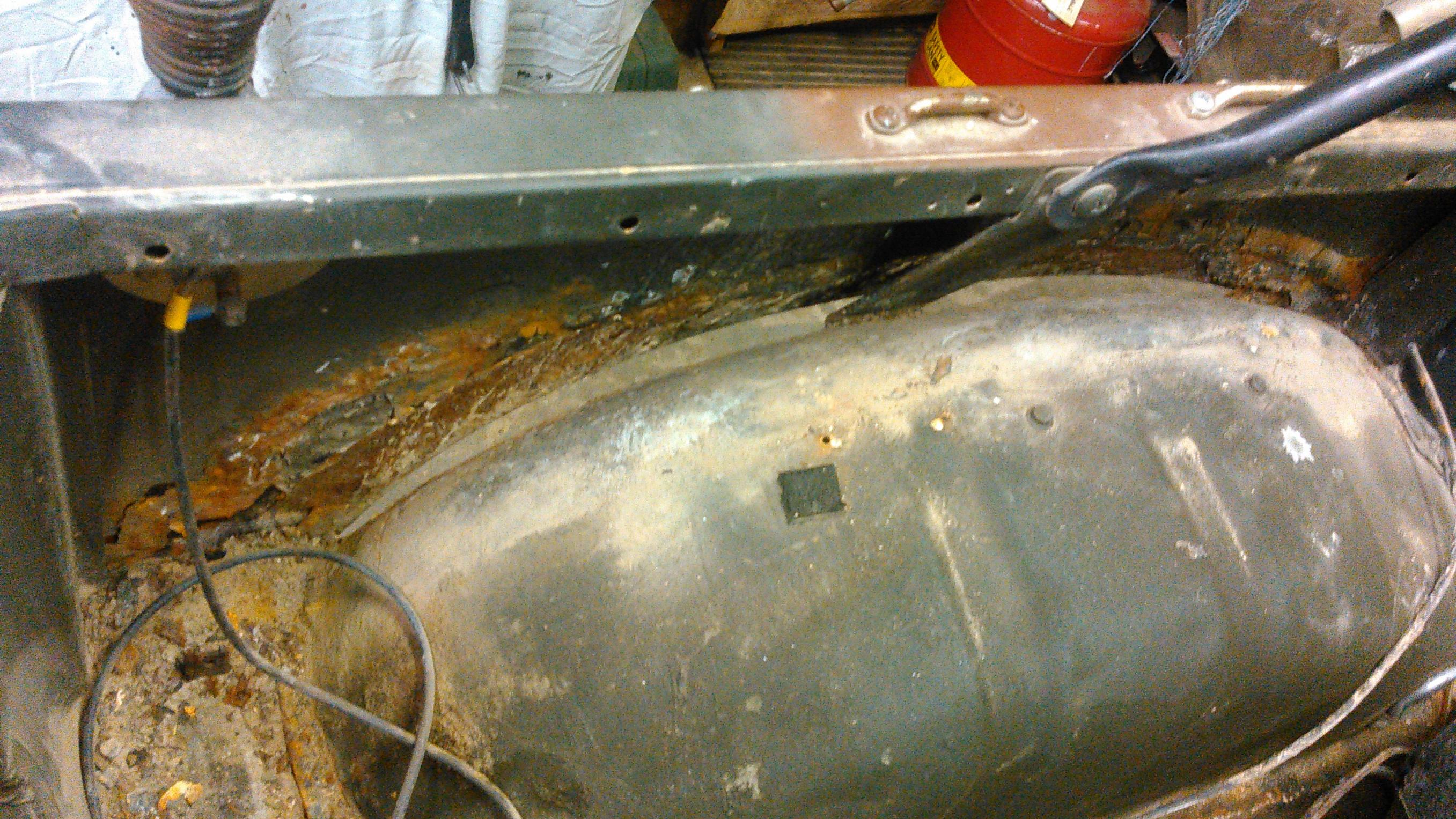

    The right rear only has two places where the inner fender meets the floor panel by the fill pipe.
    The front end was only real bad by the battery box, as acid corrosion has taken it's toll.
    But, while ordering a New Soft Top, saw adds for New Fenders scroll by.......$258.00.
    Backed up the screens, and not really reading, just looking at the pix, thinking a fender skin for $258.00, might save a lot of sand blasting, sawzalling, and refab work .....
    Read the description.......IT'S Both Left and Right COMPLETE FENDER ASSEMBLIES for $258.00 !!
    And the Right side assembly has the Battery Box !! And for another $68.00 I can have the front grill support.
    So a Whole Front Clip for $470.00 including tax and shipping !!
    Here's a pix of the stripped front end, still have to unbolt everything from the firewall yet. Click image for larger version

Name:	KIMG2006.jpg
Views:	315
Size:	1.60 MB
ID:	1290465

  • #2
    love cheap parts...
    Doing it all wrong since 1966


    • #3
      not that I'm a.d.d or anything but is that a Wizard in the corner?
      Flying south, with a flock of bird dogs.


      • #4
        Beagles, if you mean the old Outboard, it's a Seahorse 3 1/2 hp. Needs a carb float. Original float is Cork, and the new gasoline eats them up.


        • #5
          This morning at my Monday P.O.D. meeting on the War Board of Projects in the shop, decided to order a NOS left rear fender skin. With the good inner fender still there, it will save Time and Headaches, even though the fender I ordered is for a "TinTop". I'm planning on matching it in on the horizontal body line.
          Also want to note, those are "Roller Tires" as when l'm sand blasting, I won't have to worry about the good tires and rims.
          Today's plan is to remove the seats and carpeting to clean up the surface rust by the front floor drain plugs.


          • #6
            Thank You Kay_B,
            See you are New Here,
            Welcome to the Group Home For Rusty Iron Junkies!!!
            Most are Good in the General Public, some can get Growly, but don't bite ....... LOL
            And Advice is FREE, so are OPINIONS.....


            • #7
              Now that we got that straightened out, they shipped two right fender assemblies. The left fender came late yesterday. Click image for larger version

Name:	IMG_20210323_173005.jpg
Views:	266
Size:	697.2 KB
ID:	1290670

              Still working on getting things apart, and other projects that need attention.


              • #8
                Originally posted by Captain View Post
                Beagles, if you mean the old Outboard, it's a Seahorse 3 1/2 hp. Needs a carb float. Original float is Cork, and the new gasoline eats them up.
                I'm getting old and less clever-er. I should have guessed it from the letters on the cowling. I've got one of it's cousins, a wallhanger 3hp twin Evinrude from way back. It came from the coast and the block is one piece (as in seized from rust)...
                Flying south, with a flock of bird dogs.


                • #9

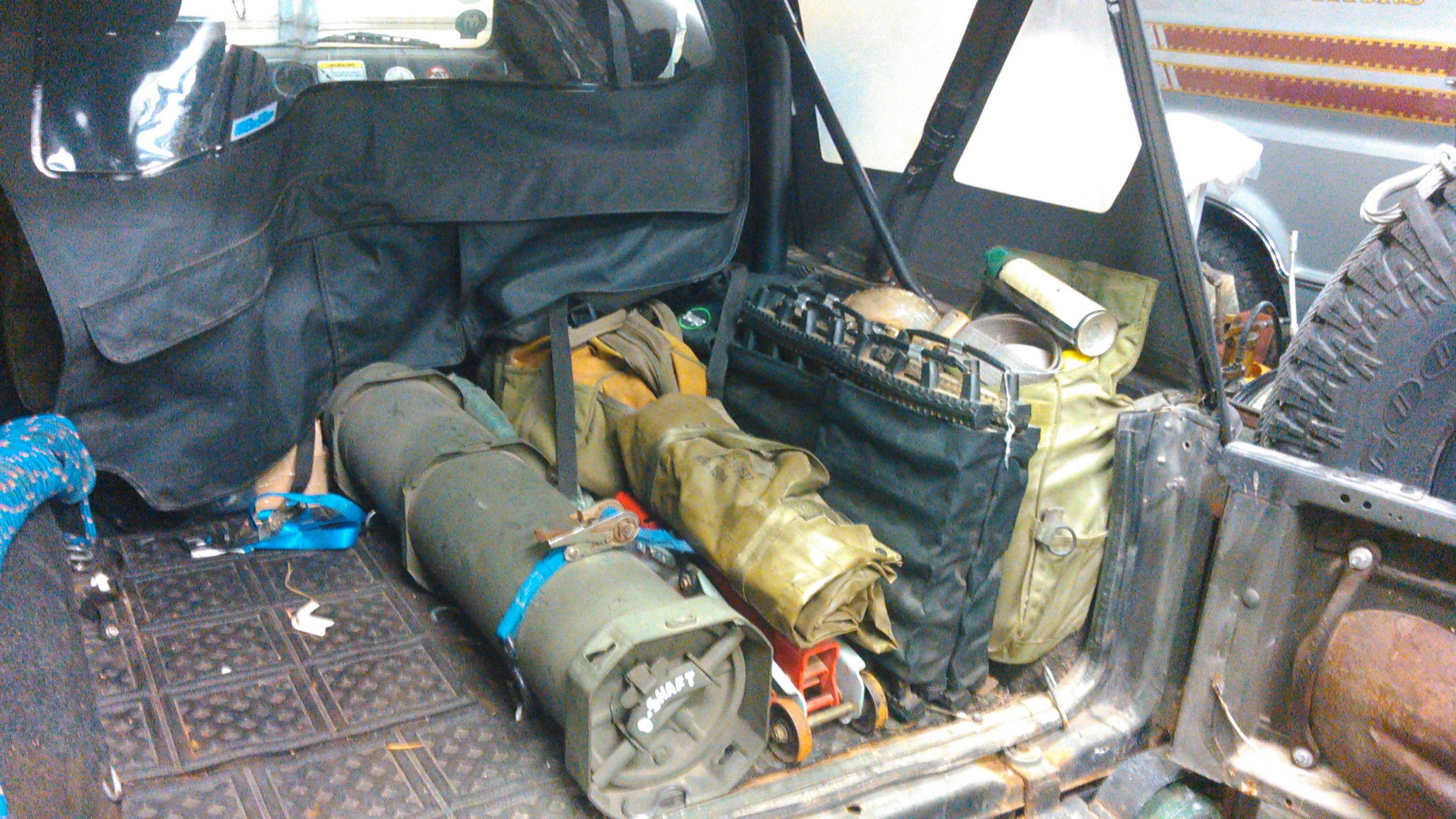

                  After cleaning out everything that I pack for traveling in AREA BFE.... Click image for larger version

Name:	KIMG1989.jpg
Views:	231
Size:	688.1 KB
ID:	1290983

                  removed the seats, and carpeting.

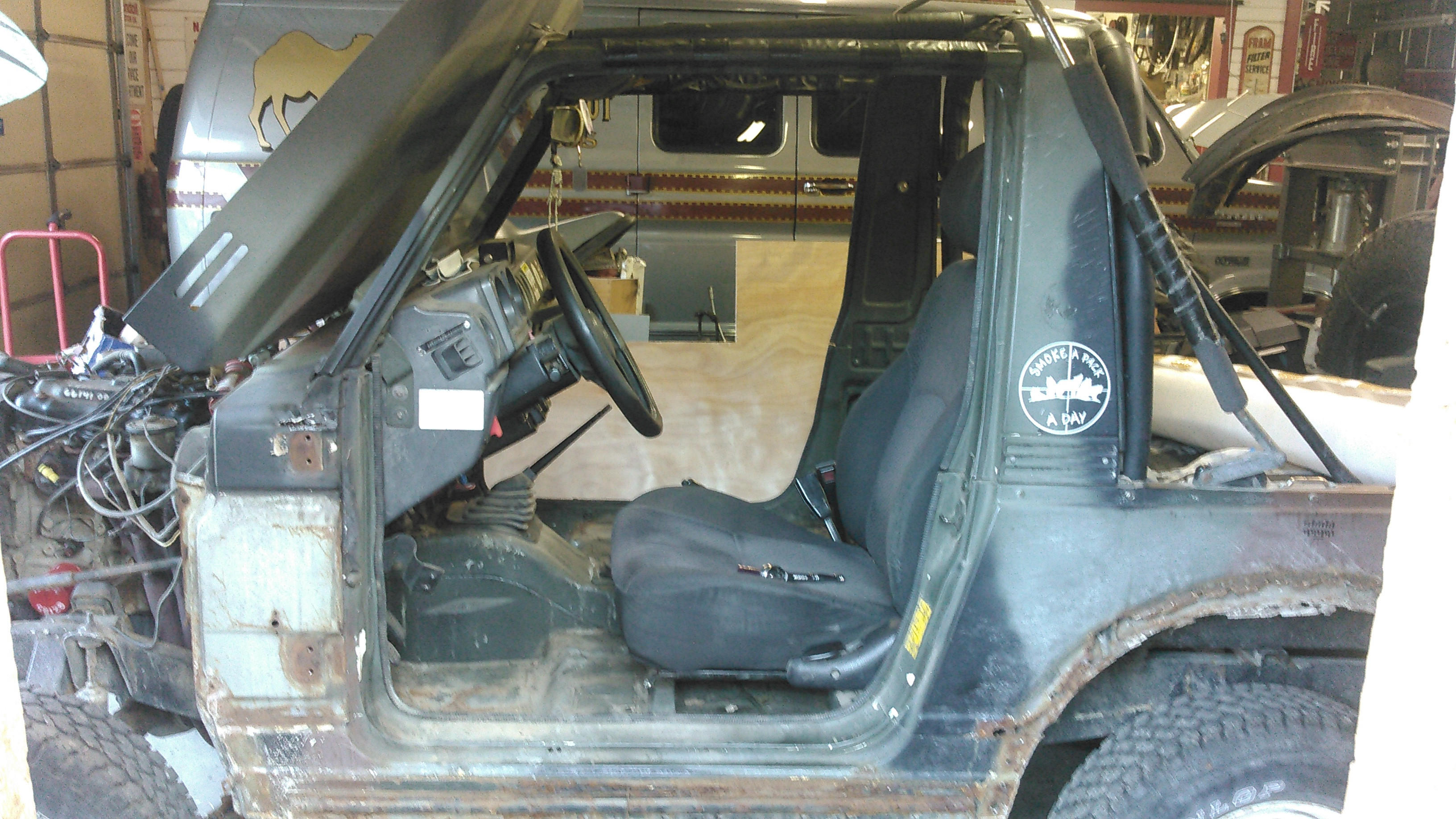

                  Had to remove the Doors to get the fenders loose. Click image for larger version

Name:	KIMG2062.jpg
Views:	231
Size:	1.69 MB
ID:	1290984

                  Then removed the entire front clip.

                  Click image for larger version

Name:	KIMG2060.jpg
Views:	231
Size:	1.63 MB
ID:	1290985

                  while waiting for the left rear fender skin,
                  going to sand blast the smaller rust areas.


                  • #10
                    Having a 6000 pound 4x4 that I'm afraid to off road because I'm afraid nobody could pull me out , I love this project . They just had one of these that they stretched into a pickup on dirt every day and they just loved it .
                    Last edited by Dan Barlow; October 18, 2021, 10:21 AM.
                    Previously HoosierL98GTA


                    • #11
                      Lots of things are happening, but not many pix taken. Spent the last couple of days Sand Blasting and cutting out the rust spots back to bare steel.
                      Cut up a junk steel cabinet for the patch steel.
                      Spent a Good Hour and a Half vacuuming out the interior after final blasting.

                      Click image for larger version

Name:	KIMG2068.jpg
Views:	215
Size:	746.2 KB
ID:	1291441Click image for larger version

Name:	KIMG2070.jpg
Views:	211
Size:	842.6 KB
ID:	1291442Click image for larger version

Name:	KIMG2074.jpg
Views:	212
Size:	1.53 MB
ID:	1291443

                      I blasted around some previous fiberglass repairs as I found out (after reading the side of the new epoxy) resin doesn't stick to paint !!
                      You are to get down to bare steel.
                      So I might need more epoxy resin.
                      I promise to take more pix on the rust repairs


                      • #12
                        Click image for larger version

Name:	KIMG0636.jpg
Views:	186
Size:	1.37 MB
ID:	1307059 Well, back at "This Project ".......
                        It's October and Snow Flies here within a few weeks.....
                        With other Rusty Iron Vehicles needing repairs, Car Shows, 2 week Road Trip to Detroit, Family Excuses for Procrastination are convincing, eh?
                        Started on patching up the rust thru areas.

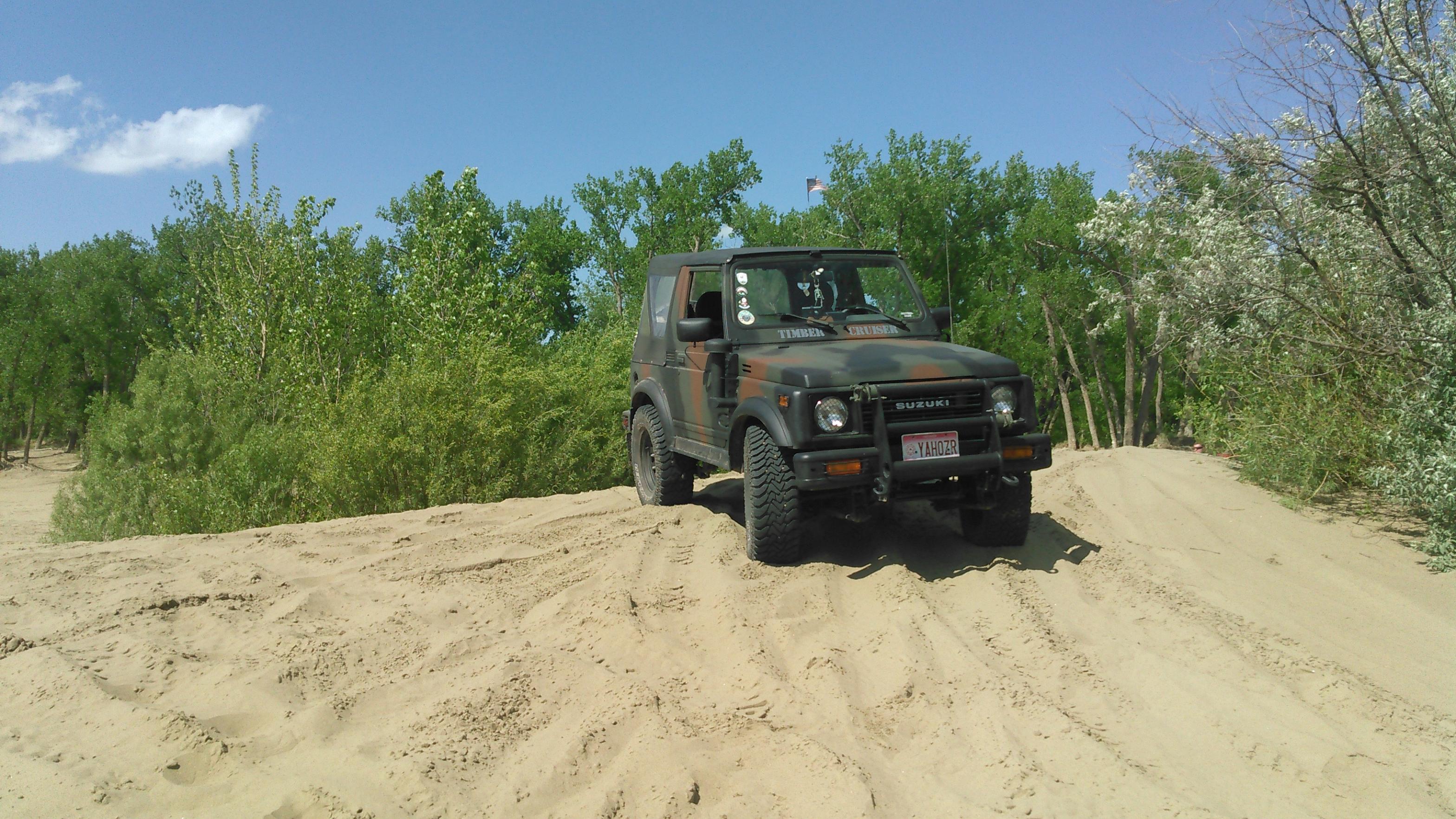

                        Being my Go To Off Road / Exploring Rig, I am using the Patch Metal and Fiberglass method as this is NOT A MALL CRAWLER Show Off 4x4 rig.....though it has been seen Beach Cruising for Chicks along the Missouri River in North Dakota...

                        Click image for larger version

Name:	KIMG0597.jpg
Views:	189
Size:	1.36 MB
ID:	1307057Click image for larger version

Name:	KIMG0415.jpg
Views:	183
Size:	810.5 KB
ID:	1307058


                        • #13
                          Here is some of the patch work. Click image for larger version  Name:	KIMG2081.jpg Views:	0 Size:	1.01 MB ID:	1307067

                          Click image for larger version  Name:	KIMG2080.jpg Views:	0 Size:	1.22 MB ID:	1307066

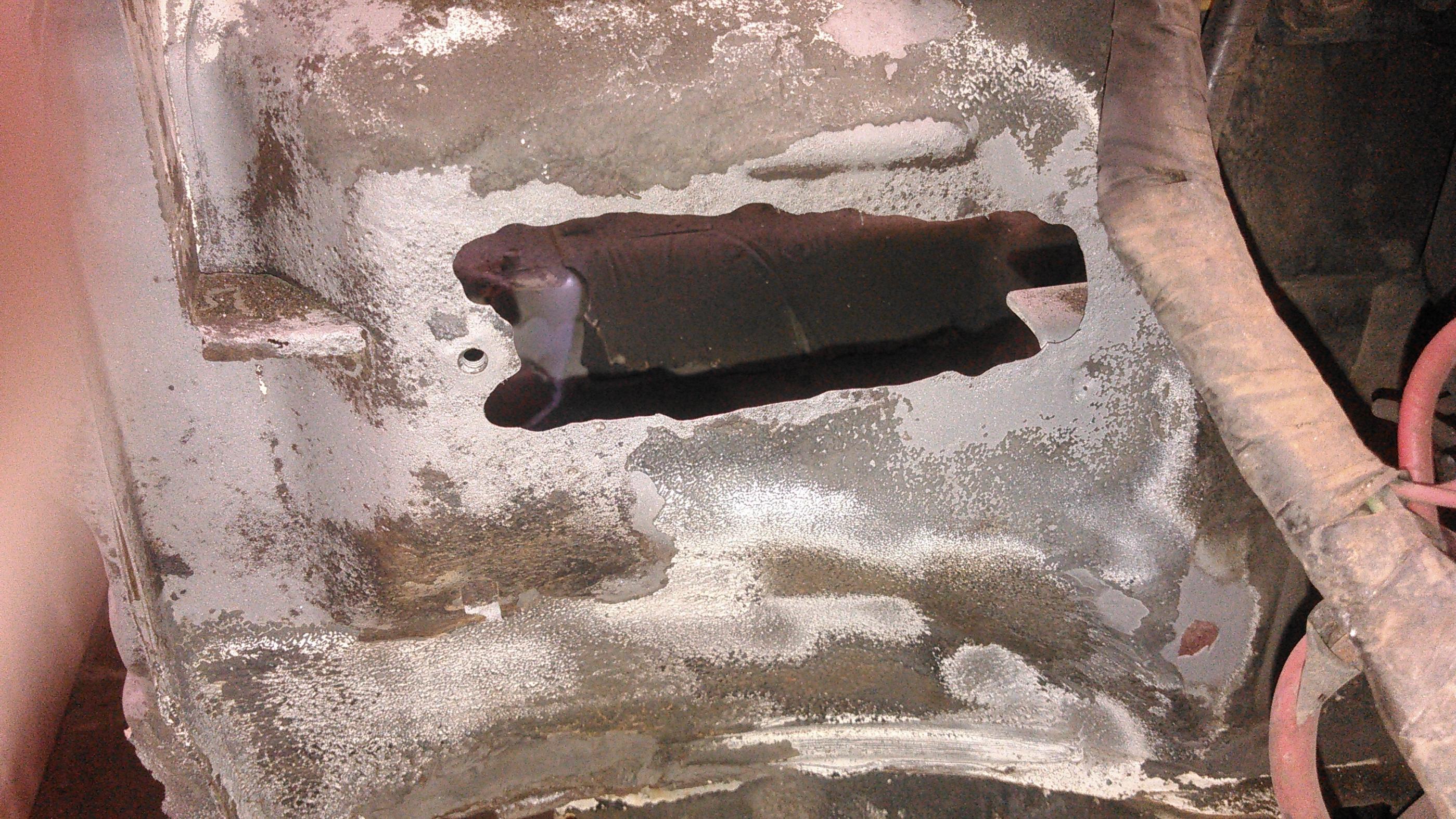

                          that hole in the firewall was from a Battery Acid Leak!! I didn't find it until the Battery gave up the Ghost a few years back. The top where it was TO BE SEALED to bottom case was leaking/fumes as it Charging, and Off Road Angles causing spillage.....

                          Click image for larger version  Name:	IMG_20210407_130847.jpg Views:	0 Size:	1.53 MB ID:	1307068

                          This is just floor Rot, I am rethinking about putting the Carpets back in and going to removable floor mats to let things dry out after Excursions......."What !!! That Creek Crossing isn't Higher than the Snorkel Intake!"
                          Last edited by Captain; October 3, 2021, 05:43 PM.


                          • #14
                            I fiberglass'd over those floor patch "tins" on both top and bottom to water proof them.
                            "Hey ! HEY HEY ! I Got Water Coming In On MY SIDE !!" (The Matt Memorial Ride in West Virginia......the Guest Spotter, as We Submarine'd the Timber Cruiser up to the Windshield Wipers) water was coming in thru the floor drain plugs, and the heater as water was over the fresh air grill on the cowl.

                            started to spray the front inner fender assemblies with Truck Bed Liner

                            Click image for larger version

Name:	KIMG2482.jpg
Views:	185
Size:	1.28 MB
ID:	1307070
                            And the front frame and firewall Click image for larger version

Name:	KIMG2485.jpg
Views:	180
Size:	861.5 KB
ID:	1307071Click image for larger version

Name:	KIMG2486.jpg
Views:	183
Size:	1.68 MB
ID:	1307072


                            • #15
                              Now, the front "Chin" and top "Lip" pieces that hold the fenders and front clip together
                              were from a different supplier and extremely cheap, ......
                              NOW I Know Why.......these two pieces are Factory SECONDS !! Some of the bolt holes are Punched Wrong, the hood support rod bracket is welded on upside down, and fitment is going to need...."Cut to Size.....Trim to Fit "
                              Glad I found out before mounting the fenders. I was able to See these defects, and do the Major corrections while everything is apart.
                              I will still need to do some modifications, but I want to wait till I hang the front fenders.
