BBR's 83GT - 552 BBF version 3.0 (at least)

[NewEnglandRaceFan]

congrads,
I'd get new bolts if this is your d/w car..

[Bob Holmes]

Fantastic, great job.

[BBR]

I will not be doing DW this year, but I am going to keep a very close eye on them!

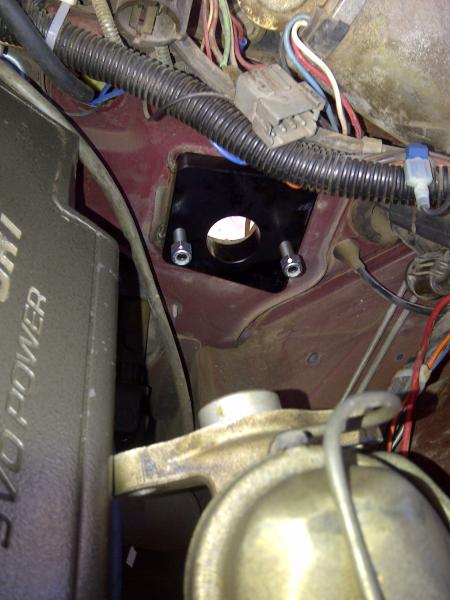

Started the manual brake conversion today. I pulled the booster out (had to remove the valve cover to get it out!) And bolted the adapter plate in. That's as far as I was able to get today. Looks like I will need to make all new lines from the mc because I do not think these will come close to reaching.

[squirrel]

Are you going to a smaller bore master cylinder?

[BBR]

These cars already have a 7/8" bore m/c, so I am just going to do the modification Stiney showed. I imagine it will be fine.

[squirrel]

Yup, it should be fine.

[BBR]

I decided to go ahead and replace the master cylinder since I was going to have to make new lines. The common swap is to put a manual brake master from a Ranger on it. This flips the lines to fender side keeping them well away from the headers. At $12.99 + core from OReilly I though it a wise investment.

[38P]

Ranger MC is 7/8ths bore? CRAP, I was just about to pull the trigger on a pricey '94-'95 SVT Cobra MC . . .

[BBR]

Stock '83 GT m/c is 7/8".

Ranger is actually 15/16, but those that use it report no ill side effects from the additional surface area.

[Beagle]

Speedy, look on RockAuto, they list the sizes. There are several available for the Mustang. example, 79 Mustang 4cylinder:

WAGNER Part # MC99084 {#F99084}
Power brakes; 7/8" Bore; w/Vacuum Boost

[38P]

Thanks! I almost wasted some coin. O'Reilly wanted like $90 for the Cobra MC . . . and had to order it (which is the only reason I paused). I'm ready to "swing iron" once I get the brakes done)

[Beagle]

I meant to say also, watch the threads. They put funky metric threads on some of them, so you may want to verify what is on the car currently.

[38P]

It's already going to have to have a boat-load of adapters to hook up the Hurst Line-Loc (included a free kit with a bunch of tubing and adaptors) Nothing has been easy or cheap so far, so I'm not expecting good things here either.

[Beagle]

no doubt.

Congrats on the 10 at altitude James.

[Scott Liggett]

Cool! Nice to see ole four eyes hauling some oats.
