  • #76

    Re: BBR's 83GT - turbo 302 time!

    Re: BBR's 83GT

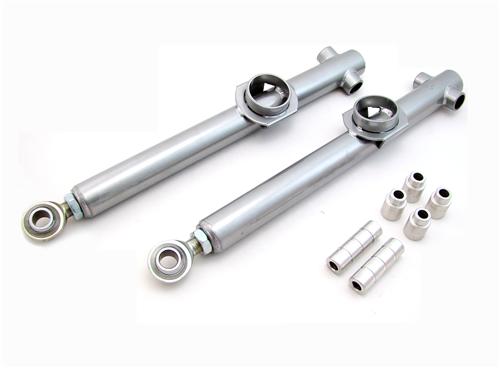

    I finally decided on what to do with the rear suspension. I picked up a set of UPR Pro Series lower control arms for a nice price. They just arrived. ;D

    Like these:


    I am going to run these with the stock UCA's for now, then maybe upgrade to adjustable uppers later.
    Last edited by BBR; January 14th, 2015, 04:18 PM.
    Life is short. Be a do'er and not a shoulda done'er.
    1983 Mustang GT 302/T5 http://www.bangshift.com/forum/forum...485-bbr-s-83gt
    1973 F-250 BBF Turbo Truck http://www.bangshift.com/forum/forum...uck-conversion
    1986 Ford Ranger EFI 545/C6 https://bangshift.com/forum/forum/ba...tooth-and-nail

    Comment


    • #77

      Re: BBR's 83GT - turbo 302 time!

      Re: BBR's 83GT

      Those look nice!

      I ran tubular fixed arms top and bottom when I had my '90.

      Seems like allot of guys use fixed uppers and adjustable lowers to go FAST.... if you want to stiffen up the stock uppers you could put in poly bushings and weld a flat plate across the bottom of them to box them.
      There's always something new to learn.

      Comment


      • #78

        Re: BBR's 83GT - turbo 302 time!

        Re: BBR's 83GT

        Wouldn't recommend poly in the uppers if you are putting in lowers with stiff bushings or rod ends. Reason is that the upper and lower arms swing in quite different arcs, hence the nickname "Quadrabind" suspension, as opposed to Ford's name of Quadralink. There needs to be some deflection in the upper bushings, or else it will bind up at full travel. That's why the uppers get removed completely when people install a torque-arm suspension on these cars.

        I had good luck with the FRPP upper arms, which are the factory style with higher durometer rubber bushings.


        cheers
        Ed N.
        Ed Nicholson - Caledon Ontario - a bit NW of Toronto
        07 Mustang GT with some stuff
        88 T-Bird Turbo Coupe 5-speed

        Comment


        • #79

          Re: BBR's 83GT - turbo 302 time!

          Re: BBR's 83GT

          I was planning on running rubber in the tops. There seem to be plenty of fast cars running rubber in the top w/o any problems.

          Life is short. Be a do'er and not a shoulda done'er.
          1983 Mustang GT 302/T5 http://www.bangshift.com/forum/forum...485-bbr-s-83gt
          1973 F-250 BBF Turbo Truck http://www.bangshift.com/forum/forum...uck-conversion
          1986 Ford Ranger EFI 545/C6 https://bangshift.com/forum/forum/ba...tooth-and-nail

          Comment


          • #80

            Re: BBR's 83GT - turbo 302 time!

            Re: BBR's 83GT

            I was planning on running rubber in the tops. There seem to be plenty of fast cars running rubber in the top w/o any problems.


            I would box em though...

            Comment


            • #81

              Re: BBR's 83GT - turbo 302 time!

              Re: BBR's 83GT

              You know, I can't seem to find a real good reason to box the uppers. Theoretically it would make them stiffer, but to what gain? Why would they need to be torsionally stiffer?

              ???
              Life is short. Be a do'er and not a shoulda done'er.
              1983 Mustang GT 302/T5 http://www.bangshift.com/forum/forum...485-bbr-s-83gt
              1973 F-250 BBF Turbo Truck http://www.bangshift.com/forum/forum...uck-conversion
              1986 Ford Ranger EFI 545/C6 https://bangshift.com/forum/forum/ba...tooth-and-nail

              Comment


              • #82

                Re: BBR's 83GT - turbo 302 time!

                Re: BBR's 83GT

                Do you plan on running a rear swaybar? Wondering because those lower arms don't have the mounts for one. If you get a set of uppers with a rod end to match the lowers, binding shouldn't be a problem.

                I just ordered part# UPI 101517-R, all four with rod ends and swaybar mounts for $364.95 from Summit.

                There are soooo many brands to choice from, it starts to get cloudy which to pick.

                The Ranger rotors are a good swap but, look for a set of complete spindles from a 94-04 SN-95, they swap over and open out a lot of big brake options.
                Jeremy George in Windsor NY

                Comment


                • #83

                  Re: BBR's 83GT - turbo 302 time!

                  Re: BBR's 83GT

                  I was not going to run rear sway bar on this car. It's not much of a sway bar anyway. lol

                  The Ranger rotors have been fine for me for the past 22 years on all the Ranger's I have owned, so I suspect they will be all right on this car.

                  Hopefully this weekend I can get the Ranger out of the shop!!!!!
                  Life is short. Be a do'er and not a shoulda done'er.
                  1983 Mustang GT 302/T5 http://www.bangshift.com/forum/forum...485-bbr-s-83gt
                  1973 F-250 BBF Turbo Truck http://www.bangshift.com/forum/forum...uck-conversion
                  1986 Ford Ranger EFI 545/C6 https://bangshift.com/forum/forum/ba...tooth-and-nail

                  Comment


                  • #84

                    Re: BBR's 83GT - turbo 302 time!

                    Re: BBR's 83GT

                    Those lowers are just the ticket. You may find you'll need a Panhard bar to keep the axle in place - I did on mine. You have the right plan - from my perspective.

                    Dan

                    Comment


                    • #85

                      Re: BBR's 83GT - turbo 302 time!

                      Re: BBR's 83GT

                      IT'S FINALLY IN MY SHOP!!!!!!!!!!!!!

                      ;D ;D ;D ;D ;D ;D ;D
                      Life is short. Be a do'er and not a shoulda done'er.
                      1983 Mustang GT 302/T5 http://www.bangshift.com/forum/forum...485-bbr-s-83gt
                      1973 F-250 BBF Turbo Truck http://www.bangshift.com/forum/forum...uck-conversion
                      1986 Ford Ranger EFI 545/C6 https://bangshift.com/forum/forum/ba...tooth-and-nail

                      Comment


                      • #86

                        Re: BBR's 83GT - turbo 302 time!

                        Re: BBR's 83GT

                        IT'S FINALLY IN MY SHOP!!!!!!!!!!!!!

                        ;D ;D ;D ;D ;D ;D ;D
                        Thats a good feeling, I know!!!

                        Hard to believe February is almost here.
                        Jeremy George in Windsor NY

                        Comment


                        • #87

                          Re: BBR's 83GT - turbo 302 time!

                          Re: BBR's 83GT

                          Photographic evidence

                          Life is short. Be a do'er and not a shoulda done'er.
                          1983 Mustang GT 302/T5 http://www.bangshift.com/forum/forum...485-bbr-s-83gt
                          1973 F-250 BBF Turbo Truck http://www.bangshift.com/forum/forum...uck-conversion
                          1986 Ford Ranger EFI 545/C6 https://bangshift.com/forum/forum/ba...tooth-and-nail

                          Comment


                          • #88

                            Re: BBR's 83GT - turbo 302 time!

                            Re: BBR's 83GT

                            That's great. I've got a fox body up in the air at my shop right now too. '86 SVO

                            Comment


                            • #89

                              Re: BBR's 83GT - turbo 302 time!

                              Re: BBR's 83GT

                              Damn I love a deal!

                              No more hyper pistons for me! Snagged some Probe's for a nice nice price!

                              ;D ;D ;D
                              Life is short. Be a do'er and not a shoulda done'er.
                              1983 Mustang GT 302/T5 http://www.bangshift.com/forum/forum...485-bbr-s-83gt
                              1973 F-250 BBF Turbo Truck http://www.bangshift.com/forum/forum...uck-conversion
                              1986 Ford Ranger EFI 545/C6 https://bangshift.com/forum/forum/ba...tooth-and-nail

                              Comment


                              • #90

                                Re: BBR's 83GT - turbo 302 time!

                                Re: BBR's 83GT

                                Is that the original motor?

                                83-92 5.0l H.O. motors have TRW forged pistons.

                                Comment
