  • Caveman's 'Anti-Rescue' rig '74 4x4

    Building it so I can go out and venture to the hard-to-get-to places.

    Not to rescue others, but to rescue my sanity by getting away from it all.

    Click image for larger version

Name:	IMG_0453.jpg
Views:	2
Size:	48.5 KB
ID:	879421

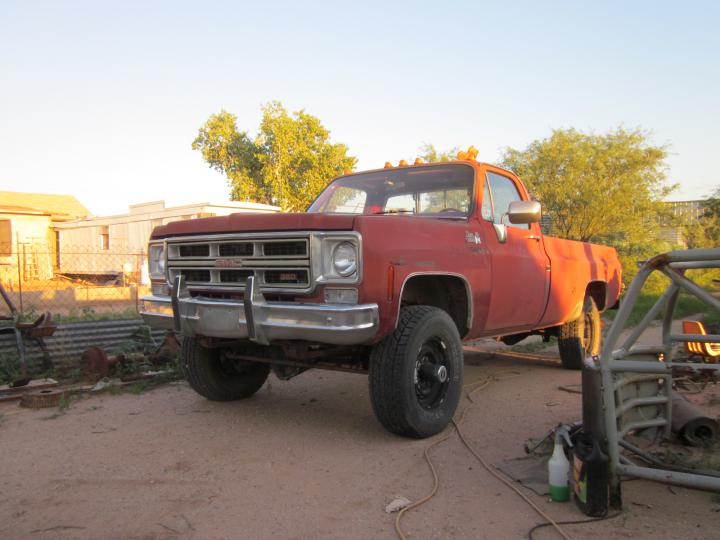

    3/4 Ton with an SM465 four speed, an NP205 transfer case, a Dana 60 up front and a 14-bolt out back.

    This pic is pre-trip, just prior to the aborted 'Red Ball Express' of last Labor Day week.

    Lots more to come.
    Last edited by Caveman Tony; December 2, 2012, 10:43 PM.
    Yes, I'm a CarJunkie... How many times would YOU rebuild the same engine before getting a crate motor?





  • #2
    I tried to keep up w/Red Ball Express thread, did you get the truck home or is it still in AZ?
    http://www.bangshift.com/forum/showt...n-block-wanted

    http://www.bangshift.com/forum/showt...-Blue-Turd(le)

    Comment


    • #3
      Looks great. Lets see more!
      Previously HoosierL98GTA

      Comment


      • #4
        Click image for larger version

Name:	1 why's it run rough.jpg
Views:	1
Size:	51.0 KB
ID:	865349

        Hmmm... it's running a little rough... wonder why..
        This was a pic in AZ the day I arrived ...pre-Red Ball...

        Decided to swap out the 5.13's for the trip (anything for some mpg), got a junkyard 14 bolt with some 3.73s. Nice.... Late night swap thrash, but it is cooler in AZ at 10pm.
        Click image for larger version

Name:	1 rear swappin.jpg
Views:	1
Size:	46.0 KB
ID:	865350
        No, that jack is not on plywood... just dirt. The dirt is THAT hard out there.

        This was 90 feet behind me while i was working on the swap
        Click image for larger version

Name:	1 big cactus.jpg
Views:	1
Size:	58.6 KB
ID:	865351
        Last edited by Caveman Tony; December 3, 2012, 09:55 PM.
        Yes, I'm a CarJunkie... How many times would YOU rebuild the same engine before getting a crate motor?




        Comment


        • #5
          Click image for larger version

Name:	1 dammit...Brakejob!.jpg
Views:	1
Size:	66.4 KB
ID:	865352

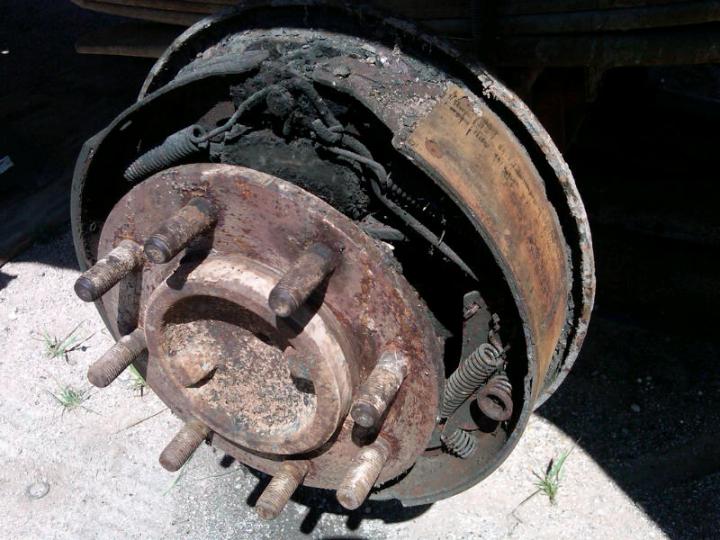

          I shouldn't have even pulled the drums. Brake JOB! Ugh.


          A few other pics of general inspection...

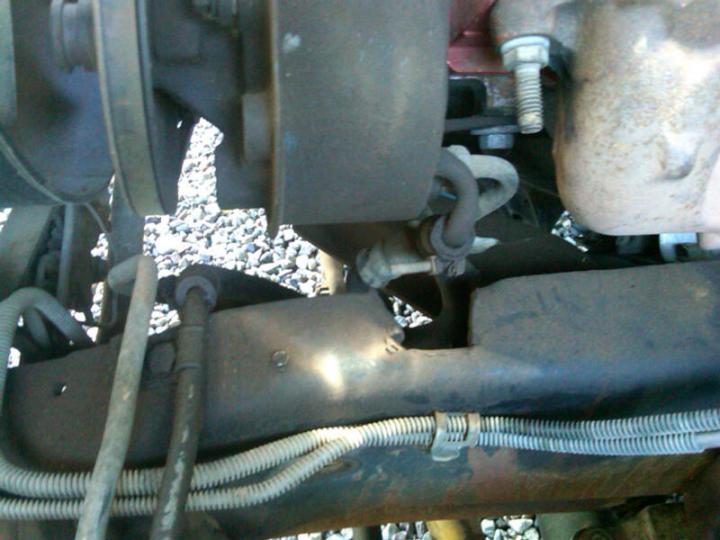

          Why the hell the prev owner NOTCHED the frame for the power steering hoses, I dunno. But I'd like to kick his ass.
          Click image for larger version

Name:	1 why the hell did you guys notch the frame.jpg
Views:	1
Size:	51.2 KB
ID:	865353

          This guy was watching me do the brakejob.
          Click image for larger version

Name:	1 great horny toads.jpg
Views:	1
Size:	113.5 KB
ID:	865354

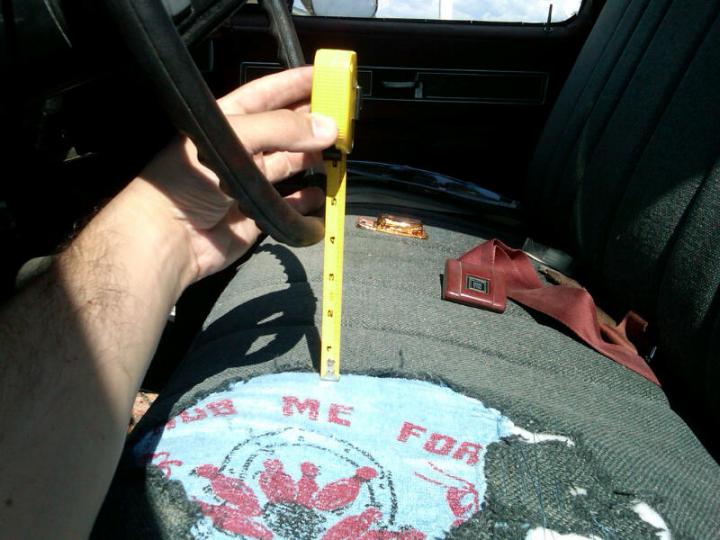

          A tilt column is on the long term list... but for now, I can't get in and out with 3.5" of legroom... Problem.
          Click image for larger version

Name:	1 problem.jpg
Views:	1
Size:	56.1 KB
ID:	865355

          Solution:
          Click image for larger version

Name:	1 the solution.jpg
Views:	1
Size:	59.1 KB
ID:	865356

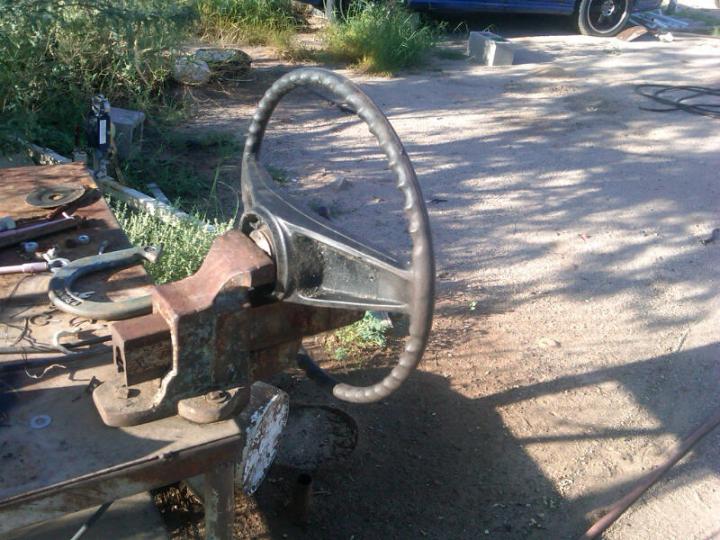

          pull the wheel, toss it in the vice...
          Click image for larger version

Name:	1 pre-whack.jpg
Views:	1
Size:	76.4 KB
ID:	865357

          Forgot to take pics of it post-whack. Suffice to say, its a cross between an F1 steering wheel and an egg shaped mess.

          More to come...
          Yes, I'm a CarJunkie... How many times would YOU rebuild the same engine before getting a crate motor?




          Comment


          • #6
            Originally posted by Caveman Tony View Post
            pull the wheel, toss it in the vice...
            [ATTACH=CONFIG]15786[/ATTACH]

            Forgot to take pics of it post-whack. Suffice to say, its a cross between an F1 steering wheel and an egg shaped mess.

            More to come...
            Glad I'm not the only one that takes the direct approach.
            Escaped on a technicality.

            Comment


            • #7
              LT 4 spokes work great there...gets my fat gut away so I can get in and STEER!

              Comment


              • #8
                I did something similar to the top half of the steering in my '69 Impala SS during crash avoidance in my last street race. The result was my fingers smashed between the wheel and the dash pad. I also gained gut room because I broke the back of the seat. Neither of which improved the drivability of the car.
                BS'er formally known as Rebeldryver

                Resident Instigator

                sigpic

                Comment


                • #9
                  Originally posted by 68scott385 View Post
                  I tried to keep up w/Red Ball Express thread, did you get the truck home or is it still in AZ?

                  When we dropped a valve before breakfast on DAY FREAKING ONE of the trip, Dad & I threw our hands up. We punted.

                  Spent way too much on last-minute return tickets, (that SUCKED) and called the shipper (also serious SUCKAGE). The truck arrived in MA around early Oct, IIRC.

                  Prep for the engine yank started immediately.
                  Last edited by Caveman Tony; December 4, 2012, 06:37 PM.
                  Yes, I'm a CarJunkie... How many times would YOU rebuild the same engine before getting a crate motor?




                  Comment


                  • #10
                    Click image for larger version

Name:	1 slightly oxidized paint.jpg
Views:	1
Size:	36.9 KB
ID:	865373

                    Paint is slightly oxidized.


                    Just another AZ sunset... while I sit in the dirt, swearing in 100-deg heat, cursing escapee drum brake springs.
                    Click image for larger version

Name:	1 just another AZ sunset.jpg
Views:	1
Size:	33.3 KB
ID:	865374

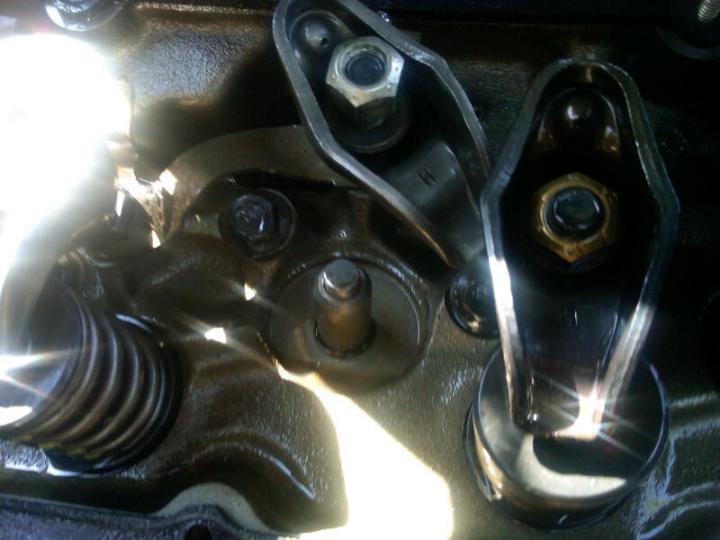

                    Why's it running rough? ...Uh, that ain't good.
                    Click image for larger version

Name:	1 Uh, not good.jpg
Views:	1
Size:	57.5 KB
ID:	865375
                    Last edited by Caveman Tony; December 4, 2012, 06:51 PM.
                    Yes, I'm a CarJunkie... How many times would YOU rebuild the same engine before getting a crate motor?




                    Comment


                    • #11
                      So... figured out why it was running rough... ... sh*t.
                      ...... which begs the question... "where's the rest?"
                      ...Probably in the pan.
                      Click image for larger version

Name:	1 where's the rest.jpg
Views:	1
Size:	43.8 KB
ID:	865376

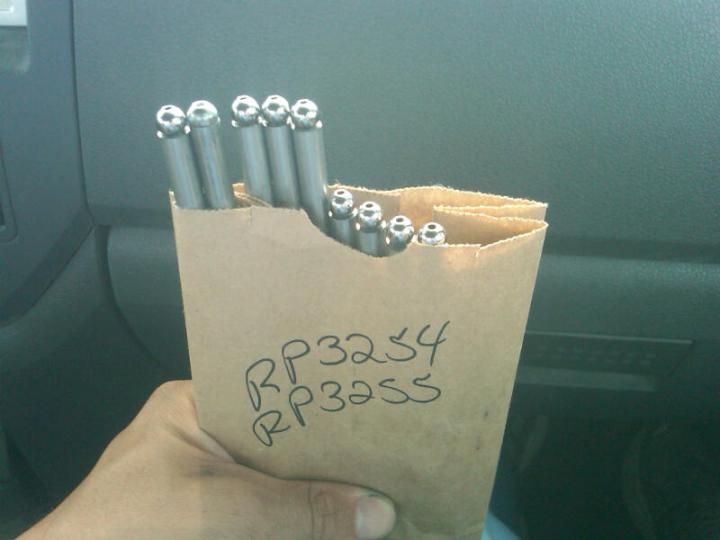

                      Grabbed a new set of swizzle-sticks, and plopped 'em in.
                      Click image for larger version

Name:	1 new twizzle sticks.jpg
Views:	1
Size:	32.1 KB
ID:	865377

                      Runs MUCH better... but why'd it do that? (poss answers: 1. valve stuck from sitting in AZ desert for 5 years, bending it 2. Dumbass who built it (me) re-used old pushrods

                      Click image for larger version

Name:	1 loaded up.jpg
Views:	1
Size:	61.6 KB
ID:	865378

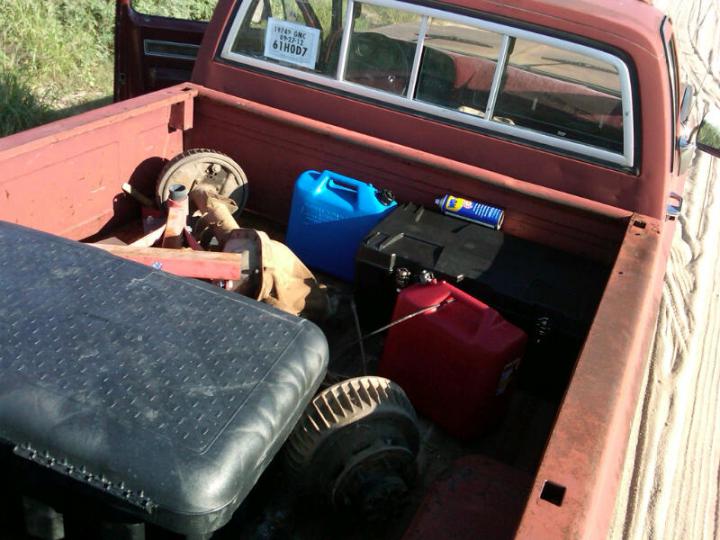

                      Loaded up with old 5.13 rear, water, gas, tools, spares, etc... anxious to roll out (despite a questionable motor.)
                      Yes, I'm a CarJunkie... How many times would YOU rebuild the same engine before getting a crate motor?




                      Comment


                      • #12
                        Originally posted by Caveman Tony View Post
                        [ATTACH=CONFIG]15803[/ATTACH]


                        Why's it running rough? ...Uh, that ain't good.
                        [ATTACH=CONFIG]15806[/ATTACH]
                        I have seen that view too many times.
                        BS'er formally known as Rebeldryver

                        Resident Instigator

                        sigpic

                        Comment


                        • #13
                          tough old rig. that notch.. it seems I had heard of it. those years were still pounding maine roads when I was in high school.
                          the big thing was cast iron transfers.. the rest is very hard, not very comfortable..and leaning roads , not friendly.

                          5.13 is insane..did not know that existed.

                          there is some years with a 5.5 inch spread in the 8 lug, those fit old subarus..pretty sure that was rare ford, but your rig looks similar to the big pattern, 1 ton looking.

                          gmc meant something in those years.
                          Previously boxer3main
                          the death rate and fairy tales cannot kill the nature left behind.

                          Comment


                          • #14

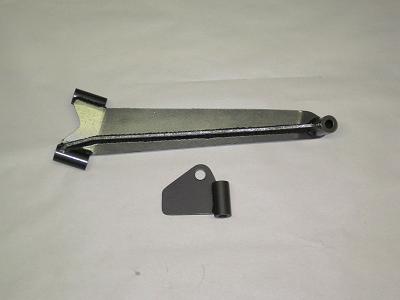

                            So, this era of GM rigs have a nasty tendency to crack around the steering box. Since the engine is out, I'll be inspecting the frame & installing this brace from ORD, aka, OffRoad Design. These guys have been thrashing on GM rigs and have a myriad of fixes for 'em.

                            http://www.offroaddesign.com/catalog/steeringkit.htm

                            Click image for larger version

Name:	73-80%20box%20brace.jpg
Views:	1
Size:	23.0 KB
ID:	865409
                            Yes, I'm a CarJunkie... How many times would YOU rebuild the same engine before getting a crate motor?




                            Comment


                            • #15
                              So, all loaded up. Went to pick up Dad at hotel (he flew in late the night before) ready to roll out on a cross-country adventure.

                              It was running slightly rough, but still way better than before when it had the busted pushrod.

                              Click image for larger version

Name:	1 at hotel, before breakfast and valve dropmaggedon.jpg
Views:	1
Size:	69.2 KB
ID:	865410

                              It was early AM, Dad & I were hungry for some breakfast... so we hopped in the truck and headed to the restaurant across the street.

                              As we pulled out into traffic, it sputtered, made some ugly sounds like a spoon in a blender, and it died. Luckily, I had enough momentum to roll into the parking lot.

                              Restart? Uh, no.

                              I figured I'd let it cool down some, and eat some breakfast, and let my brain cool off.

                              After breakfast, I called my buddy for a jump (I had killed the battery trying to restart it) and we popped the valvecovers.

                              Merry Christmas. *&^%$#@!!!!

                              Click image for larger version

Name:	1 uh, that ain't right.jpg
Views:	2
Size:	43.7 KB
ID:	865411
                              Yes, I'm a CarJunkie... How many times would YOU rebuild the same engine before getting a crate motor?
