  • STINEY
    Dirt Path Taker
    • Dec 2007
    • 8613

    #451
    95.5"?

    Wow. 4.5" shorter wheelbase than my green sandrail.....but you have that front overhang issue that I don't have to contend with.

    Of all the paths you take in life - make sure a few of them are dirt.

    Comment

    • milner351
      No Life Outside BangShift.com
      • Nov 2007
      • 16033

      #452
      Nice looking welds - there's more metal in that differential cover than in most Kia's - well done indeed. Is that filler / bung an off the shelf item? I like that set up allot.
      As with all your builds - this thing is going to be really nice - I like the idea of a built in toolbox in the seat platform. Why all the round tubing under the passenger seat?
      There's always something new to learn.

      Comment

      • SuperBuickGuy
        No Life Outside BangShift.com
        • Jan 2008
        • 32052

        #453
        the bung came with the cover I started with
        Doing it all wrong since 1966

        Comment

        • SuperBuickGuy
          No Life Outside BangShift.com
          • Jan 2008
          • 32052

          #454
          swap meet buy,

          air shocks I won't use under the '40 (but use for test fitting and trading purposes)... they were too cheap to pass up

          back stock


          headlights with integral signals


          I bought two EFI
          one is a commander 950



          it came with a throttle body... seems like overkill, for this system, but for the price (less than the wiring harness cost).. how could I go wrong? came with 2 fuel pumps too


          the other system was less than the price of a fuel pump (which it came with a new one)

          the sensors alone made this a good deal

          and I have another small project... this is for the '40... on-board air. I helped a friend install one in the mid-80s, and I loved how much air it put out.... anyway, this was $10.


          in other news, brackets arrived

          Doing it all wrong since 1966

          Comment

          • STINEY
            Dirt Path Taker
            • Dec 2007
            • 8613

            #455
            Is that a YORK compressor? We had one converted from air conditioning to air compressing on a '70 Wagoneer (with Buick 350), worked awesomely.
            Of all the paths you take in life - make sure a few of them are dirt.

            Comment

            • SuperBuickGuy
              No Life Outside BangShift.com
              • Jan 2008
              • 32052

              #456
              york knock off... dinsomethingoranother....
              Doing it all wrong since 1966

              Comment

              • Deaf Bob
                No Life Outside BangShift.com
                • Feb 2012
                • 19255

                #457
                AC compressor off a Mopar? Used 2 in my time.. Just flip a switch and idle away!
                They like smaller rather than larger ranks.. 10 ishy gallons vs 30-40.
                Semi air brake tanks work good!
                Last edited by Deaf Bob; April 10, 2015, 09:15 PM.

                Comment

                • SuperBuickGuy
                  No Life Outside BangShift.com
                  • Jan 2008
                  • 32052

                  #458
                  biggest issue with the pump is I need a serpentine pulley... the rest should be easy to set up
                  Doing it all wrong since 1966

                  Comment

                  • SuperBuickGuy
                    No Life Outside BangShift.com
                    • Jan 2008
                    • 32052

                    #459
                    Originally posted by Deaf Bob View Post
                    AC compressor off a Mopar? Used 2 in my time.. Just flip a switch and idle away!
                    They like smaller rather than larger ranks.. 10 ishy gallons vs 30-40.
                    Semi air brake tanks work good!

                    the only real issue I've heard with these is they will burn up eventually due to lack of oil... which has me thinking I should put an oiler on the intake side, good idea on the tank. I was slightly miffed, there was a guy selling a small viair tank for $10 - but wasn't there... I'd have used that (it was aluminum)... that said, I got some really good deals on things I needed.
                    Doing it all wrong since 1966

                    Comment

                    • SuperBuickGuy
                      No Life Outside BangShift.com
                      • Jan 2008
                      • 32052

                      #460
                      yupdate

                      ride height

                      here's where things started... note the spring is upside down

                      after a bunch of cutting and changing, here's where it ended


                      I still have to put a plate under the bottom of the spring, but that adjusts/fine tunes ride height, and until the front is completely done... I don't know exactly what that is.

                      and I tacked the brakes on

                      flex

                      now to the front


                      for about 10 reasons, these brackets don't work

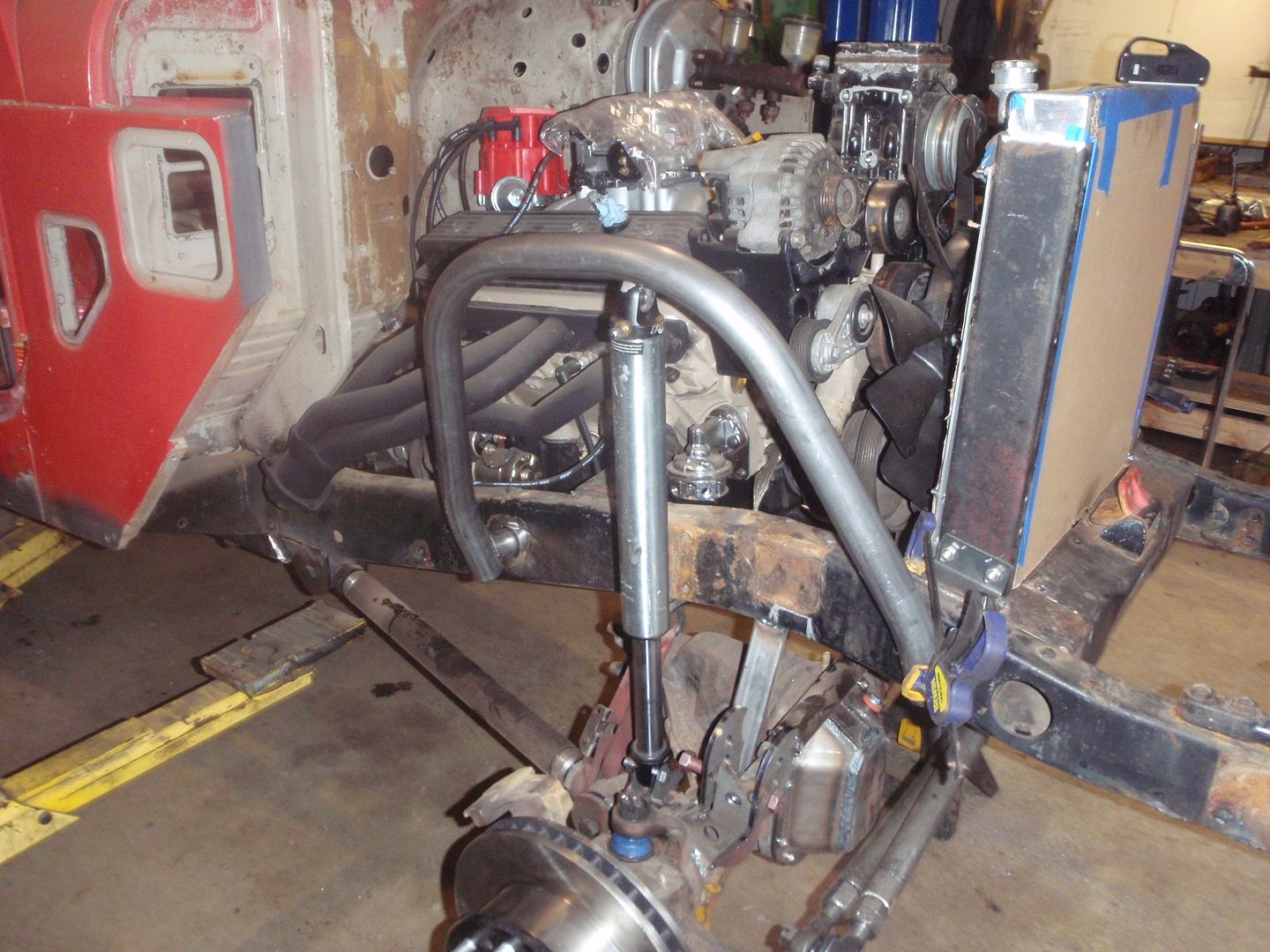

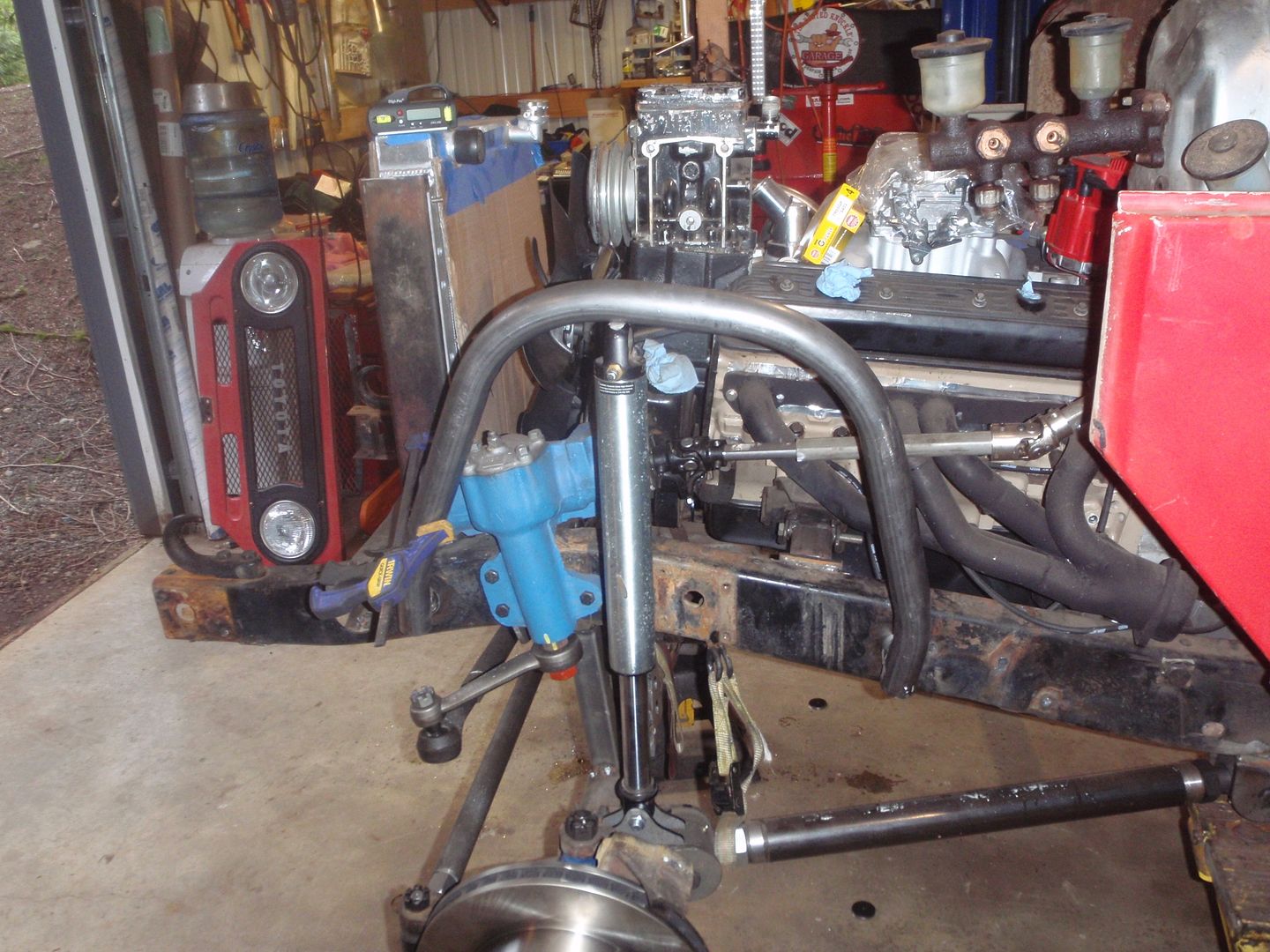

                      so time to build some hoops



                      kind of sort of where it needs to be


                      this is round 2


                      mounting tubes


                      round 3 (note the kick in on the bottoms)




                      tight, yet plenty of clearance




                      I have a friend who works at a laser cutting shop - I had him cut these out for me


                      an entire sheet of them.... quite handy


                      there we go, using the air shock as mockup


                      and someone needs to mention to the seller that 8" is not 12" .... they're 8" air shocks (which I figured when I bought them, but for the price, why argue?)

                      Doing it all wrong since 1966

                      Comment

                      • JOES66FURY
                        Deputy Director Procrastination & Incompetence Dept.
                        • Jun 2009
                        • 12184

                        #461
                        looking good....
                        If you can leave two black stripes from the exit of one corner to the braking zone of the next, you have enough horsepower. - Mark Donohue

                        Comment

                        • STINEY
                          Dirt Path Taker
                          • Dec 2007
                          • 8613

                          #462
                          I'll second that sentiment Joe. Great to see it sprung and on its own.




                          Oh, and I've said it before drat you SuperBuickGuy and your powers of project misdirection! After 16 years this got back on the burners.


                          Of all the paths you take in life - make sure a few of them are dirt.

                          Comment

                          • SuperBuickGuy
                            No Life Outside BangShift.com
                            • Jan 2008
                            • 32052

                            #463
                            Originally posted by STINEY View Post
                            I'll second that sentiment Joe. Great to see it sprung and on its own.




                            Oh, and I've said it before drat you SuperBuickGuy and your powers of project misdirection! After 16 years this got back on the burners.


                            you'd think there would be a thread about that on here....

                            and you're welcome
                            Doing it all wrong since 1966

                            Comment

                            • STINEY
                              Dirt Path Taker
                              • Dec 2007
                              • 8613

                              #464
                              Tanks!

                              On a slightly related note............if you pressure wash first, and let some water drip on your shop concrete floor - cleaning up the spilled ATF is much much easier as it floats on top of the water.

                              Just FYI.
                              Of all the paths you take in life - make sure a few of them are dirt.

                              Comment

                              • SuperBuickGuy
                                No Life Outside BangShift.com
                                • Jan 2008
                                • 32052

                                #465
                                Originally posted by STINEY View Post
                                Tanks!

                                On a slightly related note............if you pressure wash first, and let some water drip on your shop concrete floor - cleaning up the spilled ATF is much much easier as it floats on top of the water.

                                Just FYI.

                                it's also a really good way of seeing how good your balance is.... an ice skater, I am not
                                Doing it all wrong since 1966
