LT1 Motor swap saga

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • LT1 Motor swap saga

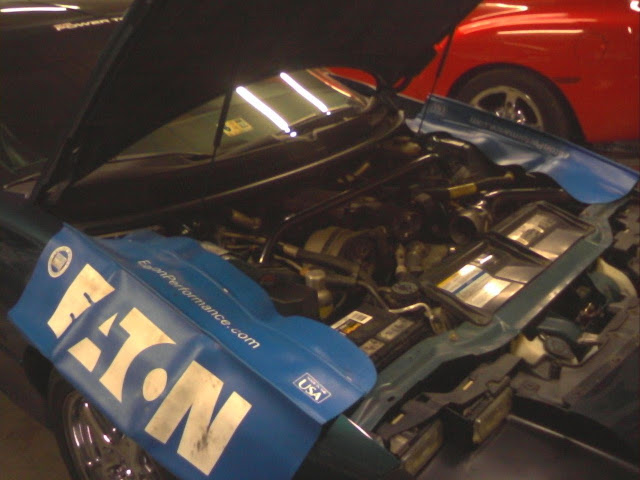

    As some of you might have seen the blog item, I blew the motor in my '95 Camaro. Missed third gear,,,,,and, "took 'er to the moon". I wasn't even racing anybody, just beating the snot out of it all by myself! Toys are ment to be broken.



    I obtained another motor with I beleave has 80,000 on it, and here is the tear down........

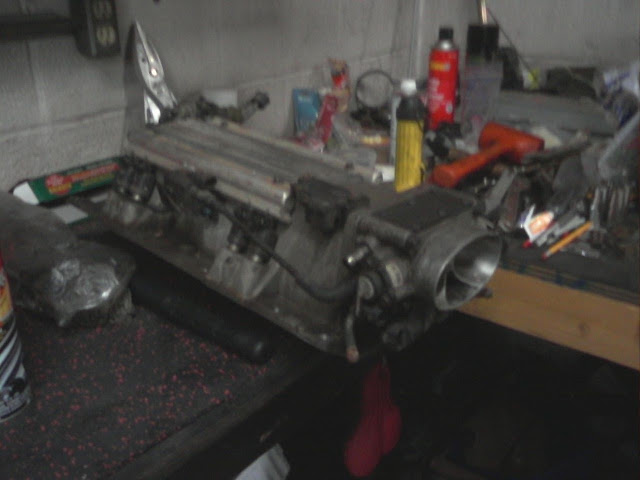

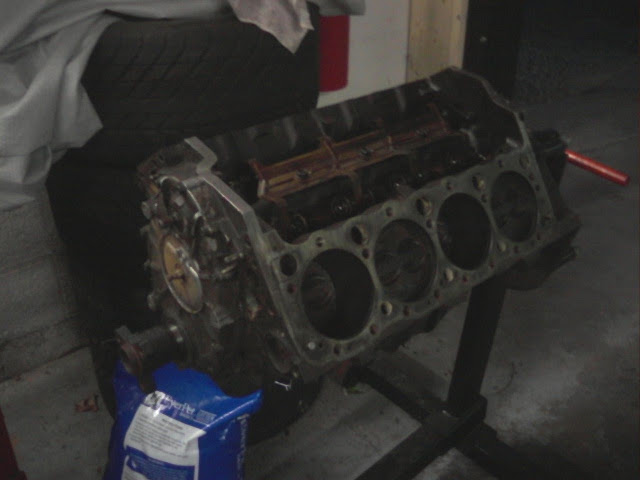

    $450 short block heads and intake





    Living the dream!

  • #2
    Re: LT1 Motor swap saga

    nice find. when the monte is turning 7k rpm i always hope this doesnt happen :P

    Comment


    • #3
      Re: LT1 Motor swap saga

      I only got half of my post up,,, so here is the rest from yesterday.

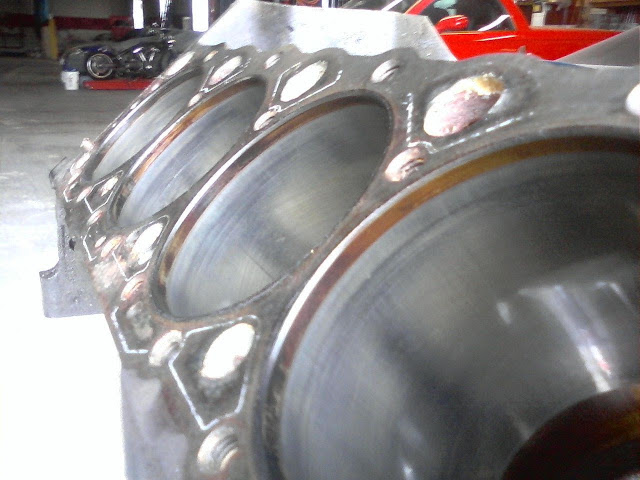

      Walls all look good, maybe no over bore



      This is typical bering wear through out the motor

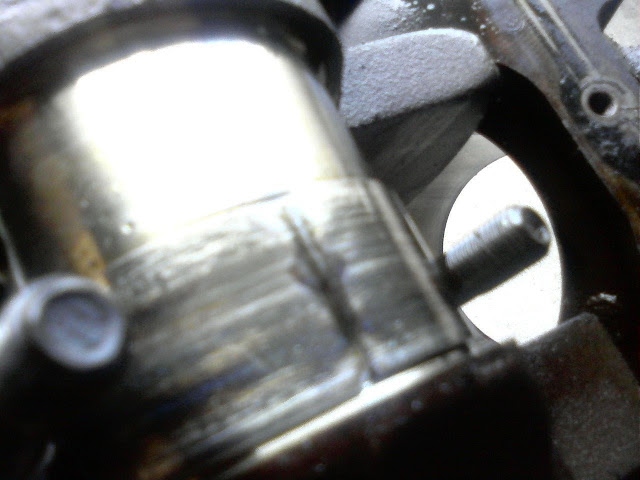

      Huston we have a problem...



      It figures the last rod, #8 had a spun berring



      You can see the burnishing on the outside of the halves, from spinning in the rod.



      It looks like it might clean up with a .010" cut. (That's .005" deep x 2 for dia.)



      The only other problem found was this broken cap bolt. the last .625" is still in the hole.



      Little more to do arround here, then off to the machine shop next week. Today I will clean up some flashing on the block with a grinder.

      Untill next time,
      Buddy

      Living the dream!

      Comment


      • #4
        Re: LT1 Motor swap saga

        Good stuff Buddy, keep 'em coming.
        "Somewhere the zebra is dancing". Garth Stein's The art of racing in the rain.

        Matt

        Comment


        • #5
          Re: LT1 Motor swap saga

          Great teardown pics Buddy, sorry for the issues, but that's life.
          I'll bet that SOB so-and-so knew he had a spun bearing, too !!
          >

          Looking forward to the machining and rebuild pics.
          ;)

          Comment


          • #6
            Re: LT1 Motor swap saga

            Good Stuff Buddy.....keep it coming. At least you caught the spun bearing before it was in the car.

            Seth
            200 mph or bust.......

            Comment


            • #7
              Re: LT1 Motor swap saga

              Are you going to do a tear down of the blown engine?
              Escaped on a technicality.

              Comment


              • #8
                Re: LT1 Motor swap saga

                looks like fun....

                BTW, the guy that works for me is selling his old (but freshened up) 383 short block....

                Comment


                • #9
                  Re: LT1 Motor swap saga

                  Yes I will do a tear down on the blown motor, it's gunna be nasty in that one. I will probably need a rod out of it anyway. I had talked to the guy that had the motor first, he had told me it had a tap he thought was up top, I thought for $450 was still a fair deal.
                  I will try to document everything, not too bad for cell phone photography. ;D
                  Living the dream!

                  Comment


                  • #10
                    Re: LT1 Motor swap saga

                    dam if you did not live in like the oppisite end of va!!!!!!!!!

                    o yea i have a friend that has lots of used lt1 stuff if you need something

                    Comment


                    • #11
                      Re: LT1 Motor swap saga

                      Hm, busted main bolt - I wonder what would cause that?

                      Sorry to see you have a spun rod bearing to deal with - but hopefully the machine shop will treat you right.

                      Thanks for the write up - keep 'em comin!
                      There's always something new to learn.

                      Comment


                      • #12
                        Re: LT1 Motor swap saga

                        I have not seen that before either, with nothing catastrophic. Everything else looks good. ???
                        Living the dream!

                        Comment


                        • #13
                          Re: LT1 Motor swap saga

                          I've actually seen 3 or 4 LT's with a busted main bolt. All were bone stock, not hot rodded and with the factory bolts. None showed major signs of detonation, just very minor cap walk. I just wonder if the metal in the main bolts has changed through the years. I never ran into that with an early SBC.

                          Comment


                          • #14
                            Re: LT1 Motor swap saga

                            Really pretty good pics for a cell phone. Definitly want to see the tear down of the dead one.

                            Comment


                            • #15
                              Re: LT1 Motor swap saga

                              damn, i almost bought a 400 today.

                              guy had the mains finger tight...found both spun bearings & tried to get it for free...

                              maybe he'll call...
