I recently bought an Innovate MTX-L AFR gauge in preparation for a future MegaSquirt installation.
Today I was able to hook it up into my '73 Dodge Dart and check it's readings at various rpms and engine-loads.
Now remember, this car runs on propane, so a "15.5:1" A/F ratio is supposed to be the 'stoichiometric' ratio here.
Some interesting stuff surfaced (for me):
Idling: 14.5 - 15.5
No-load high rpm: 14.5 - 15.5
Throttle release from high rpm: upto 22+
During driving I noticed the following:
Steady speed: 14.8 - 15.0
Steady speed, with very little extra throttle: 14.0 - 14.5
Normal acceleration: 16.0
Firm acceleration: 17.0
When I squeeze the PCV-line to the carb closed, the AFR drops to 13.0.

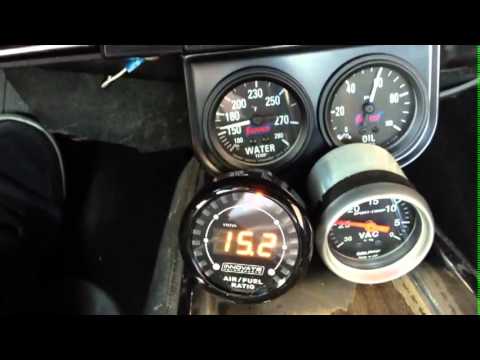

I've also shot some video of the motor running with the car standing still in Neutral (around the 2:00 mark I put the car in Drive)
Today I was able to hook it up into my '73 Dodge Dart and check it's readings at various rpms and engine-loads.
Now remember, this car runs on propane, so a "15.5:1" A/F ratio is supposed to be the 'stoichiometric' ratio here.
Some interesting stuff surfaced (for me):
Idling: 14.5 - 15.5
No-load high rpm: 14.5 - 15.5
Throttle release from high rpm: upto 22+
During driving I noticed the following:
Steady speed: 14.8 - 15.0
Steady speed, with very little extra throttle: 14.0 - 14.5
Normal acceleration: 16.0
Firm acceleration: 17.0
When I squeeze the PCV-line to the carb closed, the AFR drops to 13.0.
I've also shot some video of the motor running with the car standing still in Neutral (around the 2:00 mark I put the car in Drive)
