  • 2001 Dodge Dakota

    Hey guys I'm new here and thought that I would make a build thread for my truck. It is a 2001 Dodge Dakota v6 that I inherited from my grandfather.

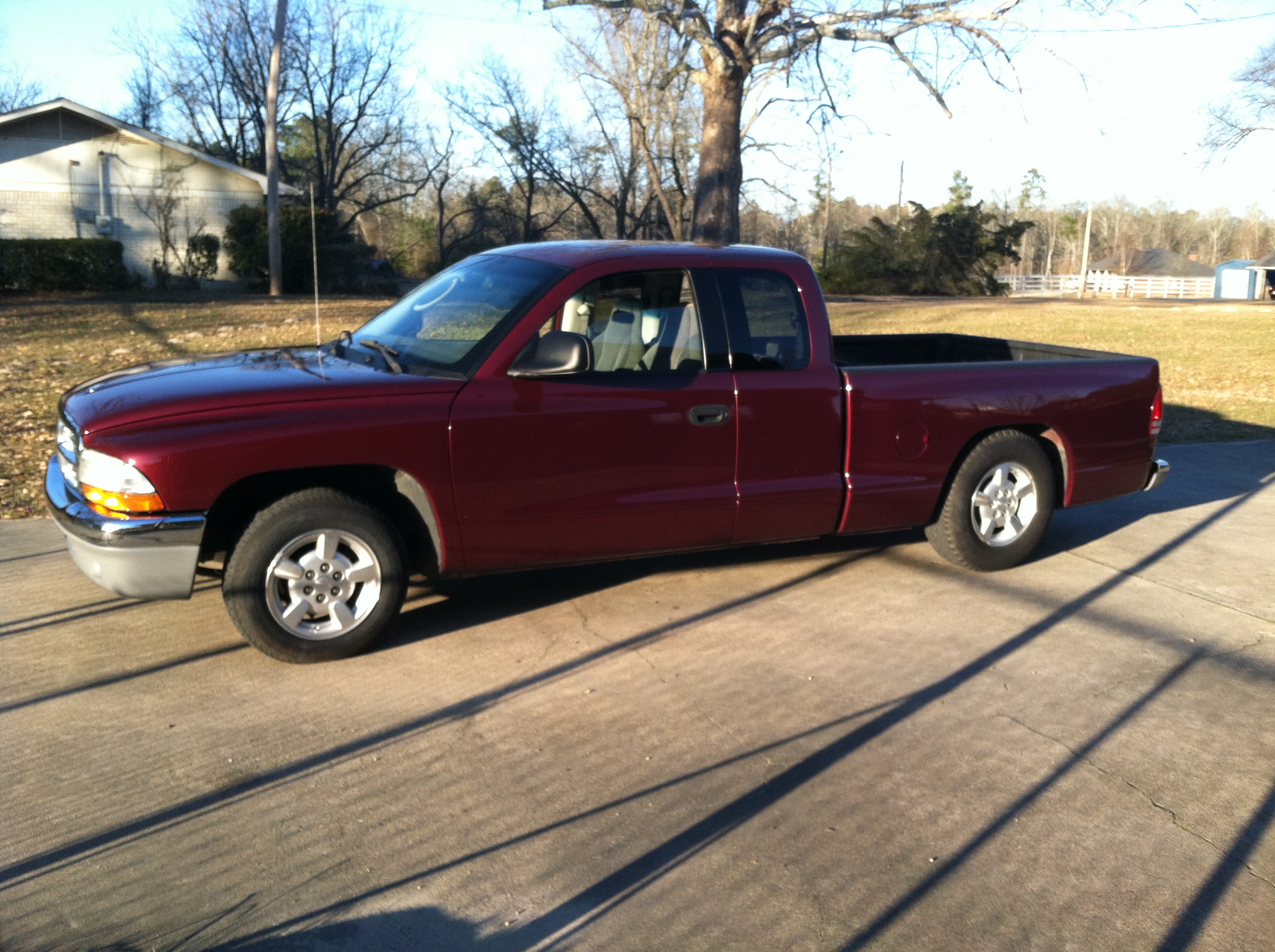

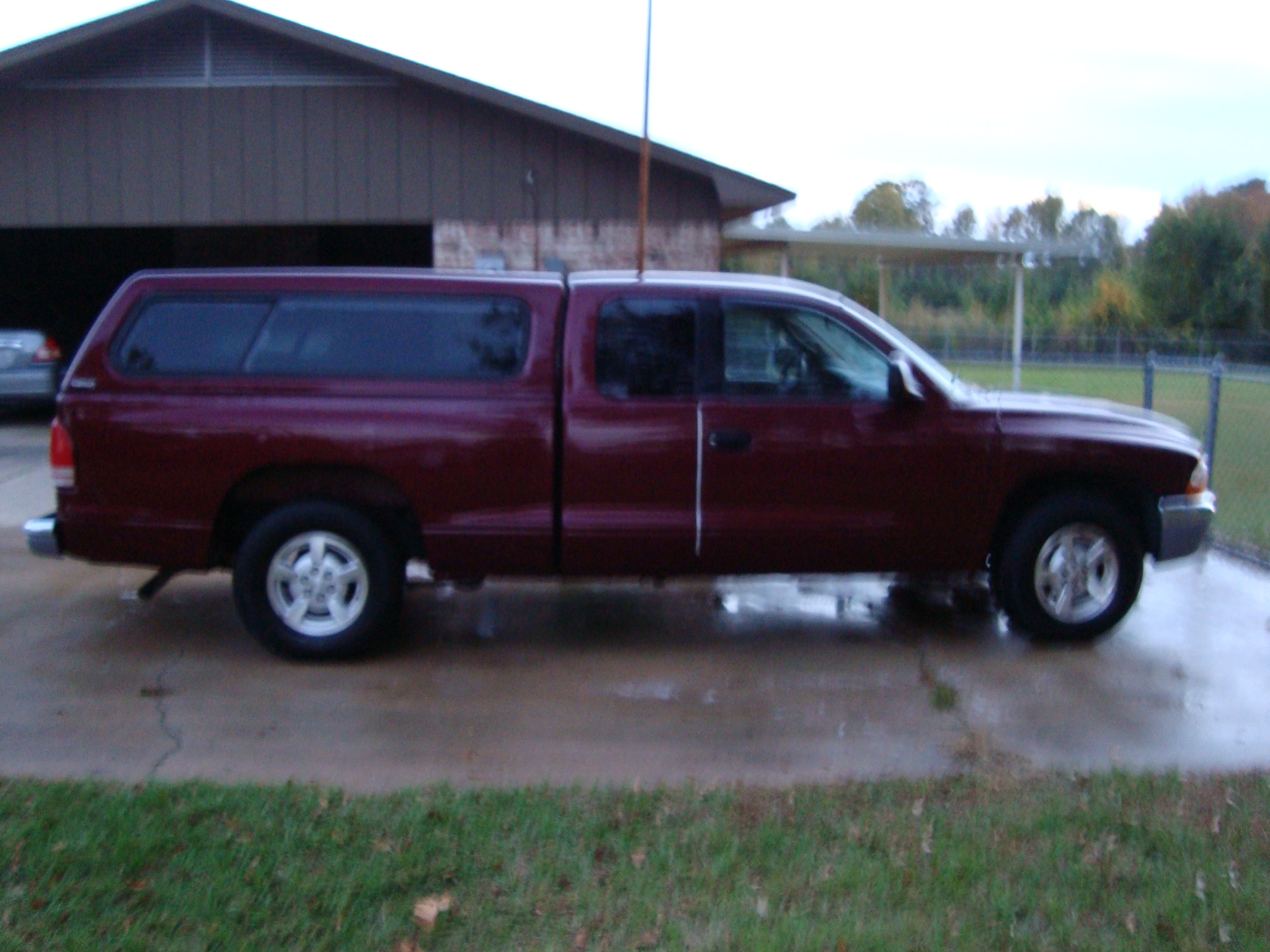

    Here is what it looked like when I got it.


    Click image for larger version

Name:	DSC00876.JPG
Views:	7
Size:	1.11 MB
ID:	1124148
    Click image for larger version

Name:	DSC00879.JPG
Views:	1
Size:	1.15 MB
ID:	1124157
    I then built a sub box and installed the sound system. I don't have pics they were on my last phone. I also removed the camper shell so that I could actually use the bed. About a year ago I lowered it 4 inches in the rear and 3 inches in the front but the springs only lowered it 1.5 inches because they are v8 springs. I was thinking ahead.
    Click image for larger version

Name:	IMG_0057[1].JPG
Views:	2
Size:	1.77 MB
ID:	1124150

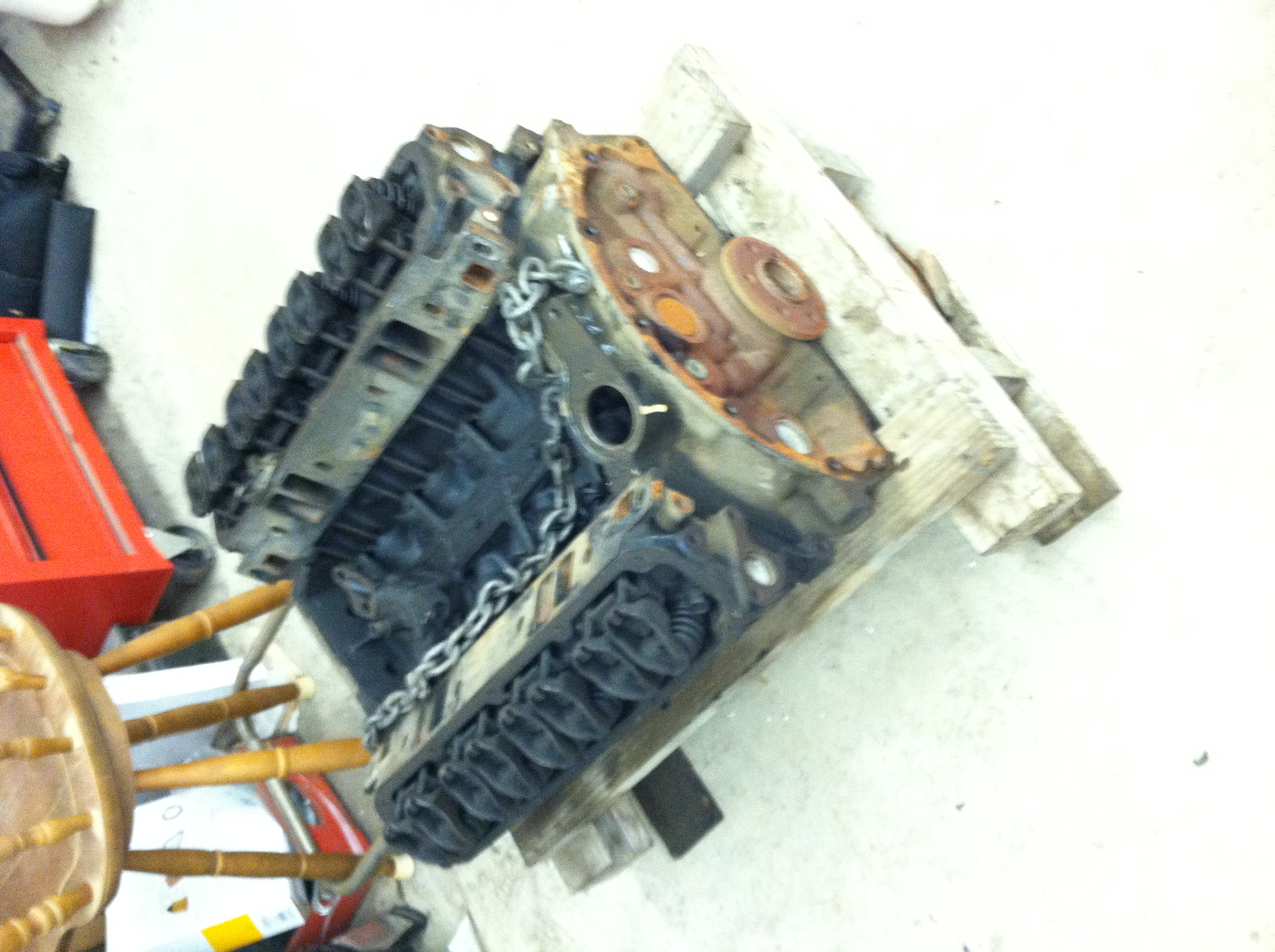

    I bought a 360 magnum from a guy that said it had overheated and wouldn't start.
    Click image for larger version

Name:	IMG_0337[1].JPG
Views:	1
Size:	1.39 MB
ID:	1124151

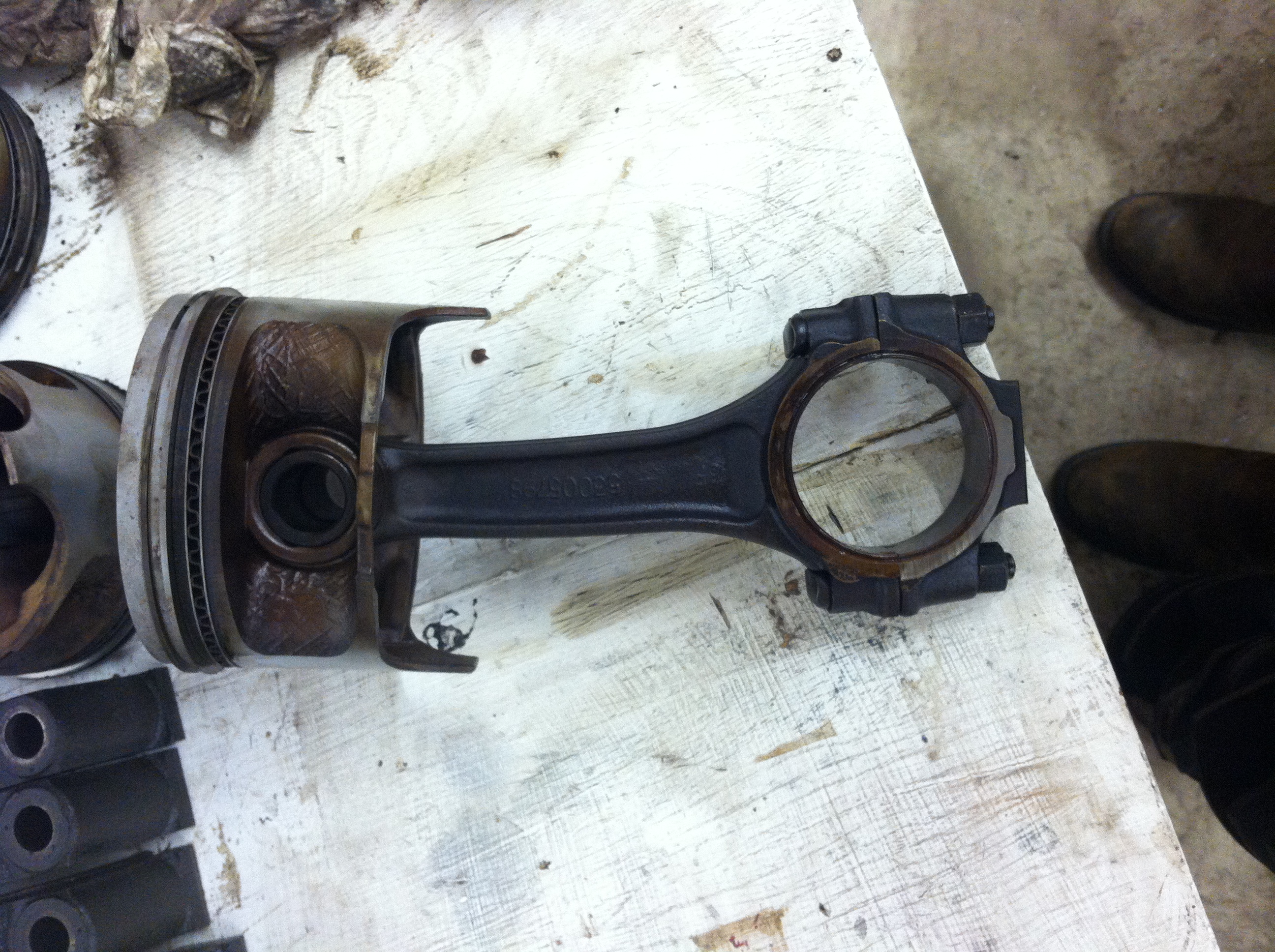

    I tore into it and this is what I found. A bent rod.
    Click image for larger version

Name:	IMG_0345[1].JPG
Views:	1
Size:	1.99 MB
ID:	1124152
    The block was sent to the machine shop and bored .020 over. And I painted it Hemi orange.
    Click image for larger version

Name:	IMG_0480[1].JPG
Views:	1
Size:	1.56 MB
ID:	1124153
    I was planning on a hot street/strip 360 but after watching Drag Week and bench racing I decided to spend a little bit more and get a Scat 4" crankshaft to go along with the Scat rods and Keith Black pistons(that I have yet to order). Since I don't like having my truck controlled by a computer I am going to put a carburetor on it. I bought a Painless wiring harness p/n 10101. I also got a free Powerbraid kit with it.
    Click image for larger version

Name:	IMG_0072[1].JPG
Views:	1
Size:	497.1 KB
ID:	1124154
    I bought some Enginequest replacement heads and began to port them.
    Before:
    Click image for larger version

Name:	IMG_0490[1].JPG
Views:	1
Size:	1.24 MB
ID:	1124155
    Not quite finished:
    Click image for larger version

Name:	IMG_0489[1].JPG
Views:	1
Size:	1.86 MB
ID:	1124156

    My goals for the truck(for now) are to run mid to high 11s in the quarter mile because I don't want to put a roll bar in it yet. I probably won't make Drag Week for several years because I just started college. I will try to make Power Tour next year though(assuming I can work fast enough)!
    Attached Files
    BBR likes this.

  • #2

    Re: 2001 Dodge Dakota

    Watching this closely because I have been thinking about a Dakota with G3 hemi power for a DW truck!
    Life is short. Be a do'er and not a shoulda done'er.
    1983 Mustang GT 302/T5 http://www.bangshift.com/forum/forum...485-bbr-s-83gt
    1973 F-250 BBF Turbo Truck http://www.bangshift.com/forum/forum...uck-conversion
    1986 Ford Ranger EFI 545/C6 https://bangshift.com/forum/forum/ba...tooth-and-nail

    Comment


    • #3

      Re: 2001 Dodge Dakota

      I thought about a Gen 3 Hemi but I don't feel like making motor mount in addition to long tube headers and notching the crossmember. If you do get one get a regular cab. They weigh quite a bit less than extended cabs.
      Last edited by Patrick98; September 21st, 2016, 07:57 AM.

      Comment


      • #4

        Re: 2001 Dodge Dakota

        I'm tall so I definitely want the extra room. Weight is not a big deal. Just need to make more power. haha.
        Life is short. Be a do'er and not a shoulda done'er.
        1983 Mustang GT 302/T5 http://www.bangshift.com/forum/forum...485-bbr-s-83gt
        1973 F-250 BBF Turbo Truck http://www.bangshift.com/forum/forum...uck-conversion
        1986 Ford Ranger EFI 545/C6 https://bangshift.com/forum/forum/ba...tooth-and-nail

        Comment


        • #5

          Re: 2001 Dodge Dakota

          I LOVED my '98 Dakota - 5.2/auto extended cab. I'd still have it except the track moved to over the mountains and I didn't think the Dak would do well pulling Mutt the Race Truck to Ohio several times/year. No useful input on your build - just that I like the trucks.

          Dan

          Comment


          • #6

            Re: 2001 Dodge Dakota

            What's the saying? One step forward, two steps back. I finished porting and polishing the exhaust on one head and was going to continue on to the other but I realized that the exhaust valve seats only had 2 angles on the other head. My dad broke out his seat grinding equipment and not a single valve seat is concentric to the valve guide on both heads. After correcting the seats I am probably going to have to put 2.02 valves in as the 1.92s sit too deep in the head. Click image for larger version

Name:	IMG_0511[1].JPG
Views:	1
Size:	1.39 MB
ID:	1124714 Click image for larger version

Name:	IMG_0512[1].JPG
Views:	1
Size:	1.65 MB
ID:	1124715

            Comment


            • #7

              Re: 2001 Dodge Dakota

              I haven't updated this thread in a while but I have made progress.
              The oil pump hits the main stud so I ground on it a little and cut the stud off and left the washer off.
              Click image for larger version

Name:	IMG_0027[1].JPG
Views:	1
Size:	391.3 KB
ID:	1160438

              Click image for larger version

Name:	IMG_0055[1].JPG
Views:	1
Size:	379.6 KB
ID:	1160439

              Click image for larger version

Name:	IMG_0083[1].JPG
Views:	1
Size:	1.71 MB
ID:	1160440

              I was tightening the oil pan bolts and got a little happy and broke the bolt off. This is the only time an easy out has ever worked for me.
              Click image for larger version

Name:	IMG_0097[1].JPG
Views:	1
Size:	1.74 MB
ID:	1160441

              For the valve train I used a Howards roller cam with factory replacement roller lifter, Crane cams rocker studs, Scorpion Chevy 1.5 roller rocker arms, Comp cams valve springs, and Ford 302 pushrods. My dad is working on making a stud girdle because the bottom of the rocker stud is 5/16.
              Click image for larger version

Name:	IMG_0122[1].JPG
Views:	1
Size:	2.21 MB
ID:	1160442

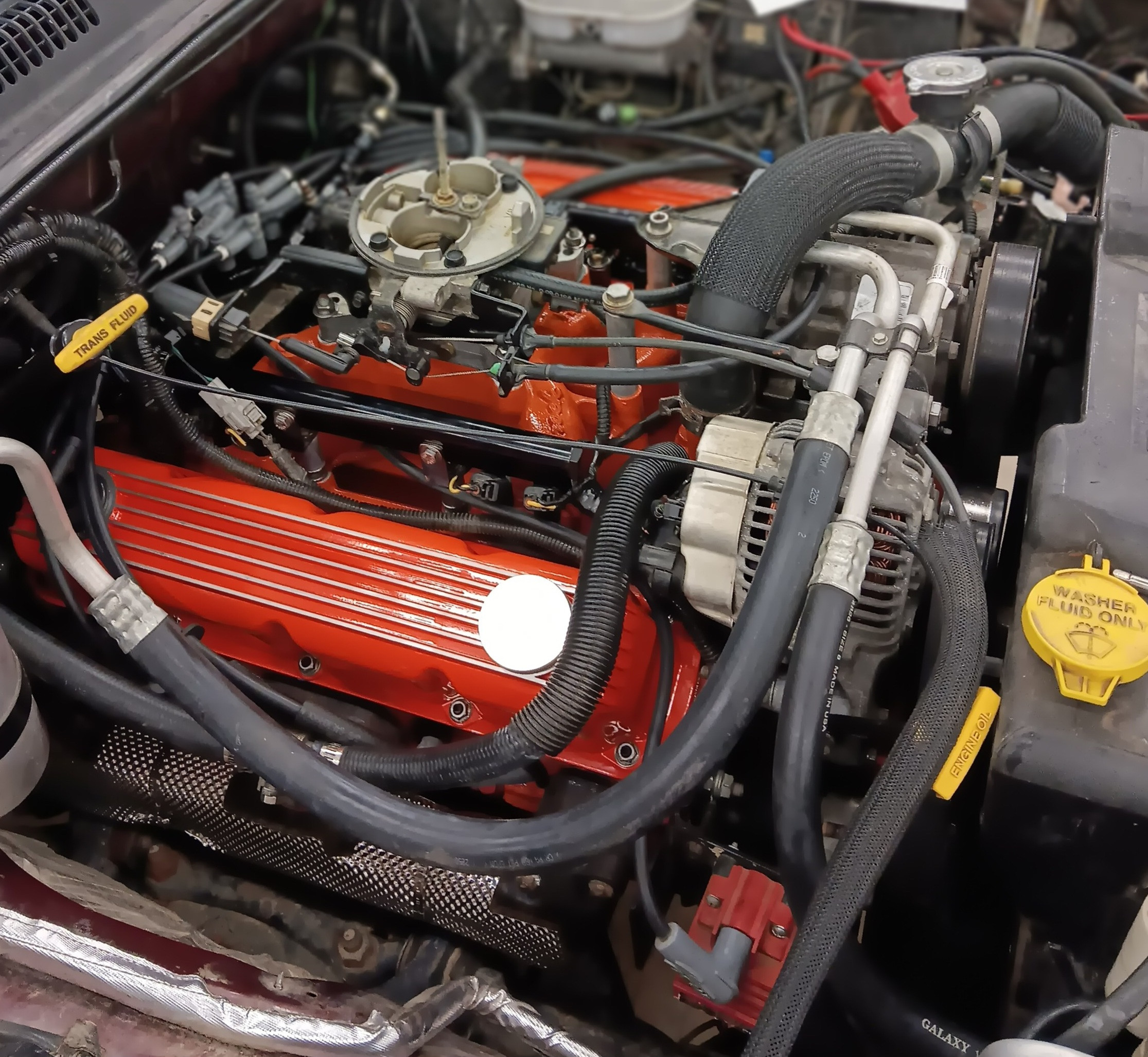

              I put an Air Gap intake and an MSD Pro Billet distributor on the engine but I can't find the pictures.
              I have also installed a TCI StreetFighter shifter in the truck and can't find pictures of that.
              I decided to install an Aussie Locker in the 8.25 rear end because it was quite a bit cheaper than a LSD and I didn't have to remove the carrier. I definitely recommend the Aussie Locker. I have abused it and it takes everything I've thrown at it so far. It also handles way better especially when going sideways and feels so much more stable.

              Click image for larger version

Name:	IMG_0051[1].JPG
Views:	1
Size:	2.07 MB
ID:	1160443

              That's all for now. I have been looking for a 46RH transmission. So if you are around southern Arkansas, north Louisiana, or east Texas and have one I will buy it.
              Attached Files

              Comment


              • #8

                Re: 2001 Dodge Dakota

                Make sure you rtv that pan gasket at the rear cap! I just changed the rear main seal in out 98 Durango and did not put any sealer and it leaked like crazy. I had to take it back apart and fix it. It was a one-piece Fel-pro pan gasket. Neat gasket, I didn't think it would need any additional sealer, but it certainly did!
                Life is short. Be a do'er and not a shoulda done'er.
                1983 Mustang GT 302/T5 http://www.bangshift.com/forum/forum...485-bbr-s-83gt
                1973 F-250 BBF Turbo Truck http://www.bangshift.com/forum/forum...uck-conversion
                1986 Ford Ranger EFI 545/C6 https://bangshift.com/forum/forum/ba...tooth-and-nail

                Comment


                • #9

                  Re: 2001 Dodge Dakota

                  I RTVed the crap out of it because I don't want it to leak.

                  Comment


                  • #10

                    Re: 2001 Dodge Dakota

                    II was tightening the oil pan bolts and got a little happy and broke the bolt off. This is the only time an easy out has ever worked for me.
                    [ATTACH=CONFIG]n1160441[/ATTACH]
                    That is an amazing picture, so they do work sometimes!
                    Escaped on a technicality.
