  • It's a God Given Talent.......

    Lighten Up Francis !!
    It was meant in good fun....

    Comment


    • time to make it level.... and drag out the stands

      then weld it yesterday's part and this into place




      this creates the floor for the cargo area and also allows me to run cross braces that tie through it to the frame
      silver_bullet likes this.
      Doing it all wrong since 1966

      Comment


      • Groovy!! :-)

        also looks like it beefs up the rear axle "Kick Up" in the frame

        Comment


        • tire stripping earlier today

          easy


          time to weld the cross brace together


          and remove this inner wall


          removed

          I think the braces will look like this then cut the middle out so I can put the battery in the battery box (that will be behind the chassis brace)


          I need another bracket solution... think the alternator is going to move to the other side


          my virus hidaway
          silver_bullet and Deaf Bob like this.
          Doing it all wrong since 1966

          Comment


          • let there be paint


            so the V... is so I can put the battery behind the brace


            chop chop


            tack tack


            weld weld


            paint paint



            more chop chop



            mostly it's there because I needed to weld the bar - but any extra space behind the seat is a good thing. tomorrow, floor
            silver_bullet, BFXJason and 2 others like this.
            Doing it all wrong since 1966

            Comment


            • battery box issues

              and it can get through the hole...


              but I dunno, I've threatened before to put it in the engine compartment - but even there has issues (too close to heat)...
              Doing it all wrong since 1966

              Comment


              • Derby style, passenger floorboard... .

                Comment


                • Oh Daaaamit !!

                  Comment


                  • CAD




                    and battery box

                    Doing it all wrong since 1966

                    Comment

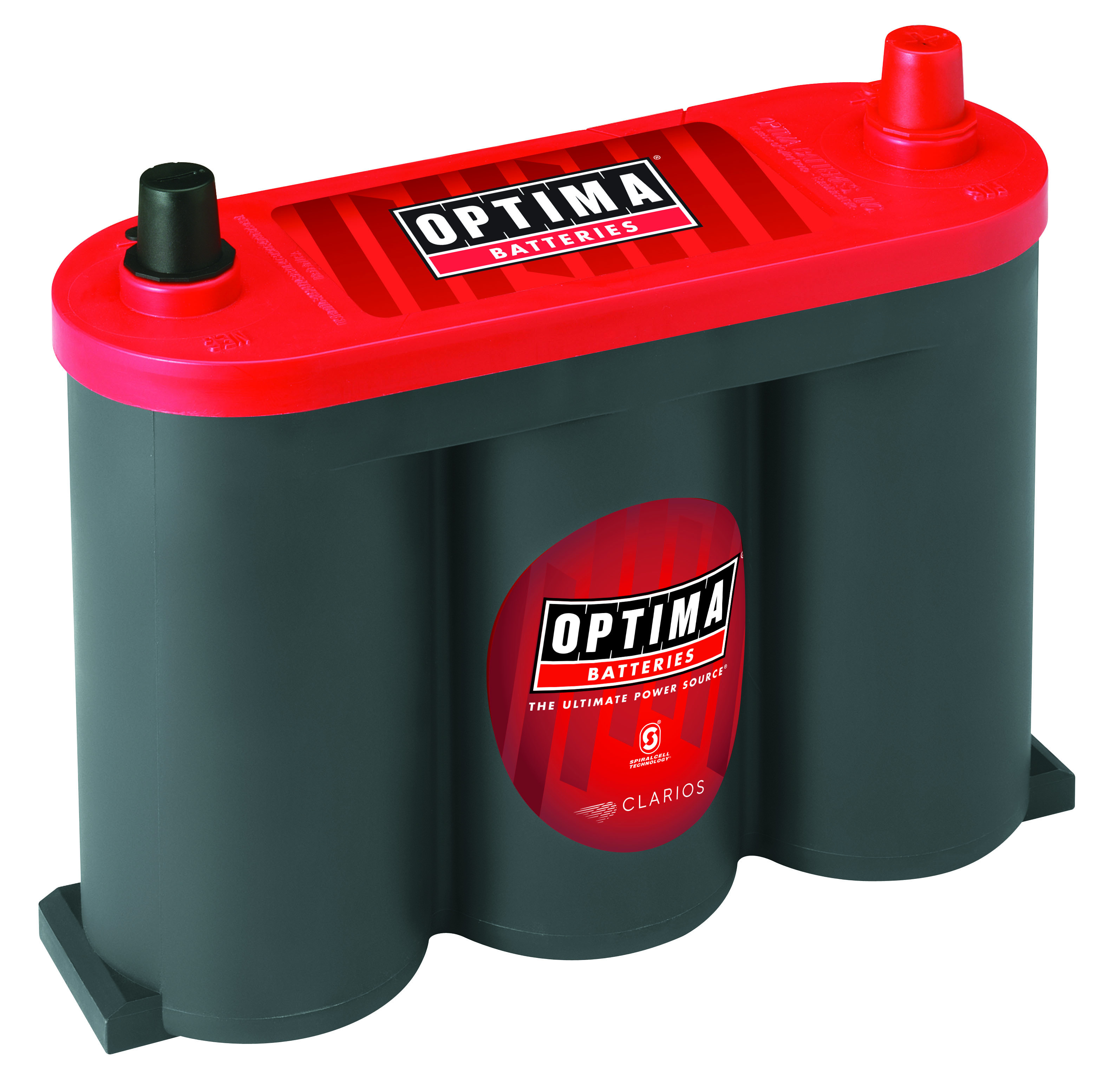

                    • Have seen some use two of these in series when faced with the issues you are having.... Click image for larger version

Name:	OPTIMA_RT_6V_Right_copy_copy.jpg
Views:	103
Size:	851.7 KB
ID:	1266332
                      Attached Files
                      Patrick & Tammy
                      - Long Haulin' 2008, 2009, 2010, 2011, 2012, 2014...Addicting isn't it...??

                      Comment


                      • time to make it real
                        but first, a brake repair



                        now I can bend
                        to be honest, I haven't decided if ribs are necessary


                        the tonight project is fill these holes


                        battery box


                        and there it is... means the 'floor' is a bit taller, but since that area is pretty much useless once the roll bar is in place.... no biggie
                        silver_bullet, ejs262 and 2 others like this.
                        Doing it all wrong since 1966

                        Comment


                        • inner mud flaps



                          this represents where I'm going with the flooring




                          DanStokes and 65RHDEER like this.
                          Doing it all wrong since 1966

                          Comment


                          • I need to make some similar mud flaps for my car, looking good!
                            "I am not what you so glibly call to be a civilized man. I have broken with society for reasons which I alone am able to appreciate. I am therefore not subject to it's stupid laws, and I ask you to never allude to them in my presence again."

                            1985 Pontiac Fiero, 3.5 V6 turbo, 5 speed
                            1988 Suburban, 350 TBI 700r4, 4x4
                            2006 2500 HD 6.0 4x4

                            Comment


                            • continued on the back undershelf


                              and worked on the upper radiator mount


                              now to weld and bolt it in place


                              I plan on gluing it all down when it's done... rivets and epoxy.
                              Doing it all wrong since 1966

                              Comment


                              • maybe I should rename this Covette19
                                oletrux4evr and silver_bullet like this.
