(Words by Stephen Kim – Photos by Manufacturer) – Horsepower: 2,500. Cubic inches: 430. Boost pressure: 45 psi. Cylinder pressure: Absolutely ridiculous. Running 6.80s at nearly 210 mph, today’s 275mm drag radial door-slammers incinerate the quarter-mile thanks to obscene levels of airflow and grip. Producing close to six horsepower per cubic inch requires immense cylinder pressure that can split blocks, blow head gaskets and melt pistons in a jiffy, but fortunately, the aftermarket has methodically eliminated each of these weak links in recent years. While enhanced short-block durability is obviously a good thing, it places an even greater burden on the cylinder heads to keep all that pressure sealed inside the block. To meet the demands of today’s boost-hungry race engines, casting technology has evolved tremendously to spawn a new crop of incredibly durable cylinder heads.

While Edelbrock is best known for its extensive line of cylinder heads and intake manifolds, over the last 25 years, the company has quietly established one of the most sophisticated foundry facilities in the country. Initially, the foundry’s primary focus was elevating the quality of its street castings, but as racers continued pushing the limits of durability, Edelbrock developed many key technological advancements in an effort to create the strongest race castings in the business. In fact, when engineers realized that they had reached the limits of their first foundry, Edelbrock built a second foundry in 2007 better suited to the low-volume manufacturing requirements of its race cylinder heads.

The combination of old school know-how and modern technology allows Edelbrock to dynamically adapt its casting process as circumstances dictate. “We’re always experimenting with new heat treat processes and testing new alloys and additives,” Dr. Rick Roberts of Edelbrock explains. “In the last several years, we’ve built a new permanent mold foundry and have introduced hot isostatic pressing into our race cylinder head castings. All of these technologies are an evolution of established casting techniques that ultimately create a superior end product.”

Although building a foundry from the ground up wasn’t easy, the long-term benefits for hot rodders have proven to be well worth the investment. “Running a foundry in Southern California isn’t the cheapest way of doing business, but 25 years ago, we felt that the only way to maintain the quality control we were looking for was to control the entire casting process from start to finish,” Roberts continues. “We’re fortunate that Vic Edelbrock Jr. had the foresight to build a foundry from the ground up in 1991.”

HIP

Every aluminum casting has tiny air bubbles trapped in it. The question is, how much? “Hot isostatic pressing is a process originally developed by the aerospace industry to eliminate these microscopic air bubbles. The HIP process heats a raw casting inside a pressurized oven to about 900 degrees to make the aluminum pliable,” Roberts explains. “The oven is filled with argon to eliminate oxidation. As the pressure in the oven increases to 10,000-15000 psi, it compresses the aluminum and squeezes out the air bubbles. The process actually shrinks the casting, so we have to make it a little bit bigger to compensate for the increase in density. HIP’ing dramatically enhances the overall strength of the casting. A HIP’d casting isn’t quite as strong as a billet cylinder head, but it comes pretty darn close.”

When Edelbrock began machining its first batch of HIP’d heads, the improvements in hardness were immediately apparent. “The material was so much harder that we immediately broke the drill bits. We can usually drill 17 head bolt holes on a cylinder head in five minutes, and the drills last for hundreds of sets of heads before they wear out,” says Roberts. “When we machined our very first HIP’d head, the drill broke by the time it got to the fifth head bolt. We had to change the drill speed and feed rate, as well as the drill itself, to account for how much stronger the casting was as a result of the HIP process.”

Nevertheless, the true test of any casting’s durability is how well it holds up in the heat of competition, and the HIP process has proven its value in the most punishing race applications. “The Edelbrock SC1 heads have the strength of a billet head, but they’re also easy to set up and machine. It’s the best of both worlds,” nine-time NMRA Street Outlaw Champion John Urist remarks. “The HIP process makes the SC1 castings so hard and dense that it lets you push the limits of the head much harder. You simply don’t have that luxury with other castings. Billet heads are great, but they can cost twice as much. A billet head also requires machining out the water jackets, but with a HIP’d casting like the SC1s, they’re already in there.”

With enhanced durability comes longer operating life, which equates to savings in both time and money. “Cylinder heads are an investment. Once you’ve spent money on extensive porting, you want to make sure the casting is going to hold up,” Urist adds. “With other cylinder heads we’ve used in the past, we had to redo the valve job after five or six runs. When we disassemble the SC1 heads after a race weekend, the seats and guides haven’t moved around at all. In the past, we had to replace the heads every two seasons, but the Edelbrock SC1 heads are still going strong after eight seasons.”

Alloys

The U.S. Aluminum Association establishes specifications that outline the composition and mechanical properties of aluminum alloys. For example, an A356 alloy is mostly aluminum, but the percentage of silicon and magnesium it contains must fall within a specified range to qualify as A356. These metallurgical formulas also place limits on impurities like iron. Many of these elements represent just a small fraction of a percent in the overall composition of the alloy. “Compared to A356 aluminum, which is a very popular alloy for cylinder heads, an A355 alloy contains much more copper. This may help with cooling because copper increases thermal conductivity, but overall the properties of the metal aren’t as durable as A356,” Roberts explains. “In contrast, A357 aluminum alloys are often used in the aerospace industry. They offer greater purity than A356, but its benefits are questionable for automotive applications so the added costs are not justified. This explains why A356 alloys are so popular in automotive applications.”

edelbrock foundry 1

Fresh-out-of-the-mold cylinder heads clearly illustrate the path the molten aluminum flows through during the casting process. Liquid metal flows downward from the sprue, through the runners, and into gates positioned at the deck surface of the head. The metal then flows upward from the cylinder head cavity into the risers positioned on top of the head. Excess metal is trimmed from the raw castings before final machining operations can begin.

Heat Treating

Without proper heat treating, raw castings are not strong enough to survive the stress endured in an internal combustion engine. “The T6 tempering process—which is widely used in our industry—involves heating a casting up to 800-900 degrees, then holding it at that temperate for a specified period of time. Heating a casting up to a near-liquid state allows the particles inside the metal to dissolve in a uniform fashion,” says Roberts. “Next, the casting is quenched in cold water. After quenching, the soft and gummy structure of the metal suddenly forms a distinct grain structure. At that point, you have a really hard aluminum, but now it’s brittle and prone to cracking. By heating the casting to 350-375 degrees for 5-6 hours, we can age the metal to put ductility back into the casting while maintaining hardness. The aging process takes a straw-like grain structures and breaks it down. Now you have a casting that’s very strong and easy to machine, yet it has enough ductility to prevent cracking. In contrast, the T5 tempering process ages the casting, but it does not quench the metal or heat it up as high as the T6 process.”

edelbrock foundry 2

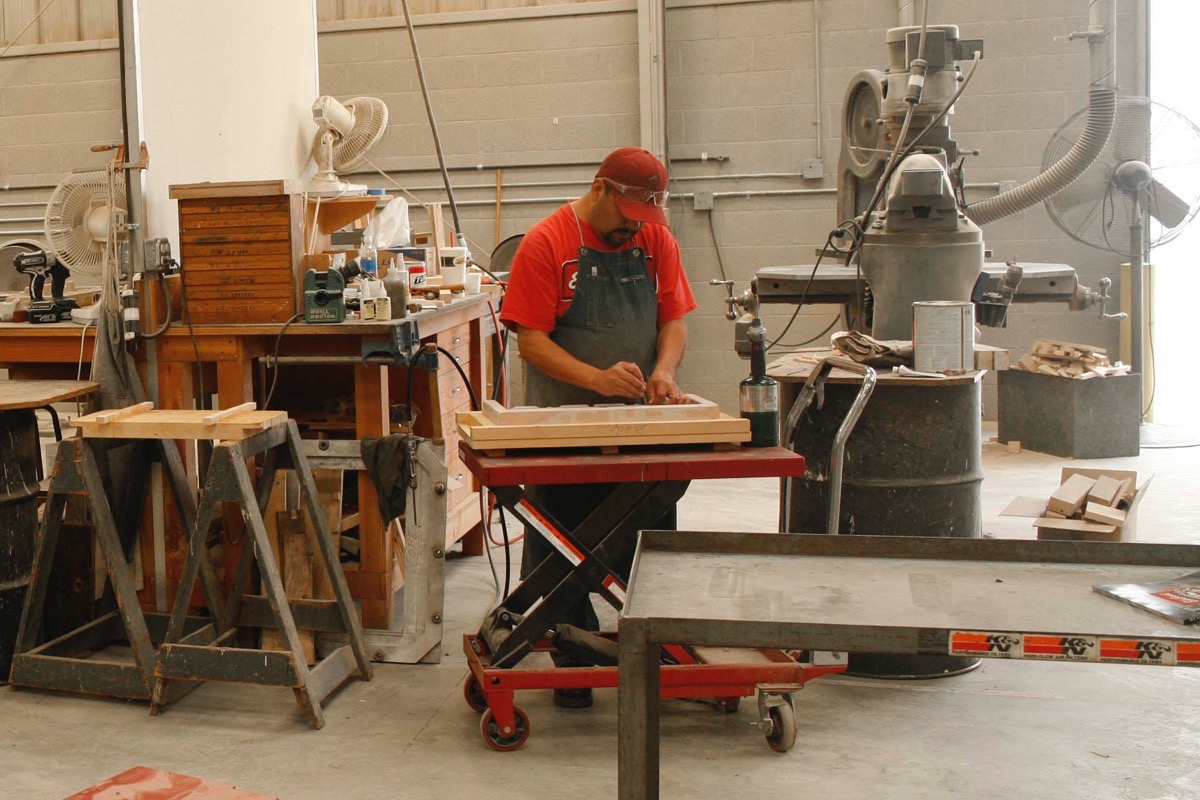

Before a mold can shape the liquid aluminum, a pattern must shape the mold itself. In essence, patterns create impressions—or cavities—in the sand mold, and therefore mimic the shape of the cylinder head. To resist abrasion, most patterns are made from plastic and cut on CNC machines.

Formula Modification

Having complete control of the casting process makes it possible to experiment with different metal compositions and heat tempering techniques depending on the needs of a particular application. “Simply adding a table spoon of copper or magnesium to a 400-pound batch of aluminum can have a noticeable effect on the properties of the metal. For extreme endurance applications, like offshore boat engines, we can go with a T7 heat treat to improve durability,” Roberts reveals. “In heavy-duty nitrous engines that experience incredible cylinder pressure, we can experiment with different additives to improve casting strength at high temperature. We’re always experimenting with different heat tempering techniques and additives to give us an edge. In fact, you can slightly under-age or over-age a casting and still fall under T6 standards.”

Ultimately, getting the formula just right comes down to experience. “Running a foundry is a lot like porting cylinder heads. The more gray hair you have, the better off you are,” Roberts jokes. “The specifics of what distinguishes a good casting from a bad casting doesn’t come from a text book. It comes from experience. We’re very fortunate to have a couple of very talented foundry operators that each have over 50 years of experience. One of them actually helped pour the very first Donovan block.”

edelbrock foundry 3

While patterns establish the outer dimensions of a cylinder head, sand cores create internal passages like the ports and water jackets. Dry sand is the building material of choice, as the shape of the cores can be very intricate.

Controlled Solidification

After a casting is poured, the solidification process of the molten aluminum must be controlled very closely to prevent air pockets from forming. “Aluminum shrinks as it solidifies. If you have a pocket of liquid aluminum that’s surrounded by metal that’s already gone solid, that pocket will tear itself to pieces when it solidifies because it wants to shrink but it can’t,” Roberts explains. “To prevent this from happening, we pour the cylinder heads with the deck facing downward. Ideally you want the head to solidify from the deck to valve cover rail in a uniform fashion. A head that’s solid in one spot and liquid in another is a disaster in the making.”

When pouring a head, liquid aluminum travels from the pour spout into three- to four passages routed underneath the cylinder head deck surface in the mold. From there, the metal passes through 1×1-inch gates before entering the mold. Once the metal fills the mold from the bottom upward, it then enters several cylindrical risers positioned above the head. “The risers act as reservoirs that feed liquid metal back into the mold as the head solidifies and contracts. The diameter, height, temperature, and location of the risers all affect how a cylinder head solidifies, so these variables can be changed to eliminate hot spots as necessary,” says Roberts. “We can also move the gating around to address hot spots as well. Experience is key, and at Edelbrock, being able to get advice from people who have been working in foundries for 50 years is a huge luxury. It’s not hard, but when you’re trying to make changes to control how a cylinder head solidifies, the guys with experience know exactly which changes they need to make.”

edelbrock foundry 4

Unlike the shell core manufacturing process, the sulfur dioxide process doesn’t require heat to harden the sand. Consequently, automated machines can churn out beautifully shaped cores in a much cleaner, cooler environment.

Computer Simulation

Thanks to modern technology, it’s now possible to virtually pour a casting on computer to identify trouble spots before they surface. “The Magma software we use is like a CFD (computation fluid dynamics) program that’s used to optimize the casting process. After we design a mold in CAD, we can compute how liquid aluminum will flow into it and watch it solidify on the computer screen,” Roberts reports. “The software can predict the microstructure and properties of the finished casting, as well as the location of hot spots. By simulating the pour process, we can identify potential problem areas and address them before we even bother making the first mold. Overall, computer simulations allow us to make better castings more quickly and inexpensively.”

edelbrock foundry 5

The bottom half of the mold, called the “drag,” shapes the deck and combustion chambers of a cylinder head. Using steel on the chamber side of a sand mold chills the metal more rapidly to strengthen the deck side of the casting.

Molds

As horsepower levels continue skyrocketing, the molds used in the casting processes have evolved to improve both casting quality and manufacturing efficiency. “Our green sand foundry uses a process very similar to what foundries in the ‘50s used to cast iron blocks and cylinder heads. Green sand, which is actually black in color, is similar to the sand at the very edge of the water at the beach,” Roberts explains. “You can almost see the imprint of your hand and feet in it, but not quite. Green sand can be packed down very tightly, but it also breaks down into loose sand easily. It’s used to create the envelope of a casting where the liquid aluminum will be poured into.”

Unlike a green sand mold, a permanent mold uses a steel envelope that works like a waffle iron. “As the liquid aluminum is poured, the chilling effect of the aluminum coming into contact with the steel mold creates a casting that’s structurally stronger,” says Roberts. “Since the mold is reusable, you don’t have to make a new mold out of sand after casting each cylinder head. The downside is that a permanent mold is three- to four times more expensive than a green sand mold, so it only makes sense when casting in high volume. Most of our Performer RPM small-block heads are cast in our permanent mold foundry.”

edelbrock foundry 6

The sand cores for the intake ports, exhaust ports, and water jackets fit into the drag like a puzzle. After the cylinder head solidifies, the cores are broken down and drained.

Production Line Evolution

Edelbrock’s casting operations are split between its green sand, permanent mold, and dry sand production lines. The green sand line is a high-volume foundry that casts intake manifolds, water pumps, and many of Edelbrock’s street cylinder heads. The furnace holds 35,000 pounds of aluminum, and it runs 24/7 for 11.5 months out of the year. “That’s good for high volume, but it doesn’t give us much leeway if we want to change the metallurgy of the aluminum for a small batch of cylinder heads,” Roberts remarks. “If we shut it off at night, the metal would harden and take a very long time to melt again. Over the years, we have transitioned our highest-volume cylinder heads to the permanent mold process to improve casting quality and efficiency, since permanent molds are re-usable.

“The challenges we encountered while casting our first SC1 race heads made us realize that we needed a third production line to handle more specialized castings. When we designed the green sand foundry, the big-block Chevy cylinder head was the biggest part that we made. We never envisioned casting a head with ¾-inch thick port walls. After pouring the first SC1 head, the mold started bubbling and hissing from all the turmoil going on inside of it. Metal spewed out of the pour spout, and we were afraid that it was going to explode. We found out pretty quickly that we reached the limit of the green sand process with the SC1 heads. With heads that require that much metal, the green sand casting process makes it impossible to feed the mold quickly enough. By replacing the outside of the mold with dry sand, we were able to make the mold as large as we wanted. That enabled us to change the way the liquid metal feeds into the mold, and solved the problem.

edelbrock foundry 7

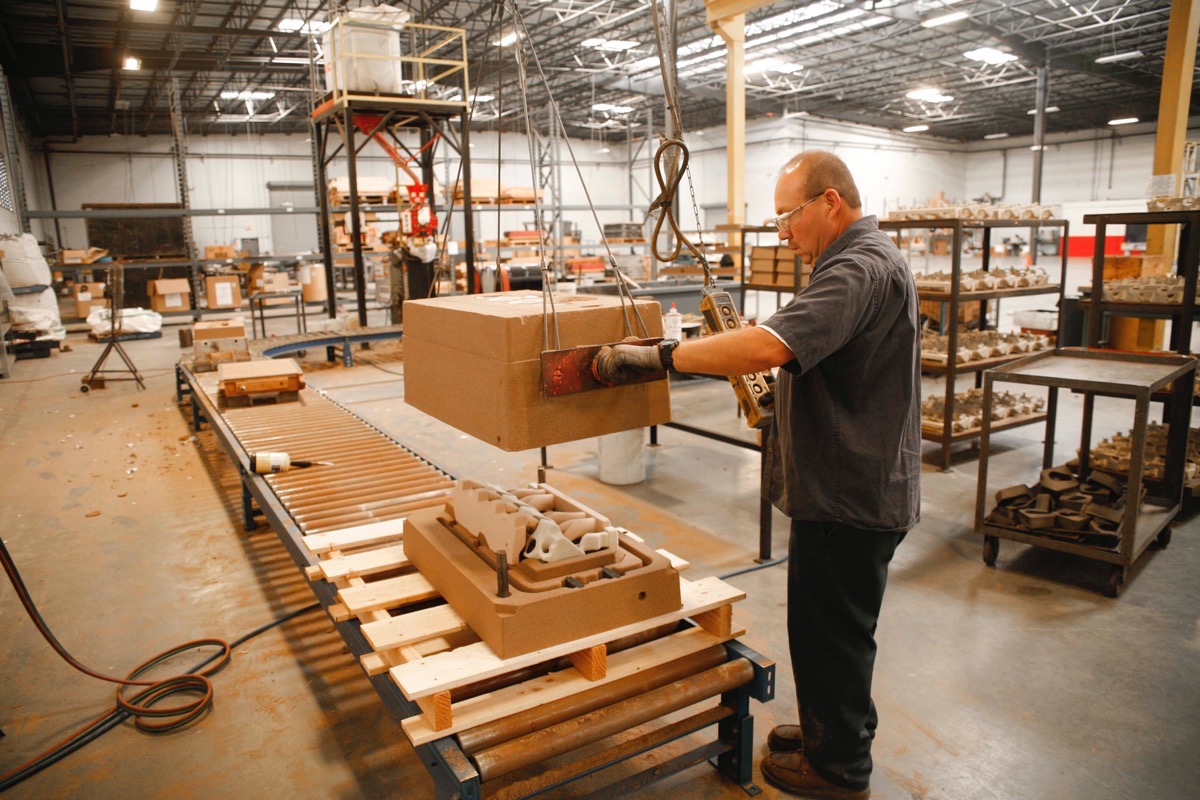

The top of the mold, called the “cope,” is lowered onto the drag after loading in the sand cores. Since metal is poured into the cope, it houses the sprue and risers. Sadly, the artfully sculpted sand molds and cores must be destroyed in order to punch out the cylinder head after the metal cools.

“After that experience, we decided to build a separate dry sand foundry so that we could cast much larger and heavier race heads. The dry sand molds cost twice as much as green sand molds, but we’re now able to cast heads that are 50-percent larger than the SC1 heads without any problems. Likewise, since the dry sand production line only melts 400 pounds of aluminum at a time, we can pour cylinder heads in small runs of 10-12 units. This allows us to experiment with different additives to strengthen the properties of the metal. Investing in the dry sand foundry was a very big step that we took 10 years ago that now makes it possible to build extremely durable race castings like our Ford SC1, GM LSR, spread-port big-block Chevy, and many of our Pro-Port raw cylinder heads.”

Green vs. Dry Sand

Shaping liquid aluminum to exacting tolerances with sand can be challenging, especially when the slightest deviation in the contours of a port can dramatically affect performance. Depending on the profile of the shape that needs to be made, Edelbrock uses green sand, dry sand, or a combination of both. “Green sand is a mixture of sand, clay, and various chemicals. Its clay and moisture content make it easier to shape, but burns off after each casting run,” Roberts explains. “While it can be tightly packed together, it doesn’t bind or get hard. That enables green sand to hold together well during the casting process, but you can still pull it apart by hand, replenish the clay content, then re-use the sand. Humidity levels can affect the moisture content of green sand, so the mixture must be monitored and adjusted as necessary.

edelbrock foundry 8

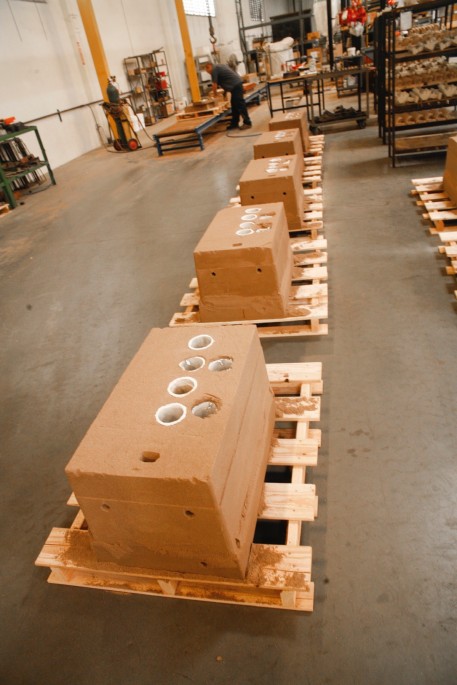

One major advantage of the dry sand casting process is that the molds can be made significantly larger than green sand molds. Large-capacity molds make it possible to properly supply the volume of liquid metal necessary to cast heavy-duty race cylinder heads like the Ford SC1, GM LSR, spread-port big-block Chevy, and Pro-Port castings.



“On the other hand, dry sand uses an adhesive as a bonding agent and its smaller grain size creates a smoother finish on the casting.  It gets hard as a rock after sitting for 30 minutes, and you have to hit it with a hammer to break it. Green sand is versatile enough to shape all the features under the valve covers, like the oil drains, but it has its limitations. Dry sand works much better with casting shapes that have a lot delicate and intricate features. Even in our green sand foundry, the cores used to form the ports and water jackets of a cylinder head are made from dry sand.

“Fine, narrow pieces of green sand don’t mold or form very well, and are prone to breaking. However, making shapes like that aren’t a problem with dry sand. The dry sand is used to form the outer envelope of a cylinder head is reusable, but the sand used to form ports and water jackets is not re-usable. That increases costs significantly, but sometimes that’s what it takes to cast a cylinder head strong enough to handle the most demanding race applications.”

Core Production

While a casting mold determines the outer shape of a cylinder head or intake manifold, cores must be inserted into these molds to form any internal passages such as the ports and water jackets. The old fashioned method of making cores involves mixing sand with glue, packing it into a mold by hand, then waiting half an hour for it to harden. It’s slow and tedious, but it works fine for low-volume production runs in Edelbrock’s dry sand production line. However, newer hollow-core and sulfur-dioxide core processes can handle high-volume production more efficiently.

edelbrock foundry 10

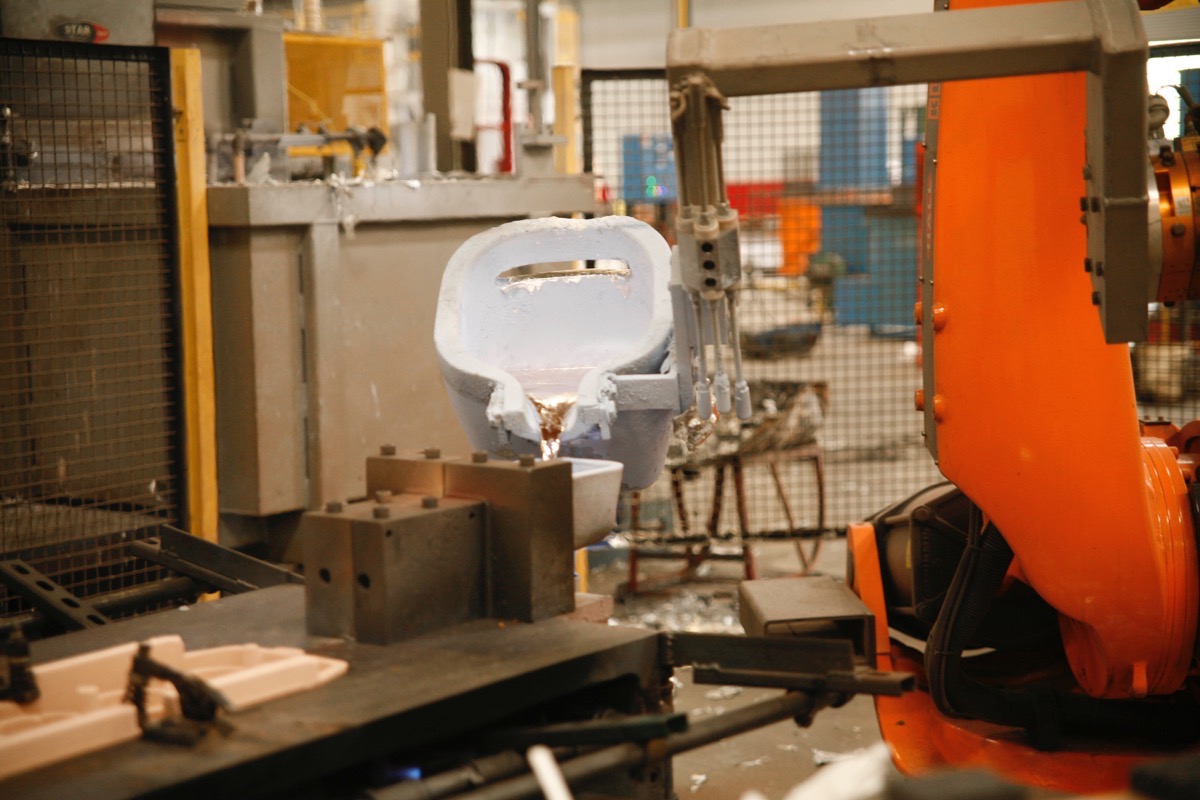

High-volume castings, like Performer RPM cylinder heads, are manufactured in Edelbrock’s state-of-the-art permanent mold production line. The automated pouring process cranks out one cylinder head every 5-10 minutes.

edelbrock foundry 9

The traditional shell (hollow) core process uses a cast iron box that looks like the actual cylinder head. “After heating up the box and connecting a hose to it, sand is blown into the mold. The sand is impregnated with glue that’s activated by heat, so it solidifies when it comes in contact with the hot cast-iron mold,” Roberts reveals. “The sand in the center of each core doesn’t heat up as much, so it falls out after it’s removed from the mold. You’re left with a hollow-shell core that’s very accurate and well suited for high-volume production. The downside is that since the core box is made of cast iron, it’s very heavy and difficult to modify if we want to change the shape of the cores. The cores used to build most of our Performer RPM cylinder heads are made using the hollow-core process.”

About 20 years ago, Edelbrock began transitioning over to a sulfur-dioxide core process. It uses a different mixture of sand that has binders instead of glue. These binders are activated by sulfur dioxide, which means that hot cast-iron molds are no longer necessary. “Instead of iron, we can use a plastic mold, blow sand into it, then fill it with sulfur dioxide to harden the sand cores,” Roberts explains. “Not only does this enable us to work at room temperature, it also makes it much easier to repair or modify the molds since they’re plastic, not iron. Even though the sand is abrasive, the plastic is very tough and wear resistant. Over the years, we have gradually converted our production lines from the hollow-core to the sulfur-dioxide core process.”

Testing

Compared to foundries built in the ‘40s and ‘50s, Edelbrock’s casting facilities are relatively young. With this youth comes testing equipment that closely monitors all aspects of foundry operation. “Every morning, we take a sample of A356 aluminum that’s the size of a hockey puck. After it cools, we inspect it under an electron microscope to ensure that it’s structurally sound,” Roberts reports. “We also have a pull-tester that stretches each metal sample until it breaks. That way, we can measure the tensile strength and yield strength of our castings, and make sure they’re within our target range. We also have a room that’s always measuring the content of our green sand. Although 80-90 percent of it is re-usable, a certain amount of clay content burns off, so we have to closely monitor the sand content and replenish it with clay as needed.”

edelbrock foundry 11

After extracting the cylinder heads from the mold, the raw castings are rough cut and heat treated. Rapidly cooling the heads after heating them up strengthens the metal. Next, aging the castings in an oven adds ductility back into the cylinder heads.

Pattern Making

Just like the rest of the casting process, the art of pattern making has changed tremendously in the last 70 years. Back in the day, Vic Edelbrock Sr. sketched his intake manifold designs on paper, and took them to his pattern-maker, Harvey Hartman. “Vic loved the pecan pie that Harvey’s wife made, so he enjoyed sitting down at the kitchen table and going over his designs with Harvey. The patterns were hand-carved out of wood in that era, so the real specifics of what the pattern looked like was up to the pattern-maker,” Roberts explains.

These days, the entire casting, including the pattern, is designed using 3D CAD software. “Pattern-makers don’t have the same creative flexibility they used to, and stick closely to the designs that the engineers give them. The tooling for a cylinder head costs $50,000, so you don’t want to make any mistakes,” Roberts remarks. “CAD software allows us to virtually design the entire cylinder head, flow test it, and machine it all on computer. We can make test prototypes using our 3D printer as well. All of these tools allow us to eliminate mistakes.”

Once the design is finalized on computer, the CAD file is sent to Edelbrock’s in-house pattern department, who designs the patterns and the mold to mimic the shape of the cylinder head. “Wood eventually wears out from sand abrasion, so patterns these days are made from plastic and cut on CNC machines,” says Roberts. “The design of the patterns and mold must account for sufficient draft (angle) to drain the sand cores after casting. Ultimately, all of these measures make it possible to make very precise patterns that contribute to a high-quality casting.”

edelbrock foundry 12

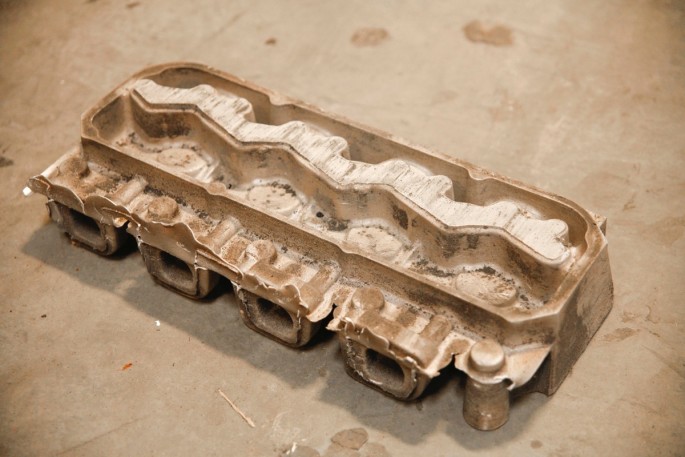

The challenges faced while making the very first Ford SC1 cylinder head forced Edelbrock to develop a new dry sand manufacturing process. This same technology has been applied to many of Edelbrock race cylinder head castings.



Racer Testimonial

Phil Hines:

Two-Time NMRA Street Outlaw Champion

“I love the Edelbrock SC1 cylinder heads. They are by far the best small-block Ford cylinder heads I have ever used, period. At this horsepower level, you find the weak spots in a casting very quickly. In the past, I’ve had heads that crack on the corner cylinders, but since switching to the SC1s, they have been bulletproof. Forced induction engines put a lot of heat into the valves. I compete in a ton of races each year, but I can go half a season with the SC1 heads before they need a valve job. That’s a lot. The HIP process makes these heads so durable that I have no reason to go with a billet head. The casting strength also lets you get very aggressive with the porting without sacrificing durability.”



edelbrock foundry 13

Back at the green sand foundry, the sand cores for the runners and plenum section of an intake manifold are loaded into a core box before being poured with aluminum. The shell core manufacturing station is a massive operation in and of itself.

edelbrock foundry 14

Water pumps aren’t that interesting to most hot rodders, but the cores used to create their internal passages are very intricate nonetheless. In comparison, carving a pump out of a block of billet seems so simple.

edelbrock foundry 15

Hundreds of years after the first sand castings were produced, the process still requires finding the right type of sand. Giant 3,000-pound bags of dry sand are shipped in from mines in Nevada.

edelbrock foundry 16

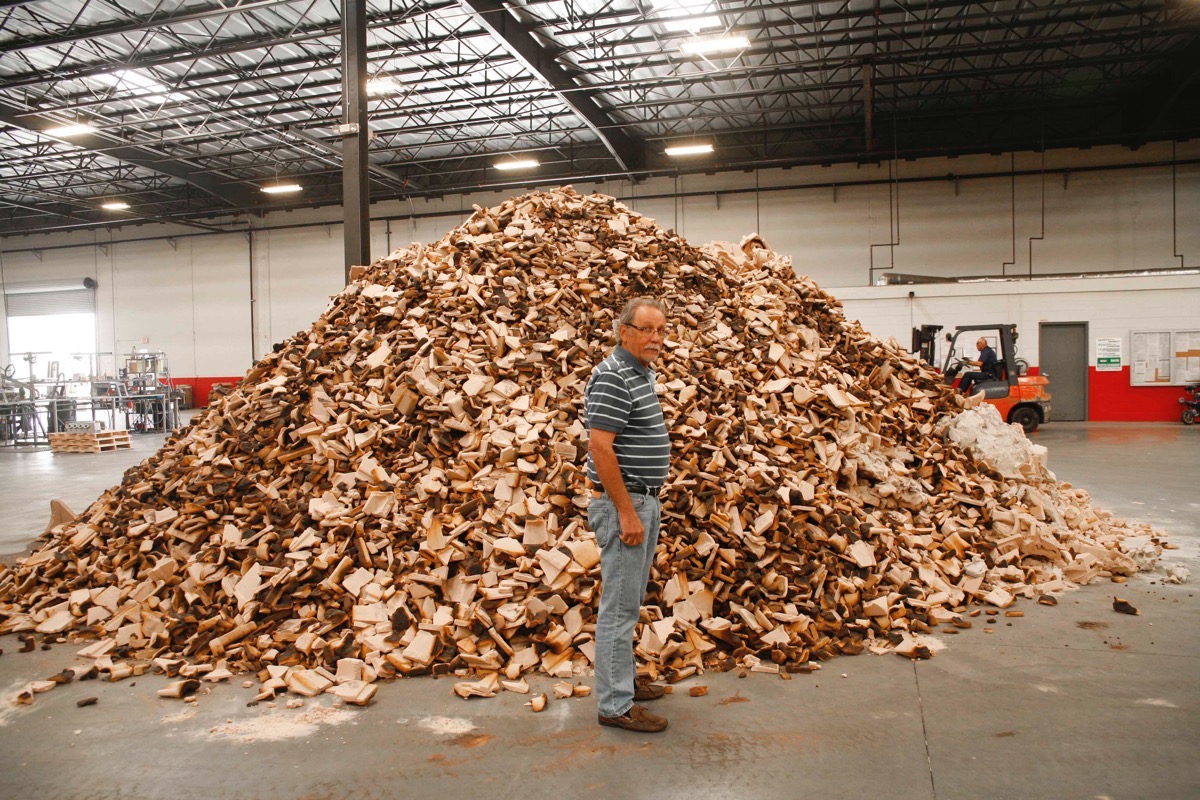

Green sand can be recycled, while dry sand cannot. Standing next to a pile of used sand cores and molds, Edelbrock’s Frank LoNigro puts the scale of the operation into perspective.
