1991 Lumina Z34

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Skeptical
    replied
    I've been lacking motivation lately but managed to get out there and knock out a few things.



    Wire wheeled the goo off the subframe to paint it.
    Click image for larger version

Name:	20200708_124521.jpg
Views:	329
Size:	1.05 MB
ID:	1274272

    First coat.
    Click image for larger version

Name:	20200708_131239.jpg
Views:	305
Size:	1.02 MB
ID:	1274273

    Done. Not perfect but then again I wasn't going for perfection. Much better than it was though.
    Click image for larger version

Name:	20200708_145114.jpg
Views:	304
Size:	721.9 KB
ID:	1274274

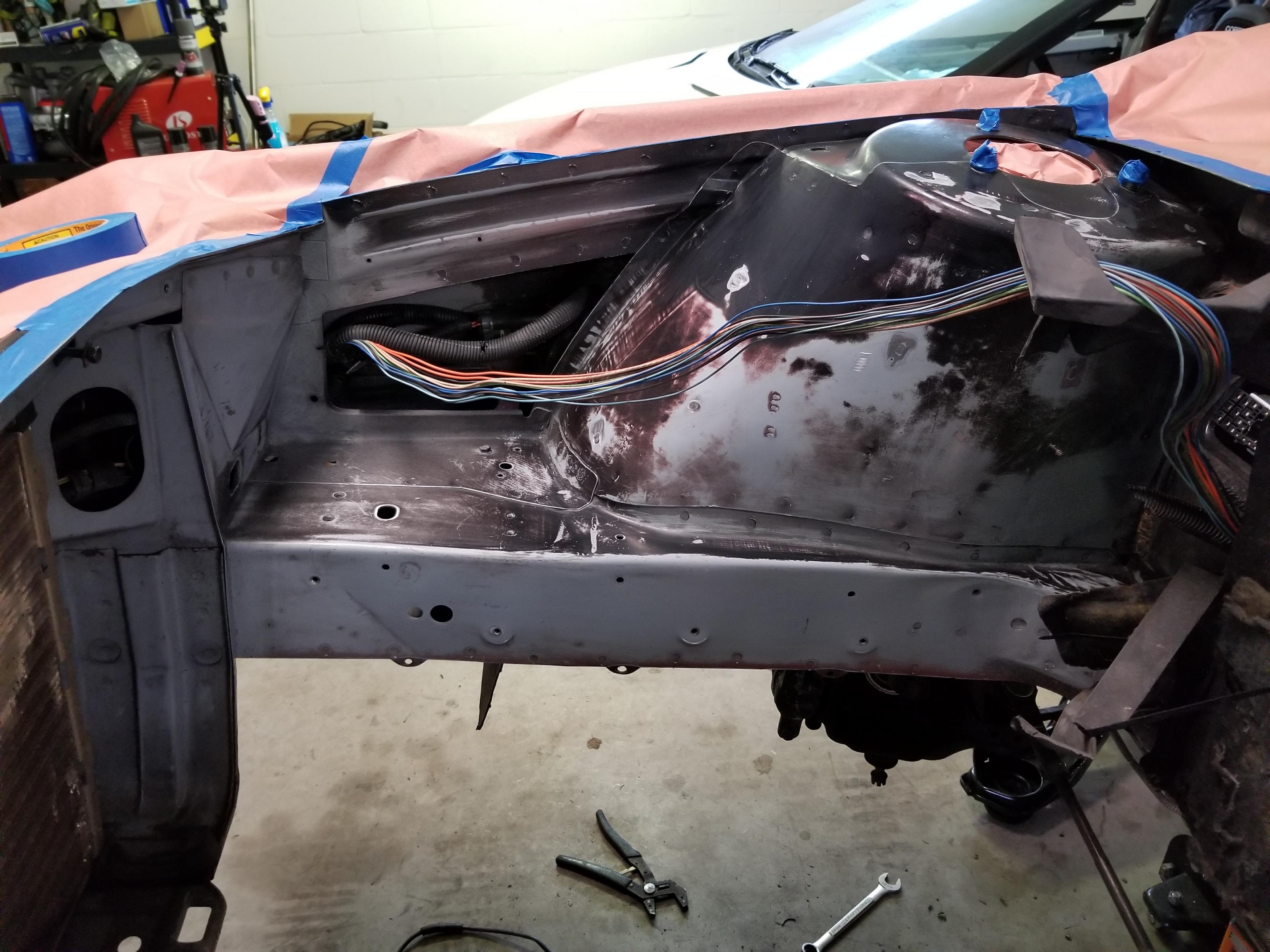

    i was surprised at how little paint was actually in the engine compartment. I guess Gm was saving pennies by lightly misting some color in there.
    Click image for larger version

Name:	20200708_184538.jpg
Views:	302
Size:	807.2 KB
ID:	1274275

    Primed.
    Click image for larger version

Name:	20200708_191055.jpg
Views:	302
Size:	608.3 KB
ID:	1274276
    Painted.
    Click image for larger version

Name:	20200710_181358.jpg
Views:	304
Size:	663.9 KB
ID:	1274277

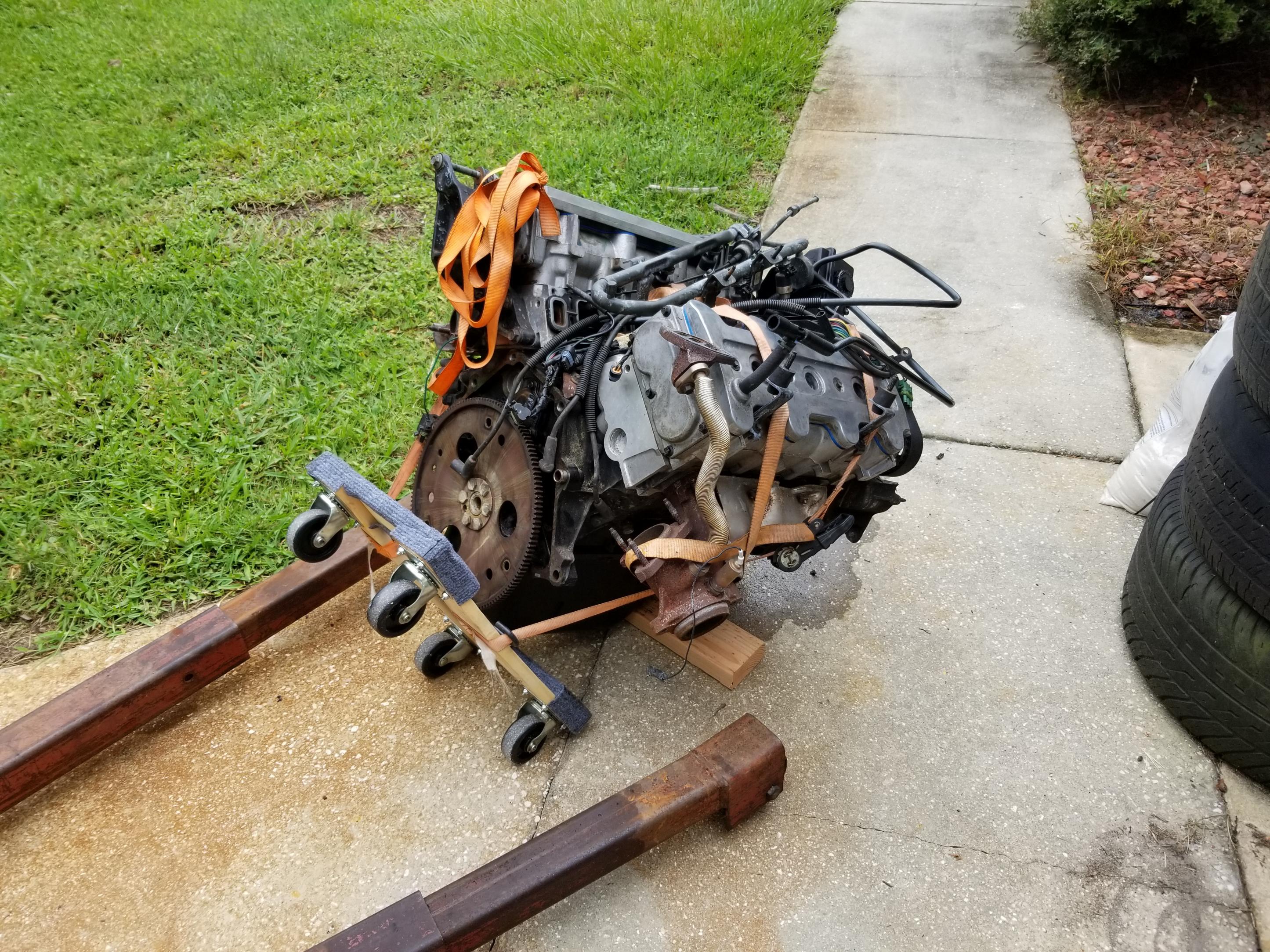

    I'll just spend 5 minutes and roll this around to the shed so I [email protected]#$...... Caught a pebble at speed and went for a tumble. Oh well. Just made the front pulley D shaped.
    Click image for larger version

Name:	20200707_175842.jpg
Views:	305
Size:	1.11 MB
ID:	1274278


    Leave a comment:


  • Skeptical
    replied
    I'm mildly drunk and channeling my inner 20 something...

    I removed the gravy serving dish from the subframe...
    Click image for larger version

Name:	20200625_222338.jpg
Views:	350
Size:	570.9 KB
ID:	1273171


    Not installing a 3800 or "Other" so should be fine....
    Click image for larger version

Name:	20200625_222329.jpg
Views:	341
Size:	737.9 KB
ID:	1273172

    Look at that margin difference on the exhaust valve. Left is a melling stock replacement. Right is a stocker with one grind on it. The left one disgusts me.
    Click image for larger version

Name:	20200624_193317.jpg
Views:	336
Size:	340.3 KB
ID:	1273173


    smidge too high...
    Click image for larger version

Name:	20200624_185412.jpg
Views:	341
Size:	634.6 KB
ID:	1273174

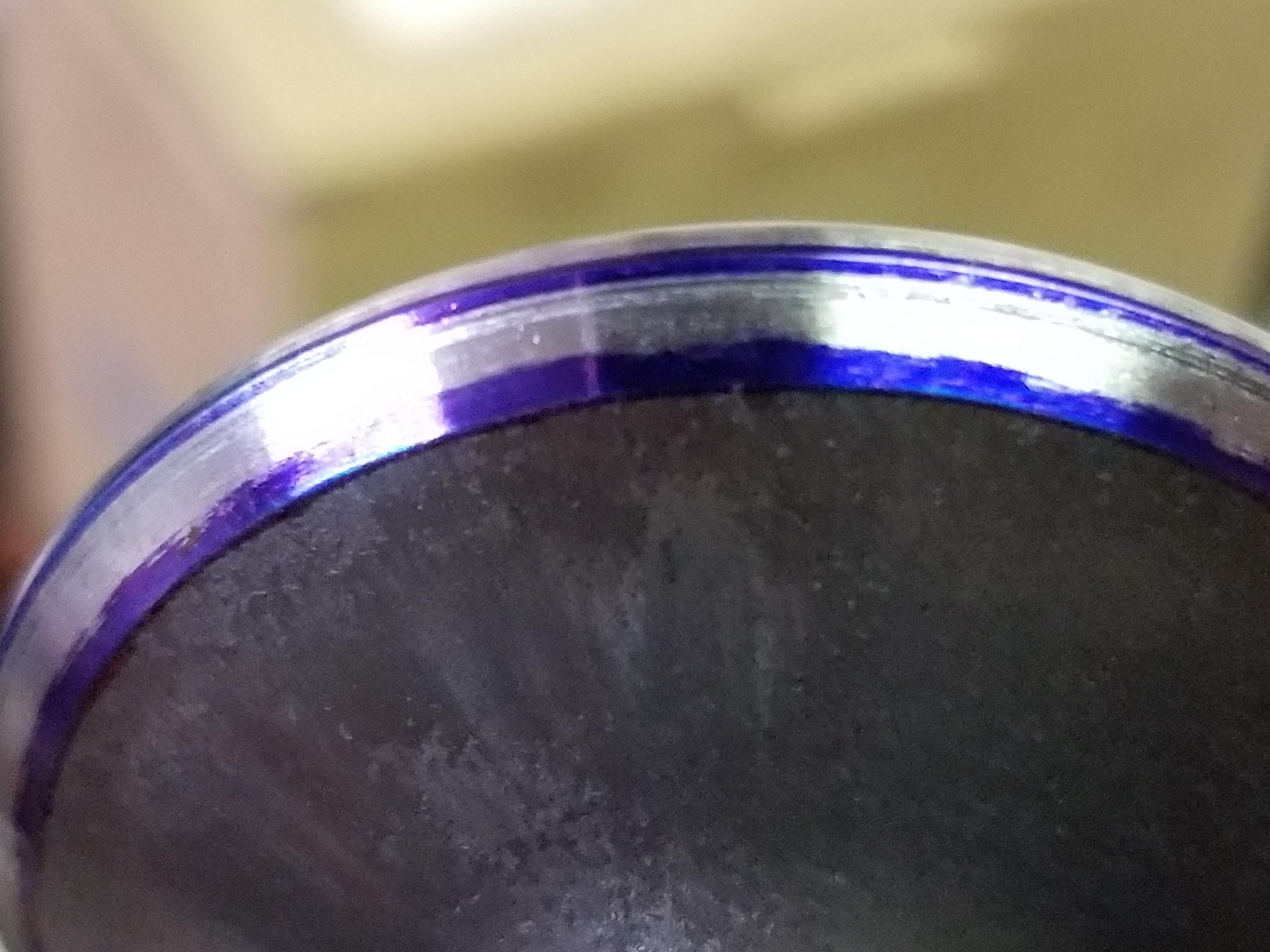

    dead f'n center. A 30 on top and a 60 on the bottom of the seat to narrow it up and we are good to go!
    Click image for larger version

Name:	20200624_192140.jpg
Views:	341
Size:	490.6 KB
ID:	1273175

    Aftermarket valve with no back cut
    Click image for larger version

Name:	20200624_193639.jpg
Views:	338
Size:	514.2 KB
ID:	1273176

    Stocker with the back cut.
    Click image for larger version

Name:	20200624_193646.jpg
Views:	338
Size:	375.6 KB
ID:	1273177









    Leave a comment:


  • Skeptical
    replied
    The word for the day is concentric. I'll use it in a sentence. The factory machining process gives zero F's about the exhaust seats being concentric to the valve guides.....

    I got two more to square up and then I'll be onto the intakes. I already touched them with the stone and they cleaned right up so it should be just setting the width on those.


    Spot checking exhaust seat width at .075. There's a slight optical illusion there where the seat meets the head. It's just stock angles of 30/46/60.
    Click image for larger version

Name:	20200624_184235.jpg
Views:	364
Size:	689.0 KB
ID:	1273008

    Leave a comment:


  • DanStokes
    replied
    Any port in a storm?

    Dan

    Leave a comment:


  • SuperBuickGuy
    replied
    and just like that, we knew you were one of us

    Leave a comment:


  • Skeptical
    replied
    I told myself I wouldn't... Then I was like, just one more port...... Just one then I'll quit....


    Click image for larger version

Name:	20200620_180730_scaled.jpg
Views:	391
Size:	995.7 KB
ID:	1272670

    Click image for larger version

Name:	20200620_182812_scaled.jpg
Views:	384
Size:	1.06 MB
ID:	1272671

    Leave a comment:


  • ejs262
    replied
    Originally posted by Skeptical View Post

    Casting is on the list of things to try too! You'll have to share some of the things you make once you get your printer going.
    yeah, once I get the printer together, I'll need to get the foundry setup and ready to go. I think my current plan is to submerge the prints in plaster, then burn the plastic out, then pour metal.

    Leave a comment:


  • DanStokes
    replied
    That IS a skinny little thing!

    Dan

    Leave a comment:


  • Skeptical
    replied
    Did a little cleanup on the car this past weekend.

    Click image for larger version

Name:	20200613_162151.jpg
Views:	154
Size:	889.2 KB
ID:	1272435

    Needs a little more scrubbing on the subframe to get the rest of that factory goo off. I suppose I'll paint the engin compartment too while I'm at it. I wasn't going to but what the hell.
    Click image for larger version

Name:	20200613_175903.jpg
Views:	144
Size:	1.05 MB
ID:	1272436


    Naturally it started raining once I moved it outside.
    Click image for larger version

Name:	20200614_142226.jpg
Views:	141
Size:	982.2 KB
ID:	1272437


    Did I mention the car has a hitch? It's like it's whispering ,"Take me to drag week..."
    Click image for larger version

Name:	20200613_151408.jpg
Views:	144
Size:	676.0 KB
ID:	1272439


    Factory wussy exhaust will not harm anyone ever again.
    Click image for larger version

Name:	20200613_151520.jpg
Views:	141
Size:	704.6 KB
ID:	1272438



    Leave a comment:


  • Skeptical
    replied
    Originally posted by ejs262 View Post
    3d printers are awesome! I need to finish putting mine together so I can start prototyping stuff. I've drawn up intake manifolds, shifters, brake caliper adapters, and all sorts of other stuff. My plan is to use my printer to develop molds to sand cast parts with, for parts that need more durability than a printer can typically provide.
    Casting is on the list of things to try too! You'll have to share some of the things you make once you get your printer going.

    Leave a comment:


  • ejs262
    replied
    3d printers are awesome! I need to finish putting mine together so I can start prototyping stuff. I've drawn up intake manifolds, shifters, brake caliper adapters, and all sorts of other stuff. My plan is to use my printer to develop molds to sand cast parts with, for parts that need more durability than a printer can typically provide.

    Leave a comment:


  • Skeptical
    replied
    Got the heads resurfaced the other day. More for piece of mind so I wouldn't sit up at night wondering if should have done it. i also got a spare intake and exhaust valve to take some measurements on. these aftermarket stock replacement valves are crappy when it comes to flow. I'll take some side by side pics. they don't do the back cut on them like the factories. I am surprised at the margin on the intake valve. It's so tiny. I still need to grind the seats then start putting them back together. Then it will be on to the transmission build.

    Must... resist.... urge.... to... port........

    Click image for larger version

Name:	20200612_195151.jpg
Views:	187
Size:	877.8 KB
ID:	1272187

    4 inch downpipe technically fits but 3.5 is probably what I'm going to use. That will give enough room for the wrap and thermal stuff to work properly.

    Click image for larger version

Name:	20200608_190719.jpg
Views:	178
Size:	909.7 KB
ID:	1272188

    Got some transmission ports in. I ordered the 37 tooth gear and for some reason they sent me two and a stock input shaft. Weird.... I also got the supposedly stronger input shaft, pump drive and 33 tooth driven gear. That should keep me at the 2.93 final drive ratio but with the single chain instead of the two smaller ones.

    Click image for larger version

Name:	20200612_200714.jpg
Views:	178
Size:	839.6 KB
ID:	1272189



    Leave a comment:


  • Skeptical
    replied
    Originally posted by SuperBuickGuy View Post
    I've struggled to find a drafting program that makes sense to me.... most have this very steep learning curve or start somewhere where it makes little sense (e.g. "how to save your files" - 5 videos in, I still can't draw a line but lord if I ever do, I can save it in 20 different ways)....
    Sounds about right. Most of my time was spent trying to put a hole in a cylinder. Every video showed a different way that i couldn't get to work. Eventually I found that you had to be in a certain "Workbench" and have certain things activated (Which does make sense) to get the ability to poke a hole in stuff. I'll get the hang of it. Maybe i should make some videos once I figure it out and try to relay that information to people like us. you'll learn a 21st way of how to save a file that way.

    Leave a comment:


  • SuperBuickGuy
    replied
    I've struggled to find a drafting program that makes sense to me.... most have this very steep learning curve or start somewhere where it makes little sense (e.g. "how to save your files" - 5 videos in, I still can't draw a line but lord if I ever do, I can save it in 20 different ways)....

    Leave a comment:


  • Skeptical
    replied
    Have tools, will make stuff. I needed some plugs to seal up the transmission... So I drew some up and printed them out. I really need to start using CAD more often so I can get efficient at it (that was why I bought the printer after all). It took me a little over an hour of fumbling around through tutorials and piecing together what I needed to do. I'll be happy when simple designs like this take me 5-10 minutes.



    Click image for larger version

Name:	20200610_152528.jpg
Views:	201
Size:	414.0 KB
ID:	1272109

    Leave a comment:
